Core Plus Backlit Panel Light

£30.00 GBP

~~£51.99 GBP~~ £30.00 GBP

Sale Sold out

Taxes included.

Backlit LED Recessed 600x600 slim panel

Description

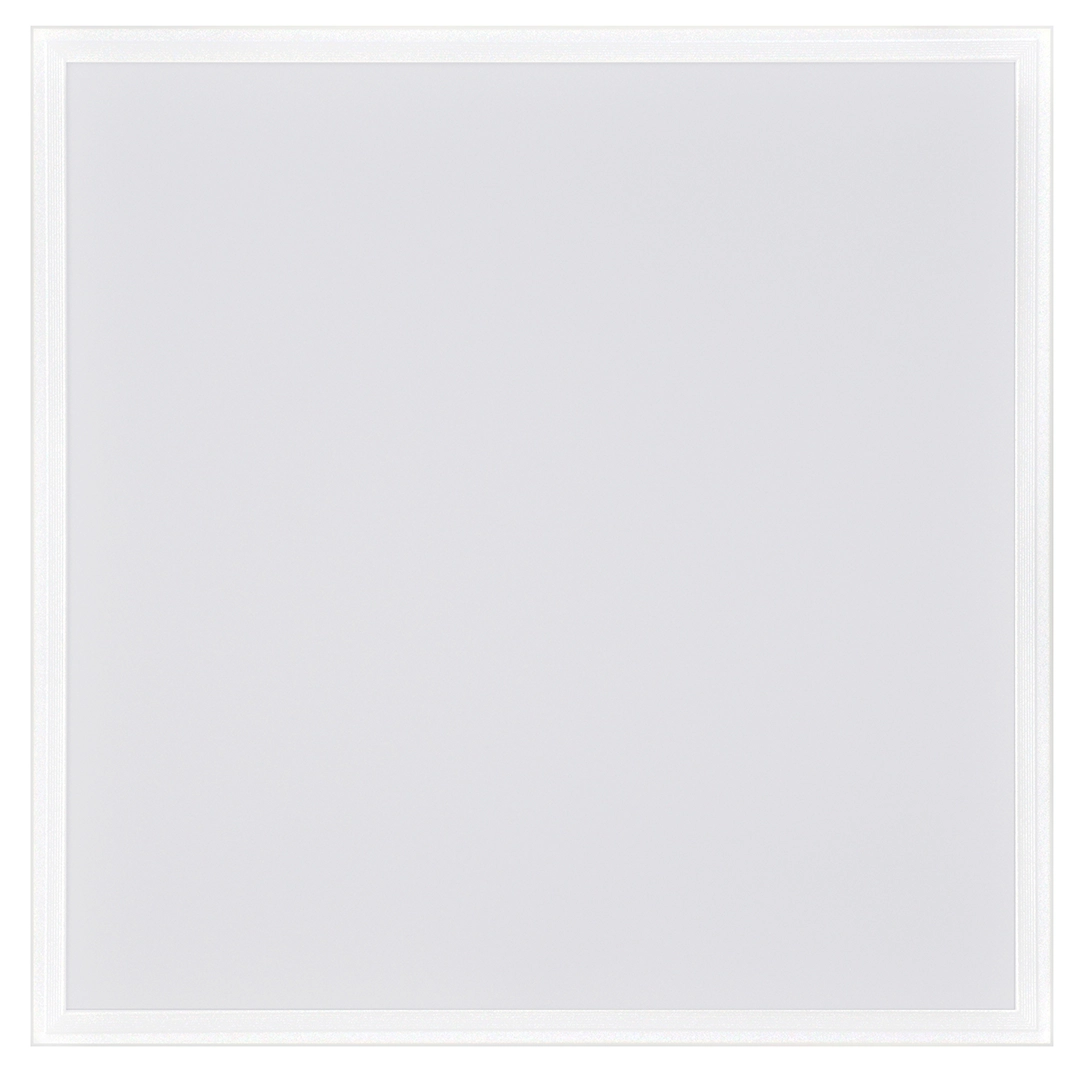

Backlit aluminium panel light in white
Flicker free to minimize eye fatigue
Solutions for T-grid, solid, plasterboard and burgess/metal pan ceilings

For full product specification, see specification details below.

Select Diffuser Material PMMA

Select Colour Temperature 4000K 5000K

Select Wattage 24W 32W

Looking to further customise this product? Speak to a lighting designer.

Free Shipping on orders over £100
30-day Return Policy

View full details

Specifications

Light Source Information : Direct light output · LED output of 24W delivering 2532 lumens, 32W delivering 3362 lm or 45W delivering 4750 lumens · Efficacy of up to 105lm/W · External drivers supplied · >83 colour rendering index · Colour Temperatures of 4000K or 5000K · LEDs with a ≤6 step Macadam ellipse tolerance
Design : Backlit for increased uniformity · White frame · IP40 Rated · Flicker free to reduce eyestrain
Mounting Options : Lay in grid ceiling · Suspended – 4 Point suspension (RE01), Y suspension (RE06) · Burgess/metal pan ceiling – Burgess Clips (RE10) · Solid ceiling – Surface Frame (RE60) · Plasterboard ceiling – Surface Frame (RE60), Core-Verve Point suspension (RE36)
Optics : Opal PMMA diffuser
Dimming : Non-dimmable as standard · Mains / DALI / 0-10V / DSI dimming available
Controls : CP Sensor · Customised solution
Miscellaneous : 3hr Emergency available · DALI addressable panel emergency pack · Z10 remote control manual or advanced self-test emergency available · 5 year warranty
To specify state : Recessed backlit LED 600mm x 600mm panel luminaire with aluminium body and an opal diffuser for general, circulation and feature areas. Suitable for lay in exposed T ceilings and other installation options – as Your Lights' Core Plus Panel.
Accessories Available: A range of accessories to cover almost any installation scenario

Size

Downloads

📄 DOWNLOAD DATASHEET

Delivery and Returns

Delivery: 1 - 2 weeks depending on customisation required. Return: We have a 30-day return policy. Please see our return policy for more information.
