Titan IP65 Non Corrosive Linear batten

Titan IP65 Non Corrosive Linear batten

£40.00 GBP
£40.00 GBP
Sale Sold out
Taxes included.

Key Benefits

  • IP65 Non-Corrosive for Harsh Environments - Sealed against water, dust and corrosion for car parks, food processing, warehouses and utility areas.
  • 12W to 80W Delivering Up to 12800 Lumens - Wide output range from single fittings for corridors up to full warehouse aisle coverage.
  • Up to 160 Lumens per Watt Efficacy - High efficiency 4000K neutral white light keeps running costs low over the 70,000 hour L70 lifespan.

For full product specification, see specification details below.

Select Length & Wattage

Looking to further customise this product? Speak to a lighting designer.

  • Free Shipping on orders over £100
  • 30-day Return Policy

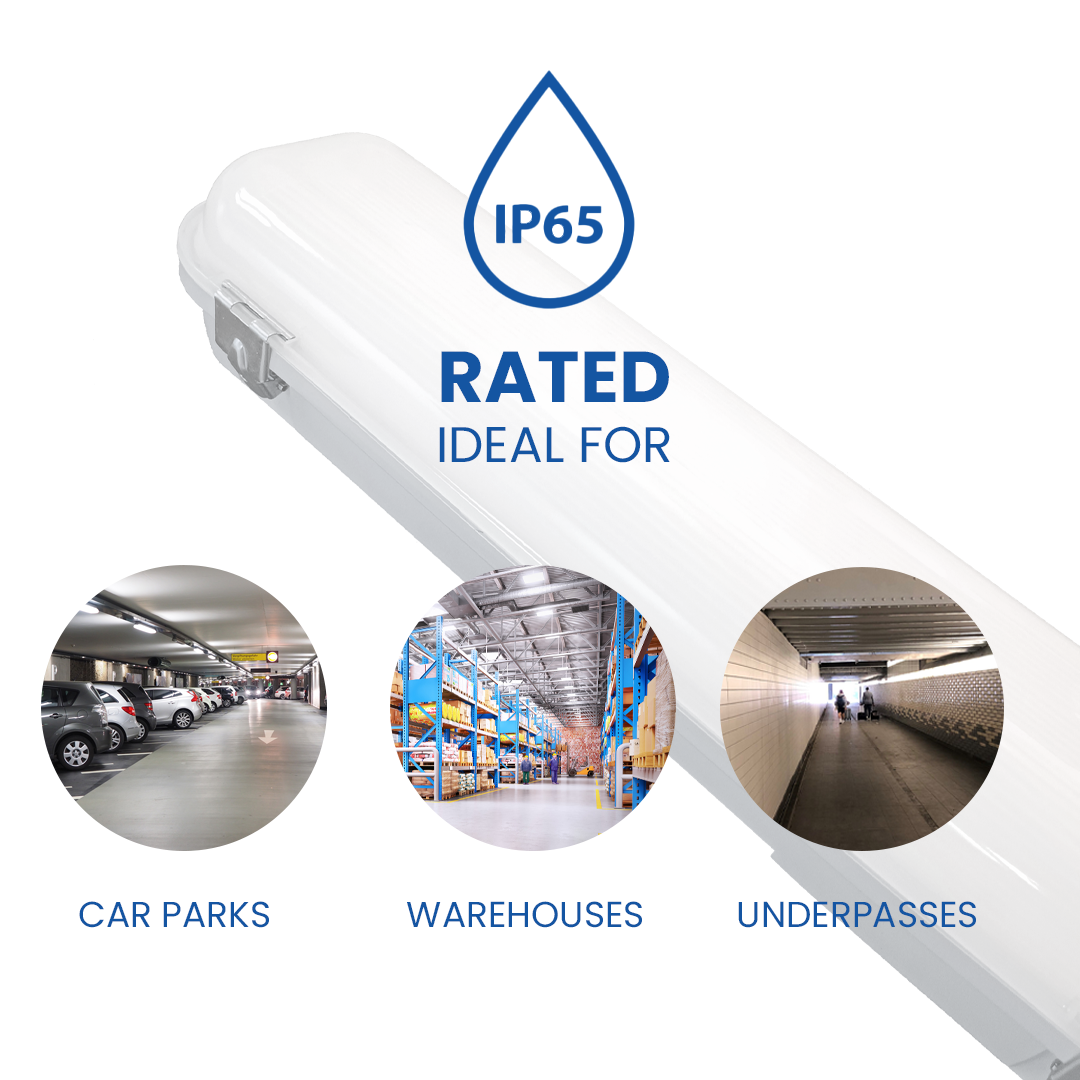

Ideal for car parks, warehouses and underpasses.

  • Available in 4000K

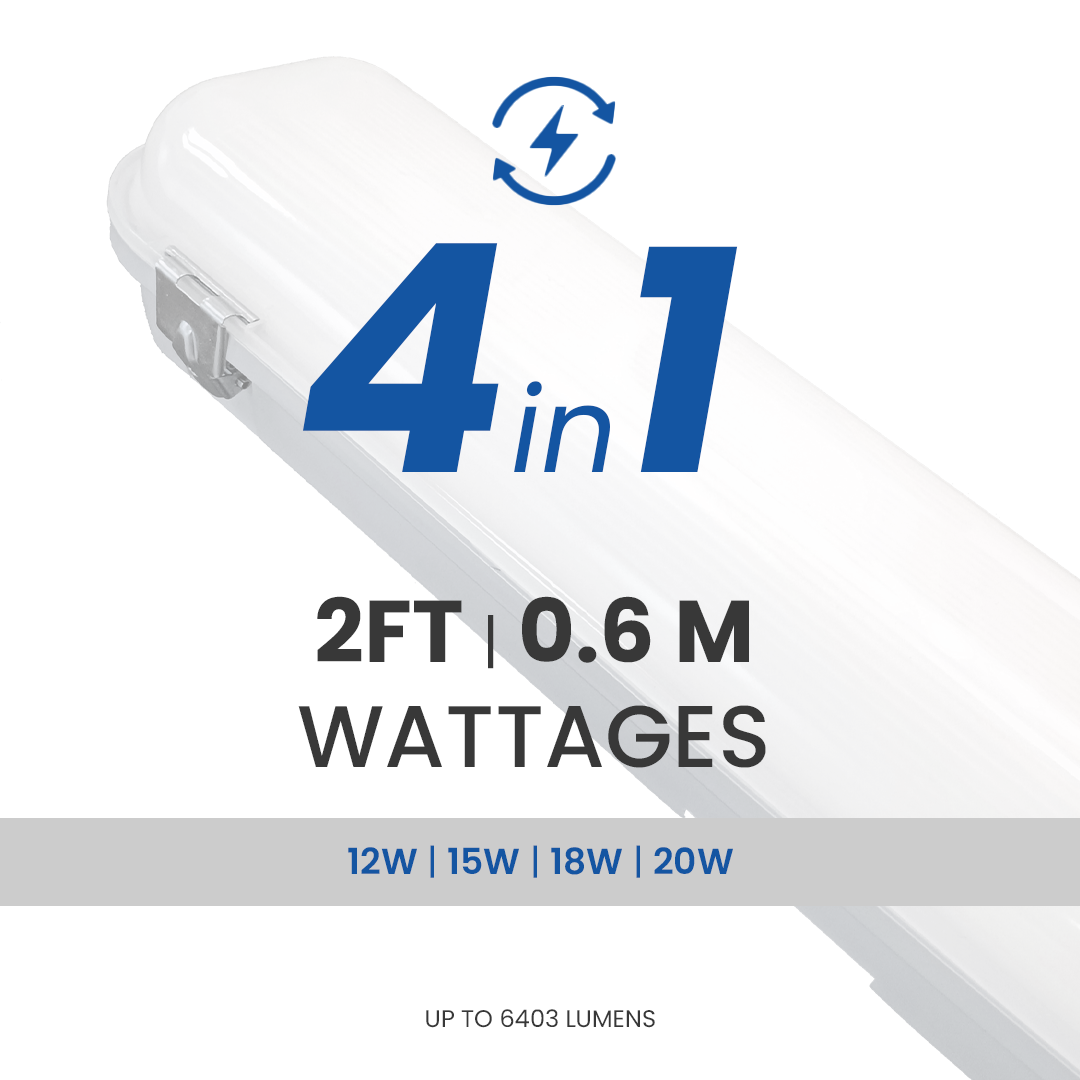

  • Switchable Wattage : 12W to 80W delivering up to 12800 lumens

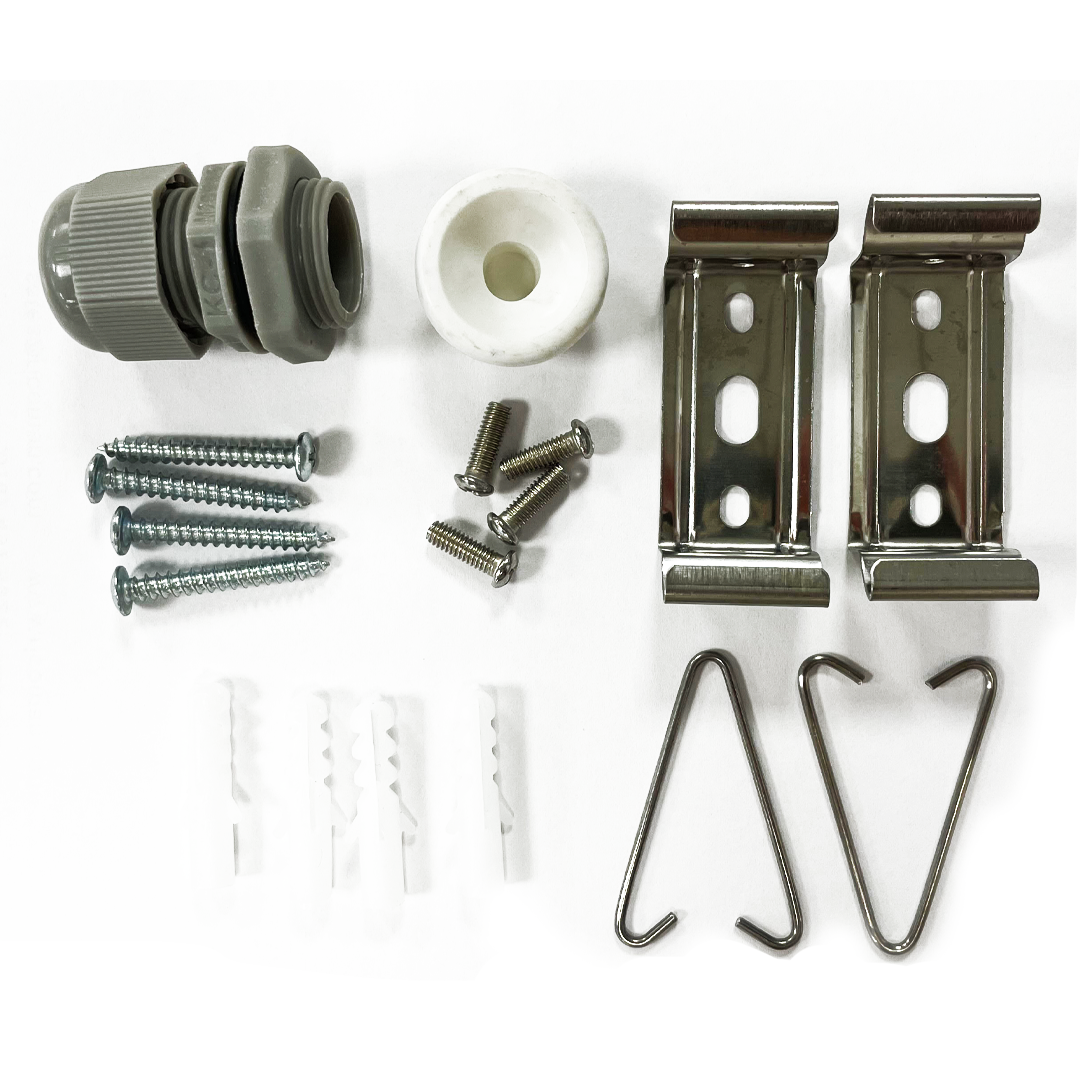

  • Surface mounting brackets and 20mm IP65 cable gland included

View full details

Specifications
  • Light Source Information : Direct light output · LED outputs available up to 12800 lumens (from 12W to 80W) · Efficiency of up to 160lm/W · Internal Drivers supplied · >80 colour rendering index · Colour Temperature 4000K · L70 B50 = 70,000 hours | L90 B50 = 25,000 hours · Epistar LEDs with a ≤4 step Macadam ellipse tolerance

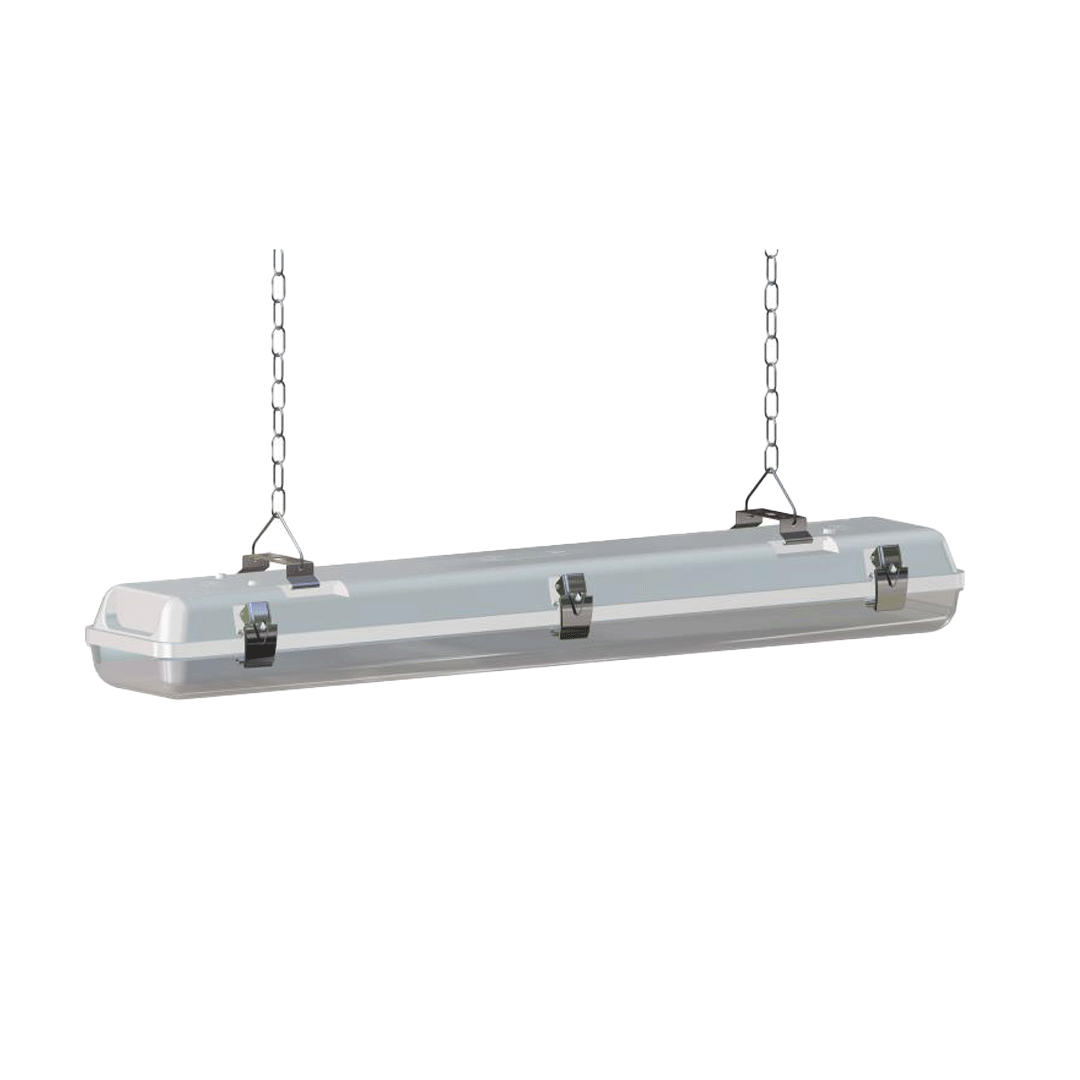

  • Design : IK08 impact resistant · Anti-Corrosive · IP65 Rated · Ceiling Suspended or surface-mounted · Available in 4 linear sizes 660mm, 1268mm, 1567mm and 1867mm . Tool-less access with a twist lock gear tray mechanism . Base of the housing is entirely free for ease of installation and tool-less access with a twist lock gear tray mechanism . Hinged diffuser for ease of installation. . Gear tray suspension wire.
  • Optics : TP(a) opal diffuser
  • Installation : Pre-wired with flex for quick and simple installation
  • Controls : Microwave Sensor Option · CP Sensor · Customised solution
  • Integral Emergency : 3hr Emergency available · DALI addressable emergency · Z10 remote control manual or advanced self-test emergency available
  • Polycarbonate anti-corrosive body
  • TP(a) rated diffuser
  • Optional integrated sensor options
  • Pre-wired with flex
  • Excellent efficacy of 160 lumens per watt

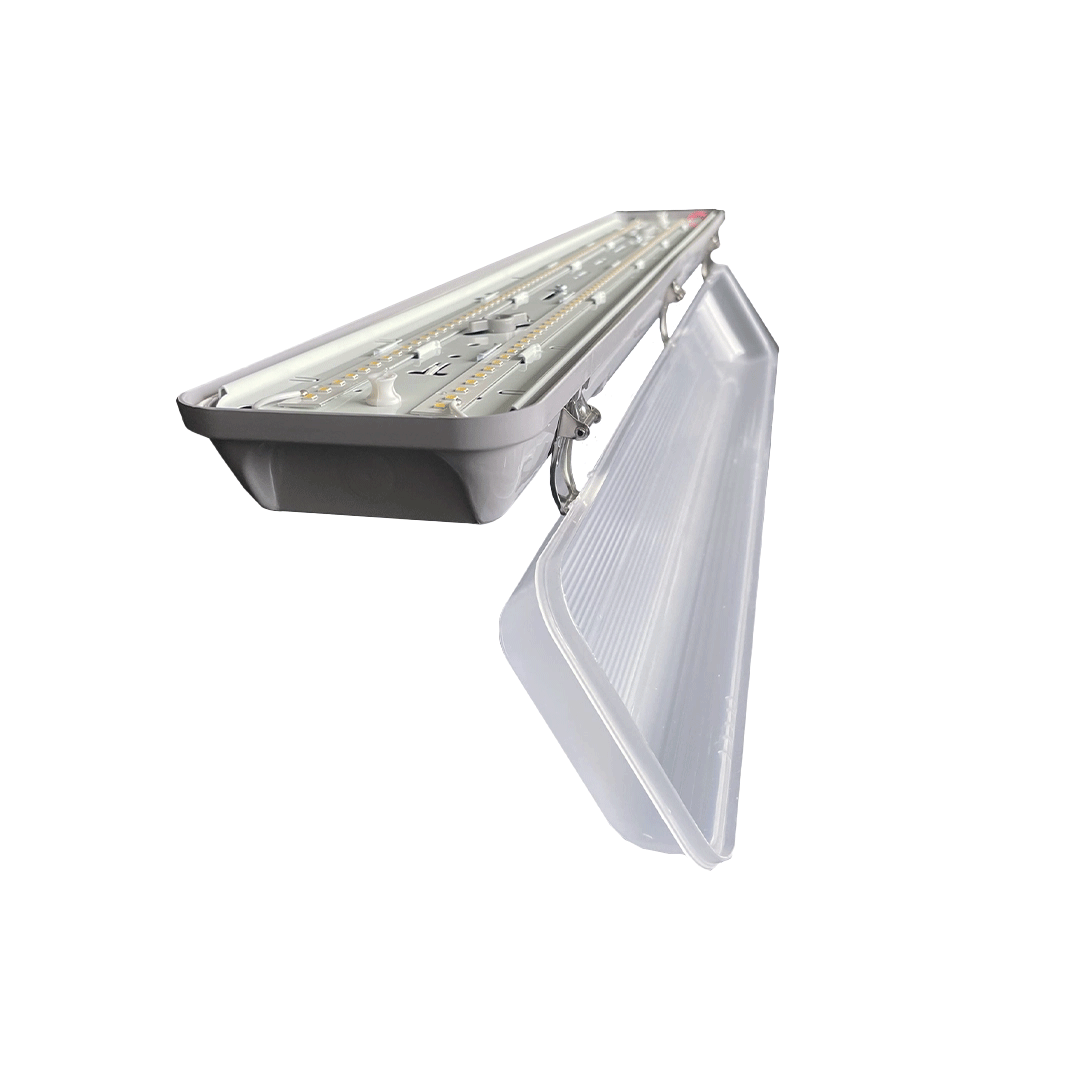

  • Base of the housing is entirely free for ease of installation and tool-less access with a twist lock gear tray mechanism
  • Integral Emergency options available: Standard | DALI | Remote control testing
  • To specify state : Polycarbonate, non-corrosive linear lighting with an outstanding optical performance. Tpa rated as standard with optional 3 hour emergency, and sensor options. IK08 impact resistant and IP65 ingress protection – as Your Lights' Titan range.

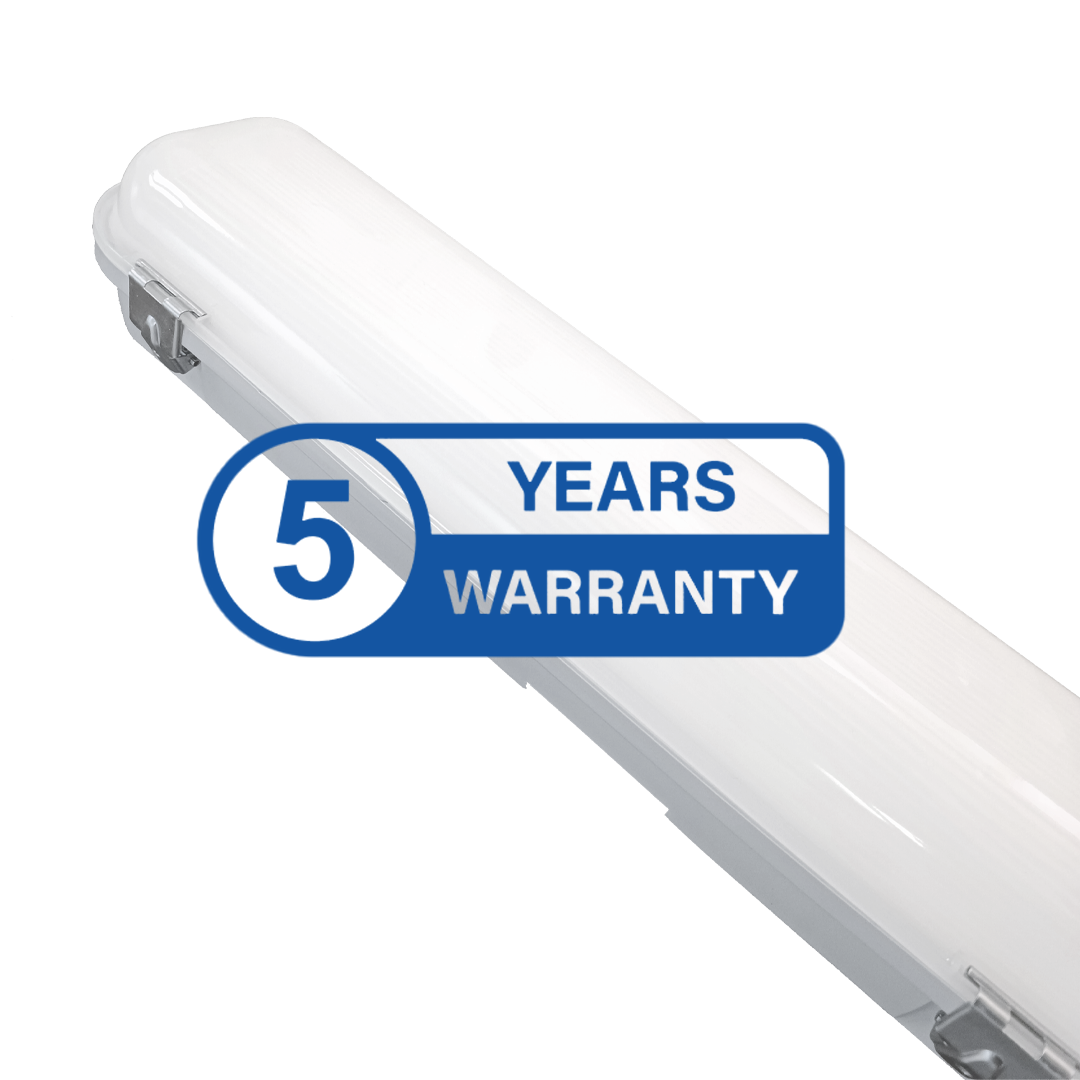

  • Warranty: 5 years | Emergency Warranty: 3 years

Size
Four lengths, 0.6m, 1.2m, 1.5m and 1.8m

Downloads
📄 DOWNLOAD DATASHEET

Delivery and Returns
Delivery: 1 - 2 weeks depending on customisation required. Return: We have a 30-day return policy. Please see our return policy for more information.
