Ultra Slim R-Series Downlight
Ultra Slim R-Series Downlight
Key Benefits
- Sub-30mm Deep for Low-Void Ceilings - Ultra-slim design fits into shallow ceilings where standard recessed downlights would not.
- Five Wattage Options from 8W to 23W - Delivers up to 2595 lumens at 112 lumens per watt for kitchens, bathrooms, hallways and living spaces.
- IP54 Rated with 3000K, 4000K or 6000K - Splash-proof rating suits bathrooms and utility areas, with warm, neutral or daylight colour options.
For full product specification, see specification details below.
Couldn't load pickup availability
Looking to further customise this product? Speak to a lighting designer.
- Free Shipping on orders over £100
- 30-day Return Policy
Ideal for low ceiling voids, perfect for achieving a clean finish in any environment
Description
- Slim design with 28mm low profile
- Backlit for increased uniformity and efficacy
- 3000K | 4000K
Collapsible content
Specifications
- Light Source Information : Direct light output · 8W | 11W | 15W | 18W | 23W delivering up to 2595lm · Efficacy of up to 112lm/W · Drivers supplied · >82 colour rendering index · Colour Temperature options of 3000K, 4000K and 6000K · L70 B50 = 70,000 hours | L90 B50 = 25,000 hours · Epistar LEDs with a ≤4 step Macadam ellipse tolerance

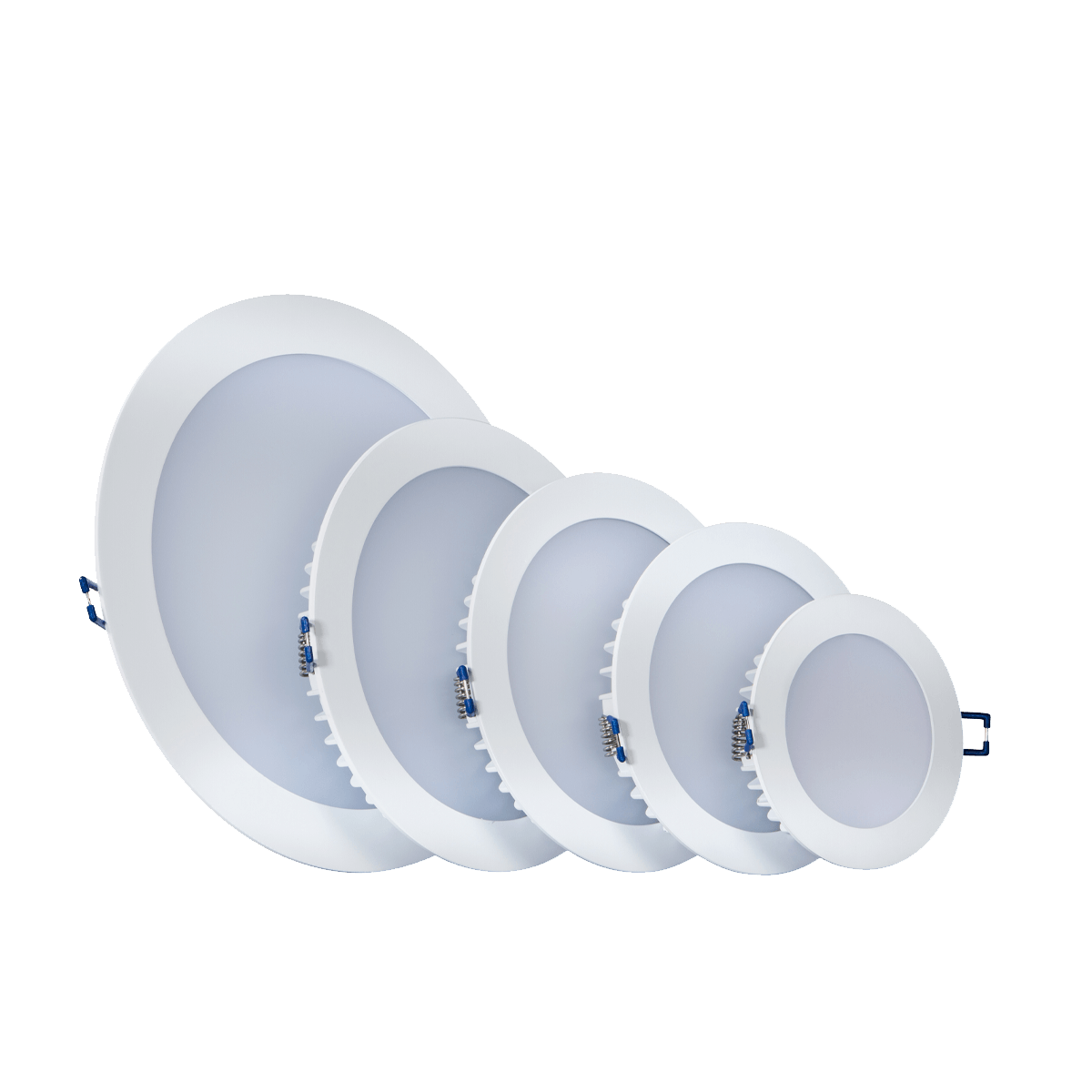

- Design : White bezel · Slim design with 28mm low profile · IP54 rated · Various sizes – 110mm, 140mm, 160mm, 180mm and 230mm · Cut out extension ring available to cover gaps in oversized cutouts · IK09 impact resistant · Ceiling recess mounted · Backlit for increased uniformity and efficacy
- Cutout : 8W = ø95mm · 11W = ø125mm · 15W = ø140mm · 18W = ø160mm · 23W = ø200mm (cut out extension ring available 250-270mm)
- Optics : Opal diffuser · Optional TP(a) rated diffuser
- Dimming : Mains dimmable or non dimmable as standard · DALI 0-10V, DSI dimming available
- Miscellaneous : 3hr emergency available · DALI Addressable emergency available · Z10 remote control manual or advanced self-test emergency available · Antimicrobial coating available
- To specify state : Recessed IP54 LED downlighter with cast aluminium body, white aluminium bezel and low profile. Available in 8W, 11W, 15W, 18W and 23W versions with colour temperature options of 3000K, 4000K, and 6000K. Dimmable or non dimmable driver included as standard – as Your Lights' Ultra Slim R-Series range.
- Warranty: 5 years | Emergency Warranty: 3 years
Size
Downloads
Delivery and Returns
Product FAQs
What is a slim downlight and why does the depth matter?
A slim downlight is a recessed fitting with a shallow body depth, designed for ceilings with limited void space behind them. The Ultra Slim R-Series has a body depth of just 28mm, which makes it suitable for ceilings, partition walls, and modular construction systems where deeper fittings would not physically fit.
What sizes and wattages does the Ultra Slim R-Series cover?
The Ultra Slim R-Series is available in five wattages (8W, 11W, 15W, 18W and 23W) delivering up to 2,595 lumens, with bezel sizes from 110mm to 230mm and cut-outs from 95mm to 200mm. A cut-out extension ring is available to cover gaps up to 250-270mm, making it well suited to refurbishment projects with oversized legacy cut-outs.
What protection and emergency options are available?
Your Lights' Ultra Slim R-Series is IP54 rated and IK09 impact resistant, making it suitable for bathrooms, kitchens, communal areas, and corridors. 3-hour emergency, DALI addressable emergency, Z10 remote control self-test emergency, and an antimicrobial coating are all available, with mains, DALI, 0-10V and DSI dimming options for full control integration.
