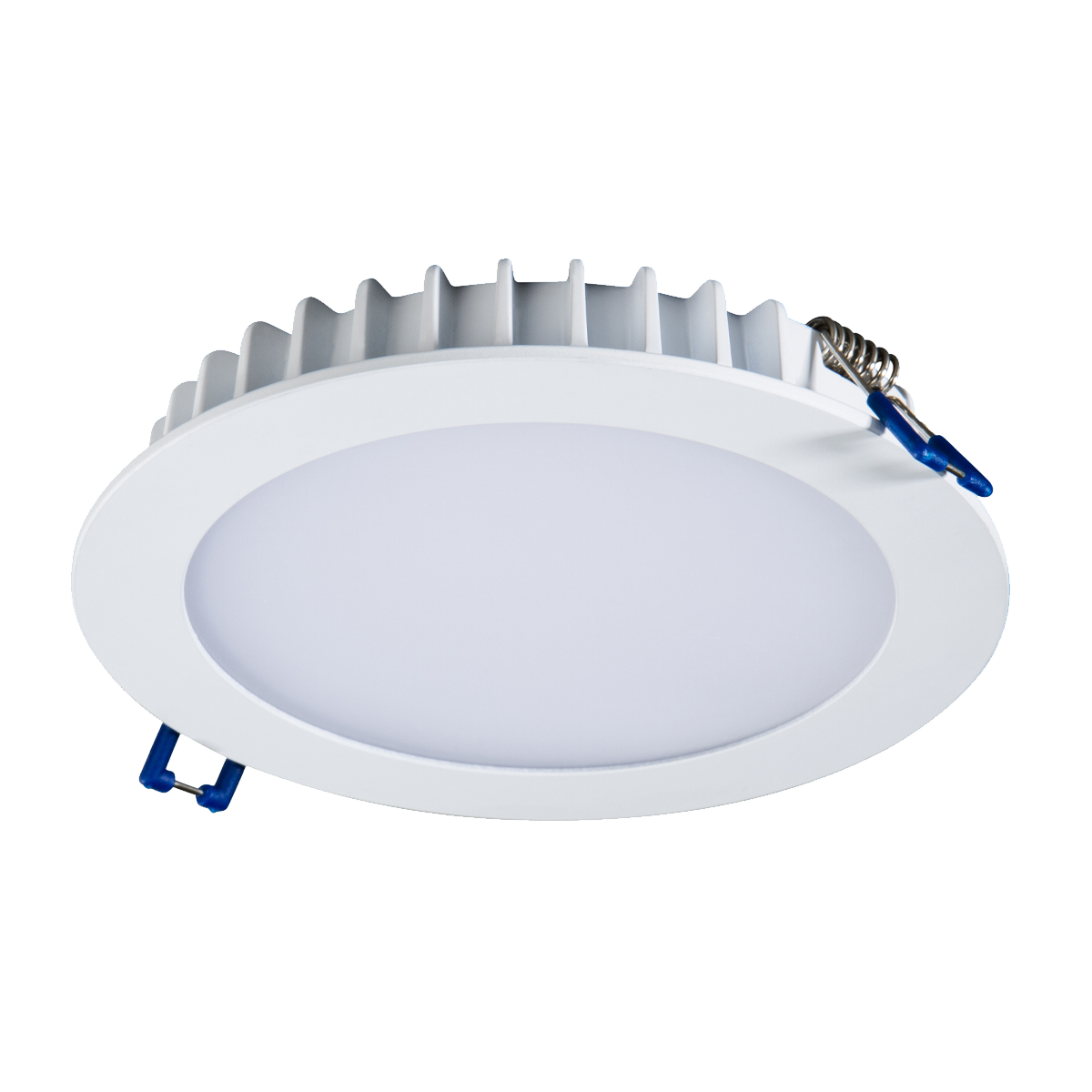

Slim Round Downlight
Description

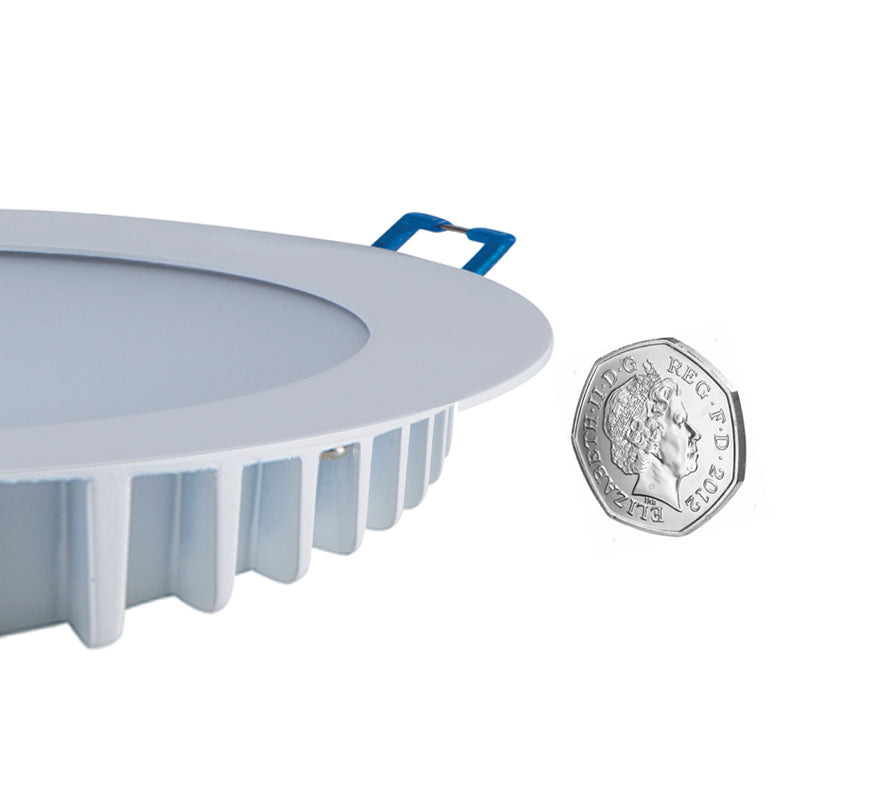

- Low profile, less than 30 mm deep
- 8W | 11W | 15W | 18W | 23W
- 3000K | 4000K| 6000K
- Delivering up to 2595 lumens, efficacy up to 112 lm/w
- Mains dimmable or non dimmable as standard
- DALI, 0-10V and DSI dimming options available
- IP54 rated, suitable for kitchen and bathroom areas
- IK09 rated, ideal for schools and colleges
- Option for a TP(a) diffuser as an add-on

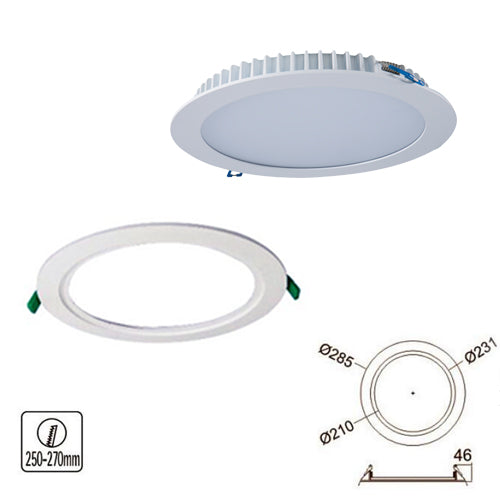

- Cut out extension ring available on the 23W version
- Epistar LEDs with a ≤4 step Macadam ellipse tolerance
- Emergency options available: Standard | DALI | Remote control testing
- Also available in square shape
Looking to further customize this product? Speak to a Lighting Consultant
- Free Shipping on orders over £100
- Delivery in 1-2 weeks
- 30-day Return Policy
Quantity
Couldn't load pickup availability
Collapsible content
Specifications
- Light Source Information : Direct light output · 8W | 11W | 15W | 18W | 23W delivering up to 2595lm · Efficacy of up to 112lm/W · Drivers supplied · >82 colour rendering index · Colour Temperature options of 3000K, 4000K and 6000K · L70 B50 = 70,000 hours | L90 B50 = 25,000 hours · Epistar LEDs with a ≤4 step Macadam ellipse tolerance

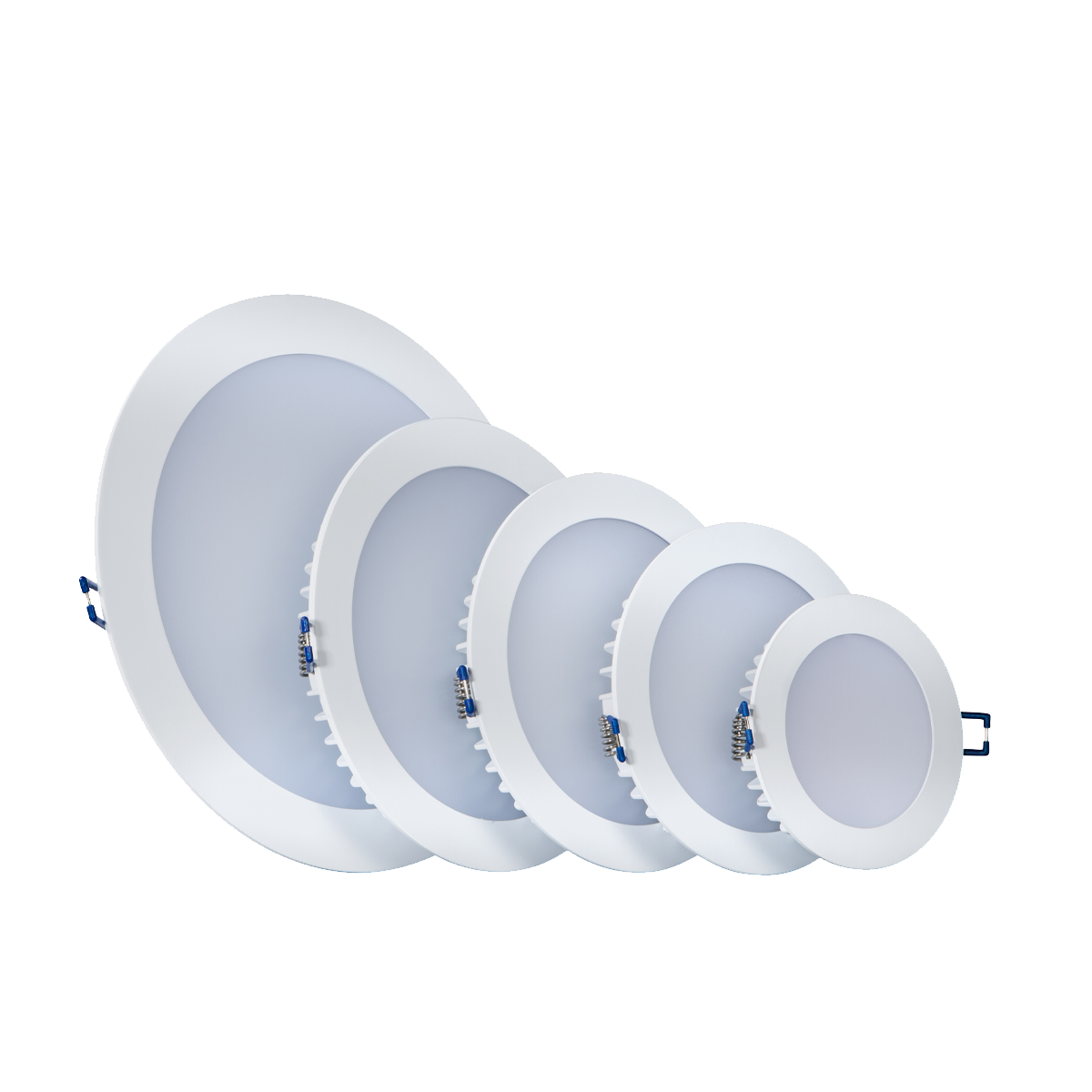

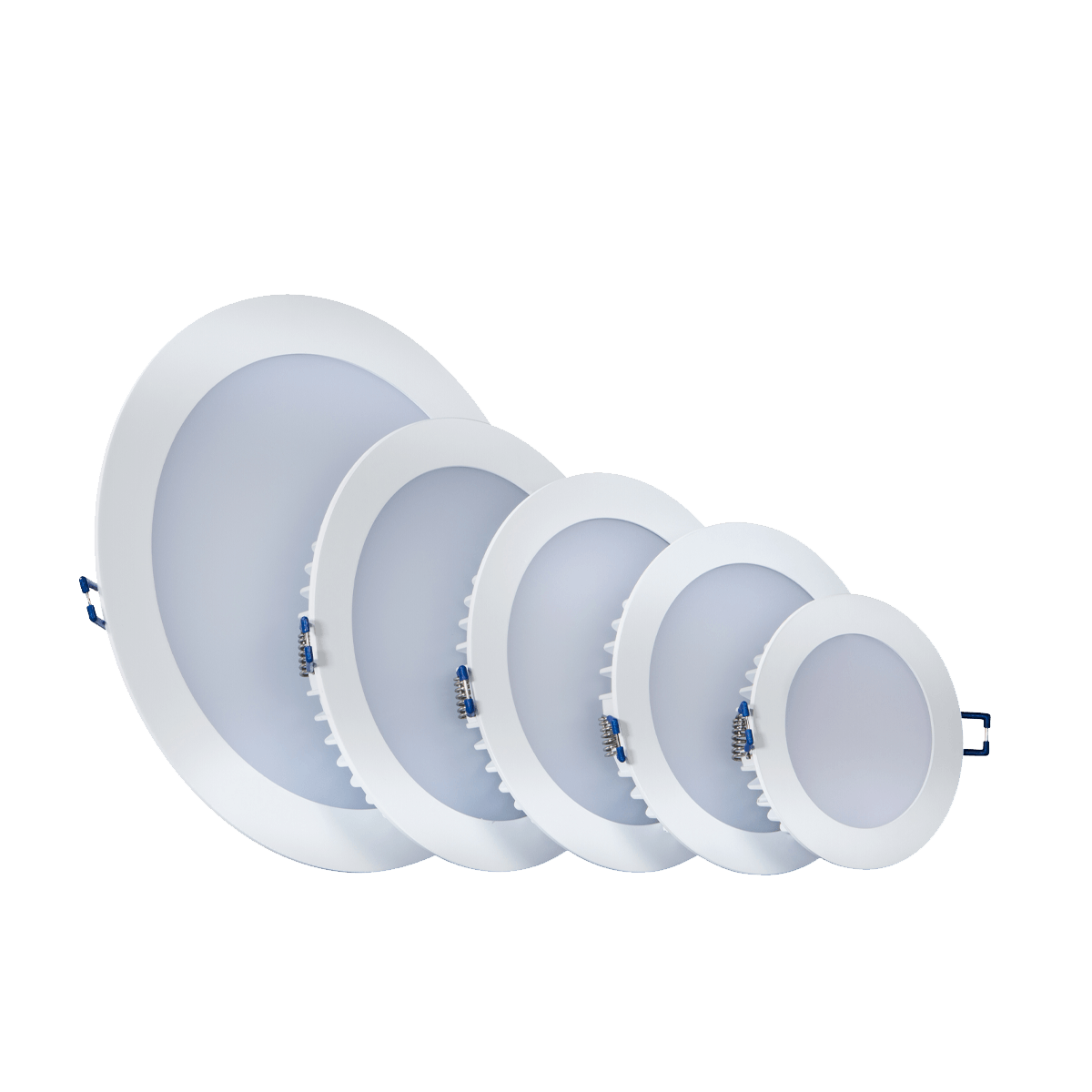

- Design : White bezel · Slim design with 28mm low profile · IP54 rated · Various sizes – 110mm, 140mm, 160mm, 180mm and 230mm · Cut out extension ring available to cover gaps in oversized cutouts · IK09 impact resistant · Ceiling recess mounted · Backlit for increased uniformity and efficacy
- Cutout : 8W = ø95mm · 11W = ø125mm · 15W = ø140mm · 18W = ø160mm · 23W = ø200mm (cut out extension ring available 250-270mm)
- Optics : Opal diffuser · Optional TP(a) rated diffuser
- Dimming : Mains dimmable or non dimmable as standard · DALI 0-10V, DSI dimming available
- Miscellaneous : 3hr emergency available · DALI Addressable emergency available · Z10 remote control manual or advanced self-test emergency available · Antimicrobial coating available · 5 year warranty
- To specify state : Recessed IP54 LED downlighter with cast aluminium body, white aluminium bezel and low profile. Available in 8W, 11W, 15W, 18W and 23W versions with colour temperature options of 3000K, 4000K, and 6000K. Dimmable or non dimmable driver included as standard – as Your Lights' Ultra Slim R-Series range.
