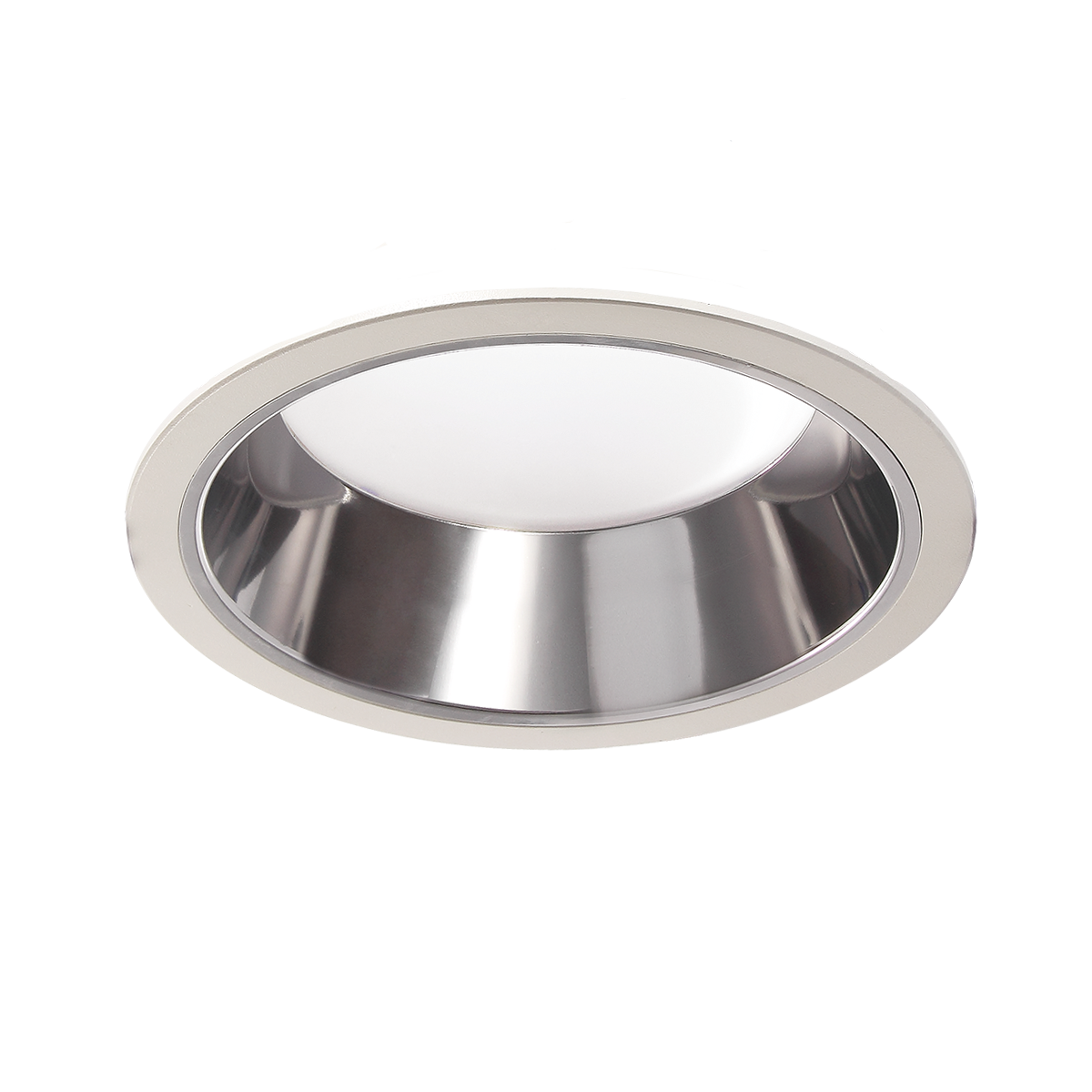

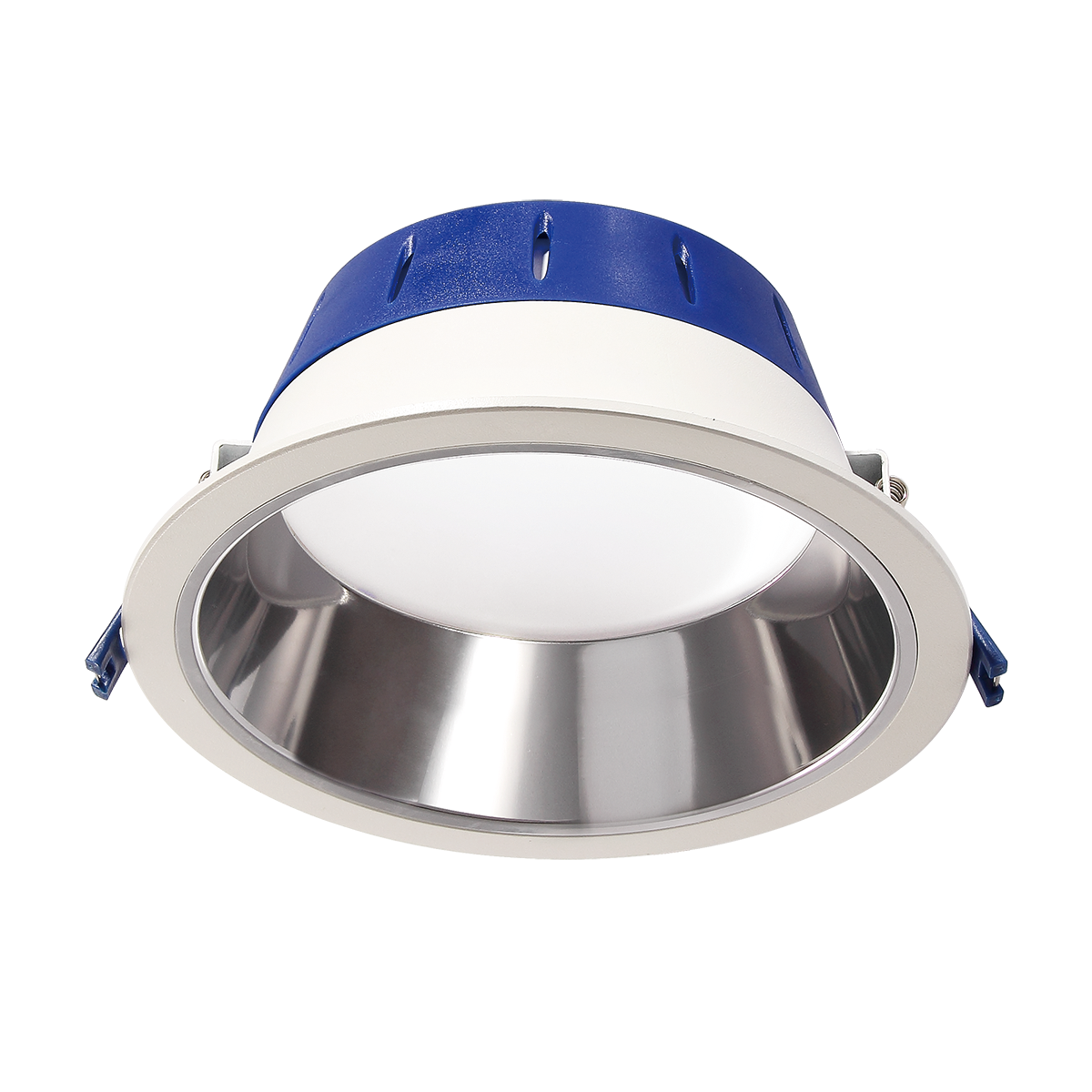

A Cost And Energy Efficient PI Downlight Replacement Designed To Reduce Glare And Suit A Variety Of Applications.
Description
- Aluminium body ensuring excellent thermal control
- 12W | 15W | 18W | 23W
- 3000K | 4000K
- Cut out extension ring available on the 23W version
- CRI> 85 Ra
- Dimming options available
- Emergency options available: Standard | DALI | Remote control testing
- L70 B50 = 70,000 hours | L90 B50 = 25,000 hours
- Epistar LEDs with a ≤4 step Macadam ellipse tolerance
- Recessed light source and opaque diffuser to reduce glare
Looking to further customize this product? Speak to a Lighting Consultant
- Free Shipping on orders over £100
- Delivery in 1-2 weeks
- 30-day Return Policy
Quantity
Couldn't load pickup availability
Collapsible content
Specifications
- Light Source Information : Direct light output · 12W | 15W | 18W | 23W delivering up to 2420lm · Efficacy of up to 106lm/W · Drivers supplied · >85 colour rendering index · Colour Temperature options of 3000K and 4000K · L70 B50 = 70,000 hours | L90 B50 = 25,000 hours · Epistar LEDs with a ≤4 step Macadam ellipse tolerance
- Design : White bezel · IP20 rated · Various sizes – 145mm, 160mm, 165mm and 200mm · Cut out extension ring available to cover gaps in oversized cutouts · IK05 impact resistant · Ceiling recess mounted
- Cutout : 12W = ø130mm · 15W = ø140mm · 18W = ø165mm · 23W = ø200mm (cut out extension ring available 250-270mm)
- Optics : Opal TP(b) rated polystyrene diffuser · Recessed light source to control glare
- Dimming : Non dimmable as standard · Mains, DALI 0-10V, DSI dimming available
- Miscellaneous : 3hr emergency available · DALI Addressable emergency available · Z10 remote control manual or advanced self-test emergency available · 5 year warranty
- To specify state : Recessed LED downlighter with robust aluminium body ensuring excellent thermal control. Ideal PL downlight replacement – as Your Lights' Carina range.
