Your Lights

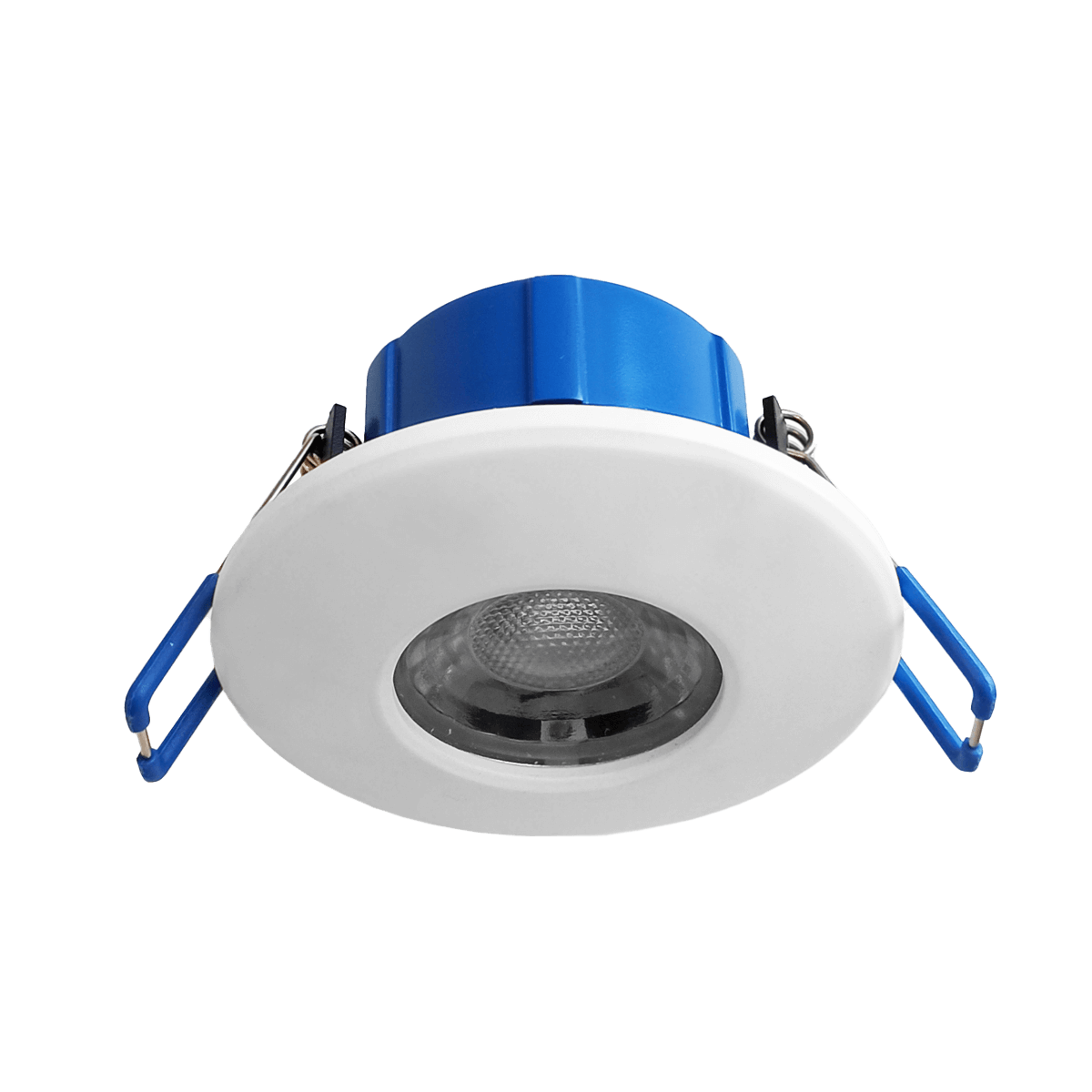

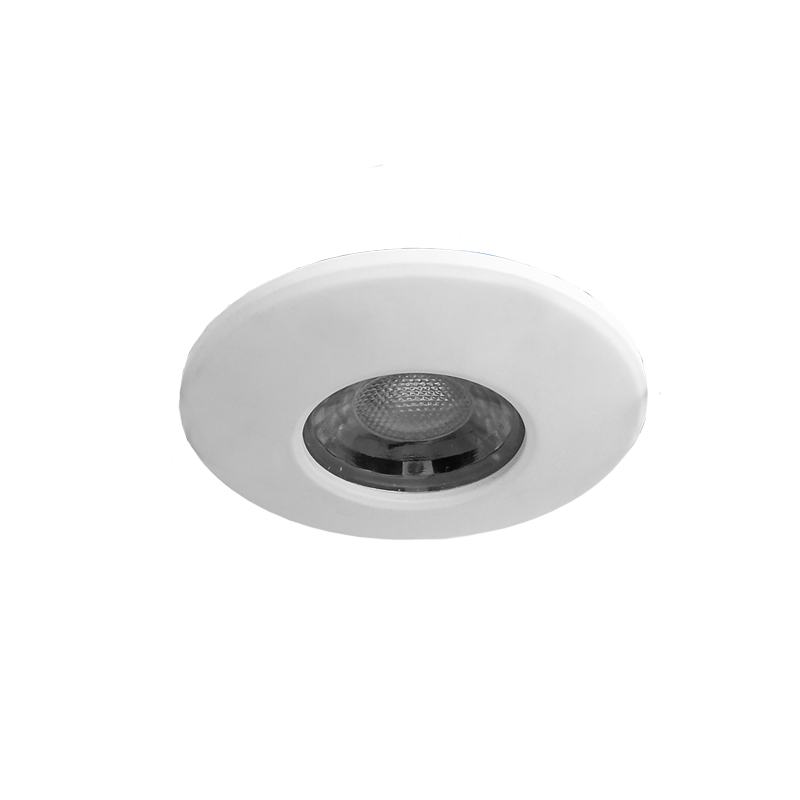

Core Downlight
Core Downlight
Regular price
£0.00 GBP
Regular price
Sale price
£0.00 GBP
Unit price
per
Taxes included.
I-joist Fire Rated Downlight
Description
- 30/60/90 min fire rated for solid and I-joist ceilings
- Switchable colour temperature 3000K or 4000K
- High ingress protection (IP65 front, IP54 back)
- Mains dimmable integrated driver
- Extensively tested with I-joist ceilings
- Shallow 53mm depth
- Quick push fit connector block
- Easy to switch colour temperature via a switch behind the bezel
- 6W delivering ~600 lumens
- TP(a) rated polycarbonate diffuser
- White bezel as standard
- Black | Polished Chrome | Brushed Chrome bezels options
Looking to further customize this product? Speak to a Lighting Consultant
- Free Shipping on orders over £100
- Delivery in 1-2 weeks
- 30-day Return Policy
Quantity
Couldn't load pickup availability
Collapsible content
Specifications
- Light Source Information : Direct light output · 6W delivering ~600 lm at 4000K · Efficacy of ~100lm/W · Integral driver · >80 colour rendering index · Switchable white 3000K| 4000K via switch behind the bezel · Fixed colour temperature 3000K or 4000K · L70 B50 = 100,000 hours | L90 B50 = 42,000 hours · ≤4 step Macadam ellipse tolerance
- Design : Polycarbonate body · IP65 rated (front) /IP54 (back) · Recessed mounting · 30/60/90 min fire rated for solid and I-joist celings
- Cutout : ø70mm
- Optics : Polycarbonate TP(a) rated diffuser · Bezel finish: white as standard · Add on bezels: black| polished chrome | brushed chrome · Beam angle: 60 degrees
- Electrical : 6A Type B breaker – 200 downlights · 10A Type B breaker – 350 downlights
- Dimming : Mains dimmable integrated driver
- Miscellaneous : 5 year warranty
- To specify state : 6W interior LED fire rated downlight tested with I-joist celings. Switchable 3000K or 4000K via a dip switch at the front (behind bezel). Featuring an integrated dimmable driver. White as standard with chrome or brushed chrome bezel options– as Your Lights' Core Downlight.
