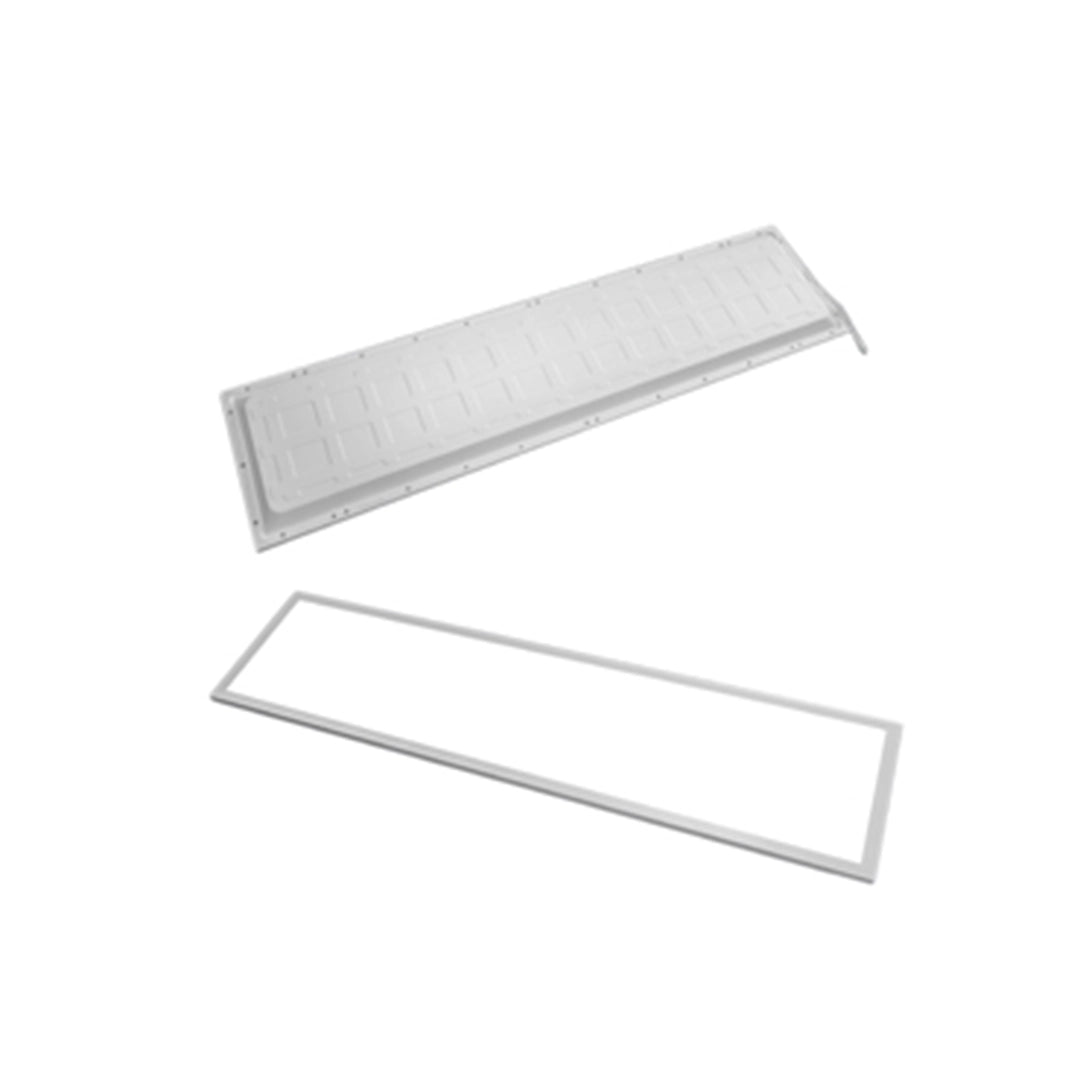

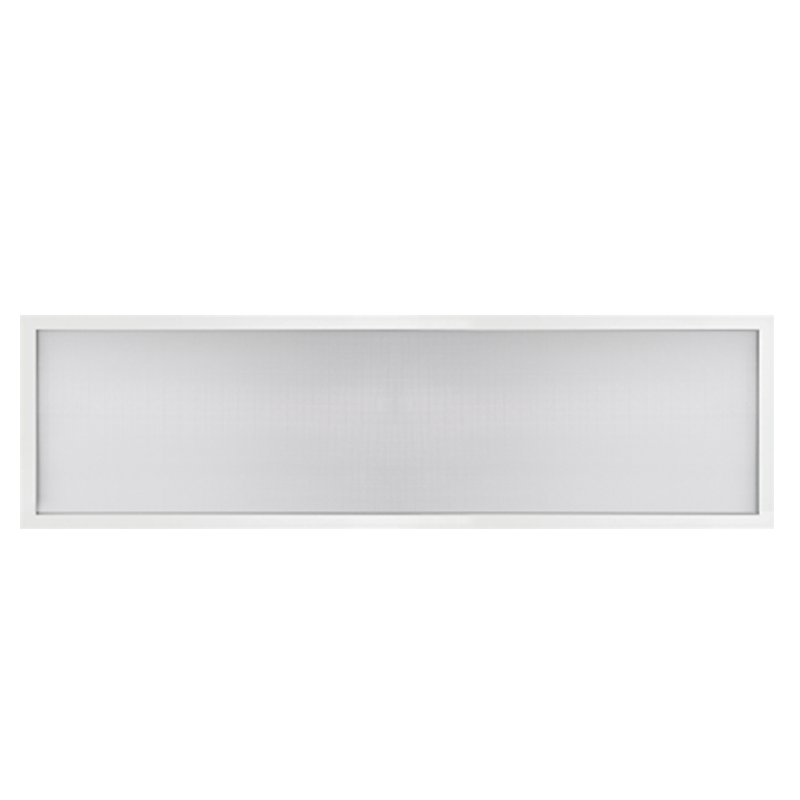

• Rectangular white LED light on a white background
  • Two white rectangular LED Lights on a white background

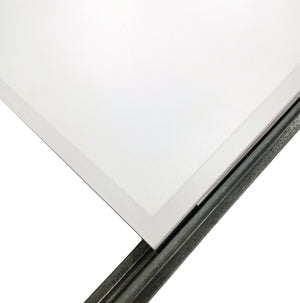

  • Close up of LED lights corner

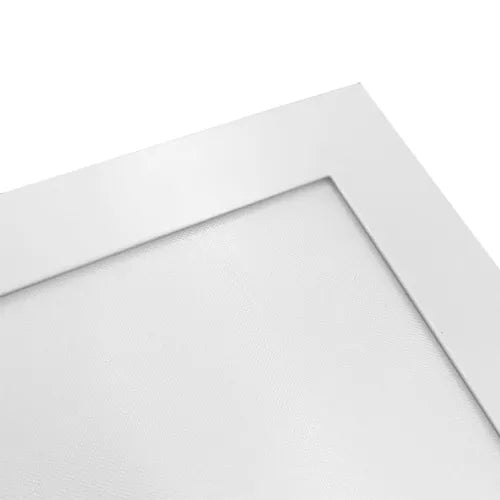

  • Corner of white LED light on a white background
1 4

Core UGR Backlit TP(a) Panel Light 1200 x 300

Core UGR Backlit TP(a) Panel Light 1200 x 300

£69.99 GBP
£69.99 GBP
Sale Sold out
Taxes included.

1200x300 LED Panel - Optimized for Glare Reduction and Visual Comfort

Description

  • 1200 x 300 panel light for 1200×300 grid ceilings
  • A range of accessories to cover almost any installation scenario
  • Also available in 600×600 | 1200×600

For full product specification, see specification details below.

Looking to further customise this product? Speak to a lighting designer.

  • Free Shipping on orders over £100
  • 30-day Return Policy
View full details

Specifications
  • Light Source Information : Direct light output · LED output of 32W delivering 3266 lm · Efficacy of 105lm/W · External drivers supplied · >83 colour rendering index · Colour Temperatures of 4000K · MTS LEDs with a ≤6 step Macadam ellipse tolerance TP(a) rated glare control diffuser
  • Design : Backlit for increased uniformity · White frame · IP40 Rated · Flicker free to reduce eyestrain
  • Mounting Options : Lay in grid ceiling · Suspended · Surface mounting frame · Burgess/metal pan ceiling
  • Optics : Opal TP(a) rated diffuser · Designed for excellent glare control
  • Dimming : Non-dimmable as standard · Mains / DALI / 0-10V / DSI dimming available
  • Controls : CP Sensor · Customised solution
  • Miscellaneous : 3hr Emergency available · DALI addressable panel emergency pack · Z10 remote control manual or advanced self-test emergency available · 5 year warranty
  • A range of accessories to cover almost any installation scenario
  • To specify state : Recessed LED 1200mm x 300mm backlit panel luminaire with slim line aluminium body and an opal TP(a) rated diffuser for low glare rating. Suitable for lay in exposed T ceilings – as Your Lights' Core UGR Panel.

Size

Downloads
📄 DOWNLOAD DATASHEET

Delivery and Returns
Delivery: 1 - 2 weeks depending on customisation required. Return: We have a 30-day return policy. Please see our return policy for more information.
