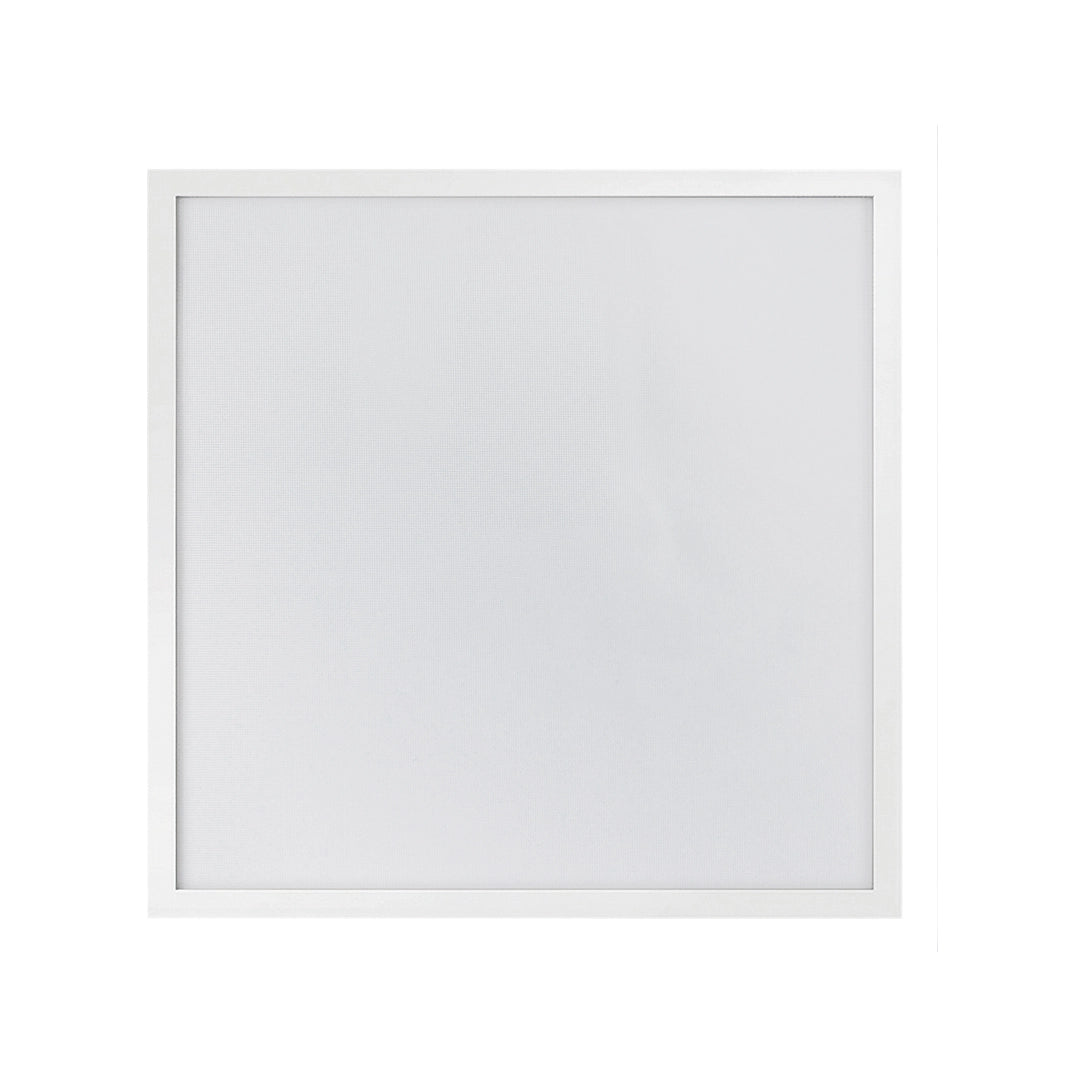

• Square core UGR LED Lighting

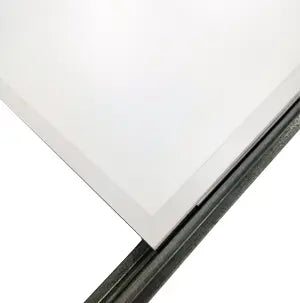

  • Close-up of corner of LED Lighting

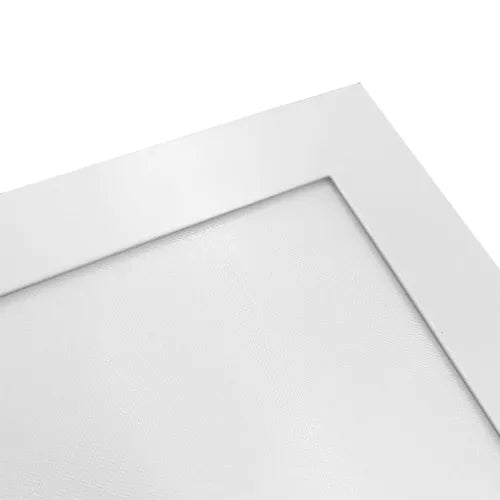

  • Close-up of a white rectangular panel with a black border on a white background
1 5

Core UGR Backlit TP(a) Panel Light 600x600

Core UGR Backlit TP(a) Panel Light 600x600

£38.00 GBP
£38.00 GBP
Sale Sold out
Taxes included.

600x600 Architectural TP(a) Panel offering superior glare reduction and visual comfort

Description

  • Contractor range office panel light
  • Backlit with optimal LED’s spread for increased light uniformity
  • A range of accessories to cover almost any installation scenario
  • Available also in 1200×300 and 1200×600 sizes

For more information about this product, please see the specification details below.

For full product specification, see specification details below.

Select Wattage
Select Dimming

Looking to further customise this product? Speak to a lighting designer.

  • Free Shipping on orders over £100
  • 30-day Return Policy
View full details

Specifications
  • Light Source Information : Direct light output · LED output of 24W delivering 2525 lumens, 32W delivering 3358 lm or 45W delivering 4727 lumens · Efficacy of 105lm/W · External drivers supplied · >83 colour rendering index · Colour Temperatures of 4000K · MTS LEDs with a ≤6 step Macadam ellipse tolerance
  • Design : Backlit for increased uniformity · White frame · IP40 Rated · Flicker free to reduce eyestrain
  • Mounting Options : Lay in grid ceiling · Suspended – 4 Point suspension (RE01), Y suspension (RE06) · Burgess/metal pan ceiling – Burgess Clips (RE10) · Solid ceiling – Surface Frame (RE60) · Plasterboard ceiling – Surface Frame (RE60), Core-Verve Point suspension (RE36)
  • Optics : Opal TP(a) rated diffuser · Designed for excellent glare control
  • Dimming : Non-dimmable as standard · Mains / DALI / 0-10V / DSI dimming available
  • Controls : CP Sensor · Customised solution
  • Miscellaneous : 3hr Emergency available · DALI addressable panel emergency pack · Z10 remote control manual or advanced self-test emergency available · 5 year warranty
  • To specify state : Recessed LED 600mm x 600mm backlit panel luminaire with slim line aluminium body and an opal TP(a) rated diffuser for low glare rating. Suitable for lay in exposed T ceilings – as Your Lights' Core UGR Panel.

Size

Downloads
📄 DOWNLOAD DATASHEET

Delivery and Returns
Delivery: 1 - 2 weeks depending on customisation required. Return: We have a 30-day return policy. Please see our return policy for more information.
