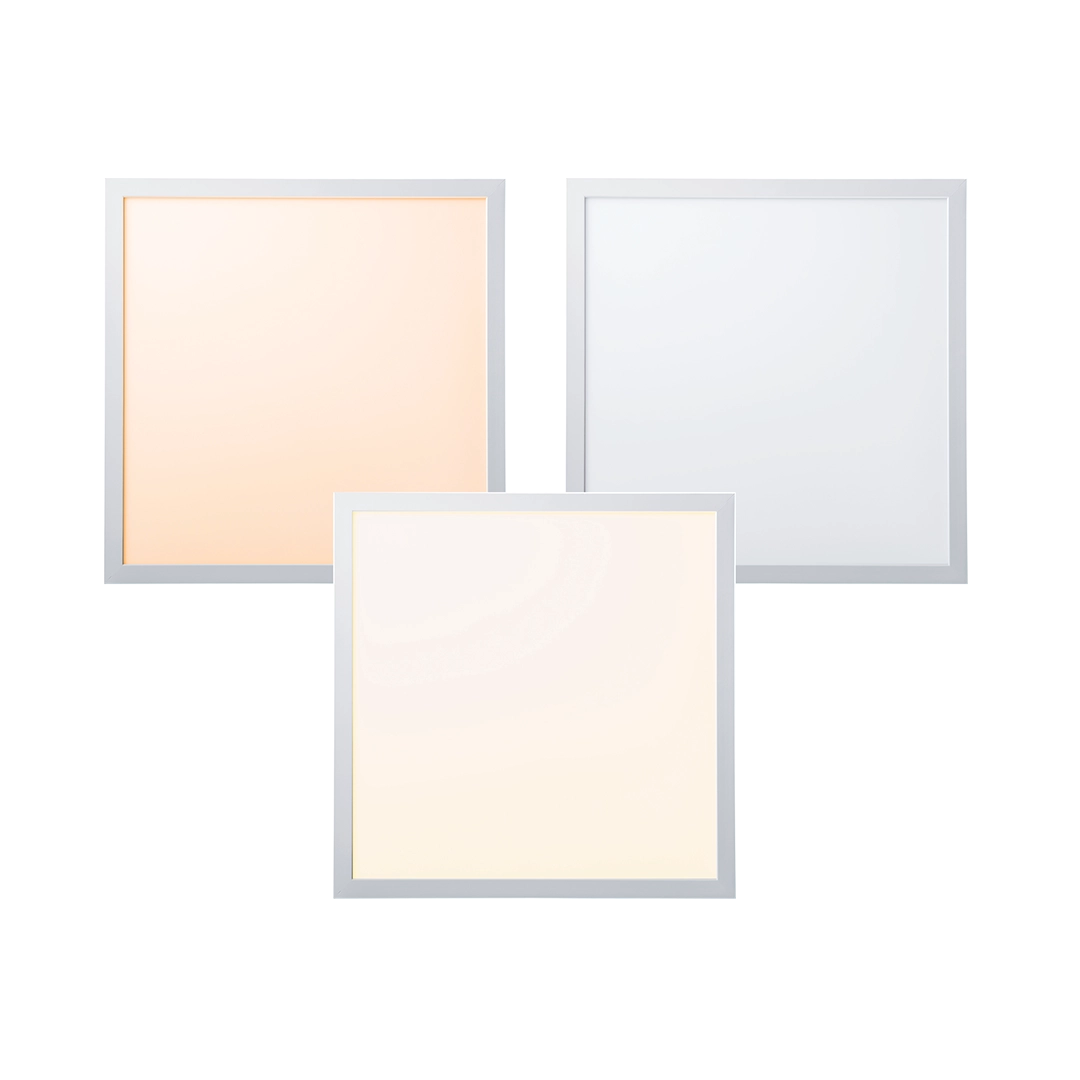

• Three square light panels with different colour temperatures on a white background
1 7

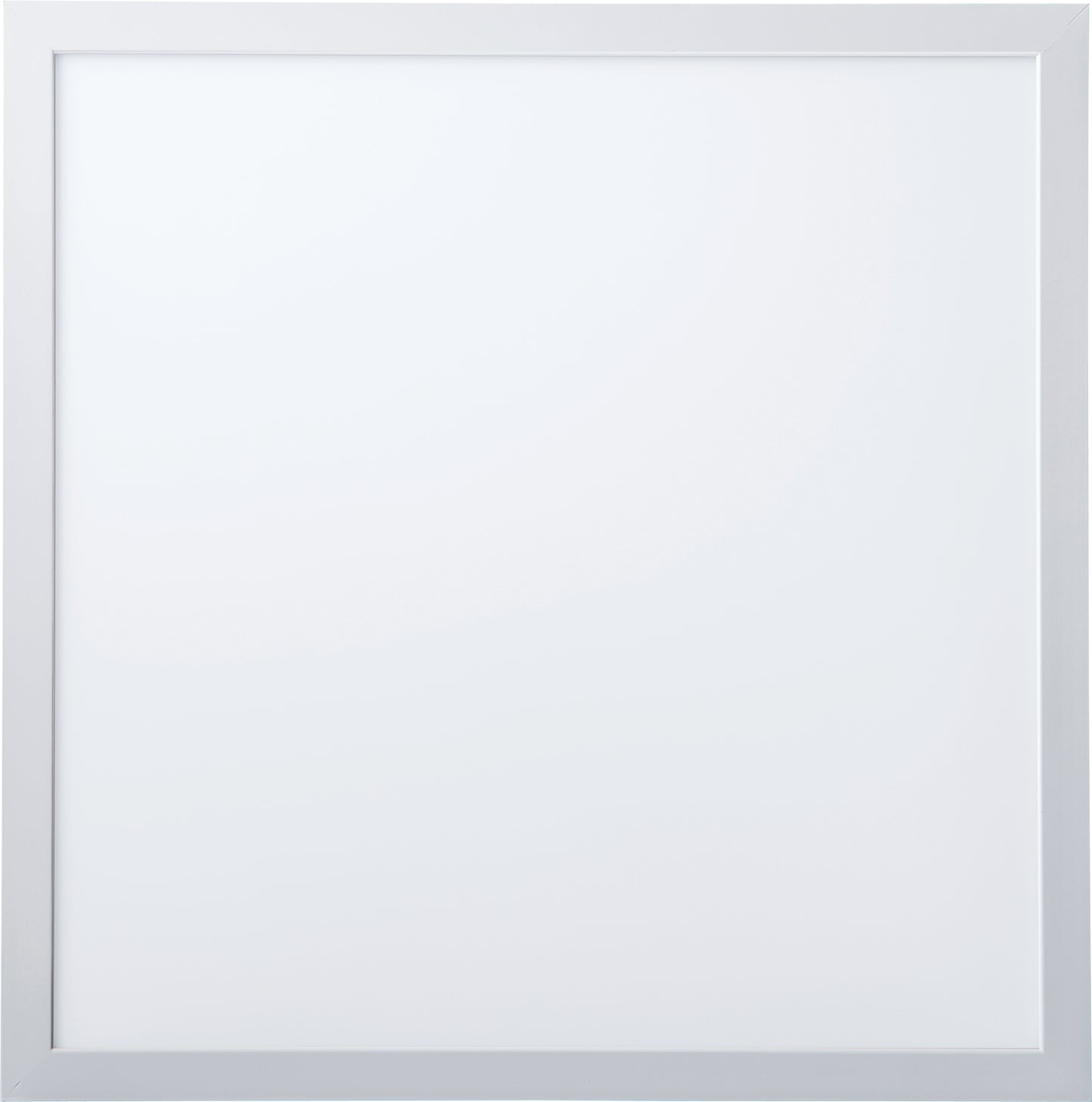

CTC Changing Panel

CTC Changing Panel

£146.99 GBP
£146.99 GBP
Sale Sold out
Taxes included.

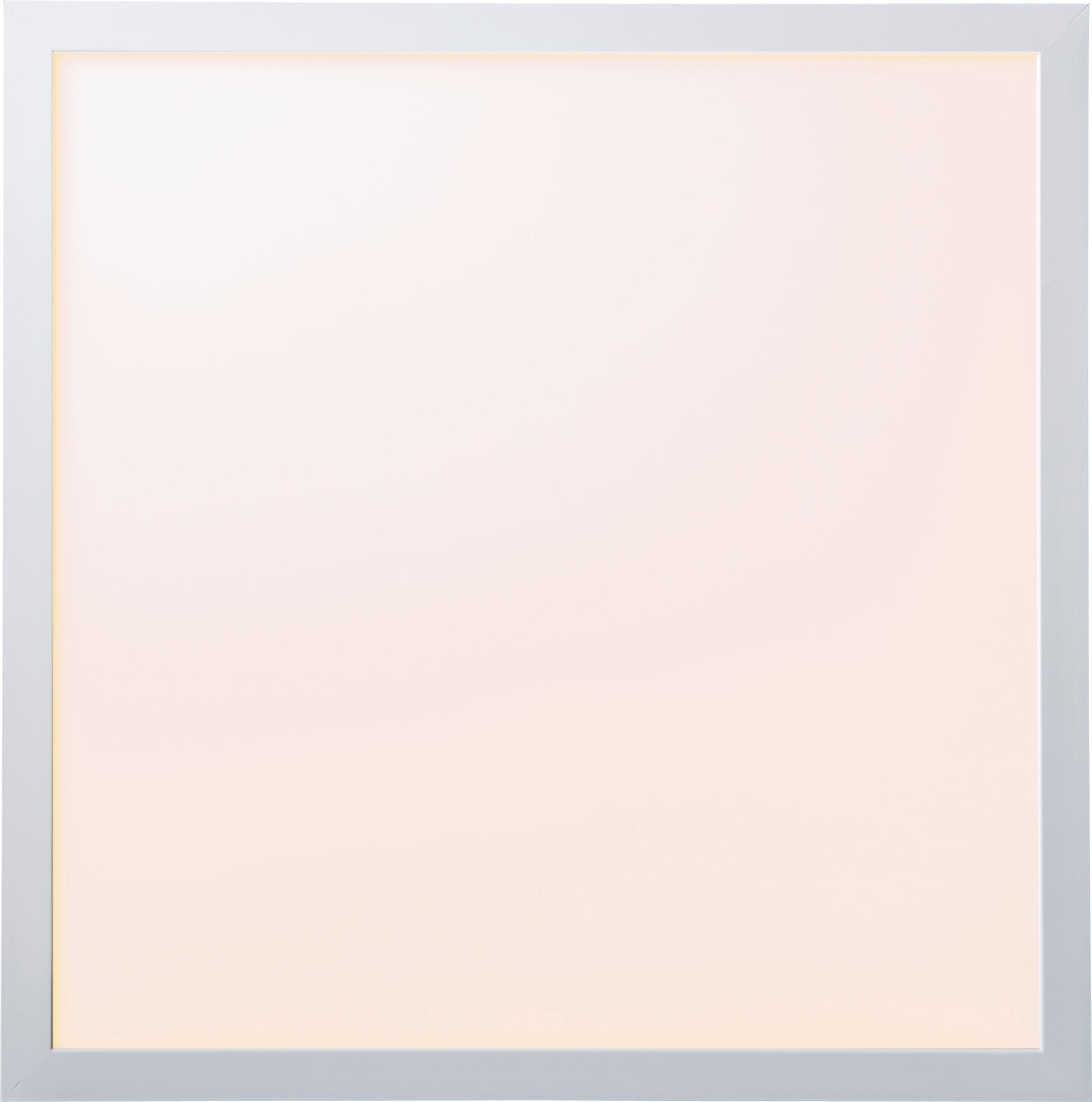

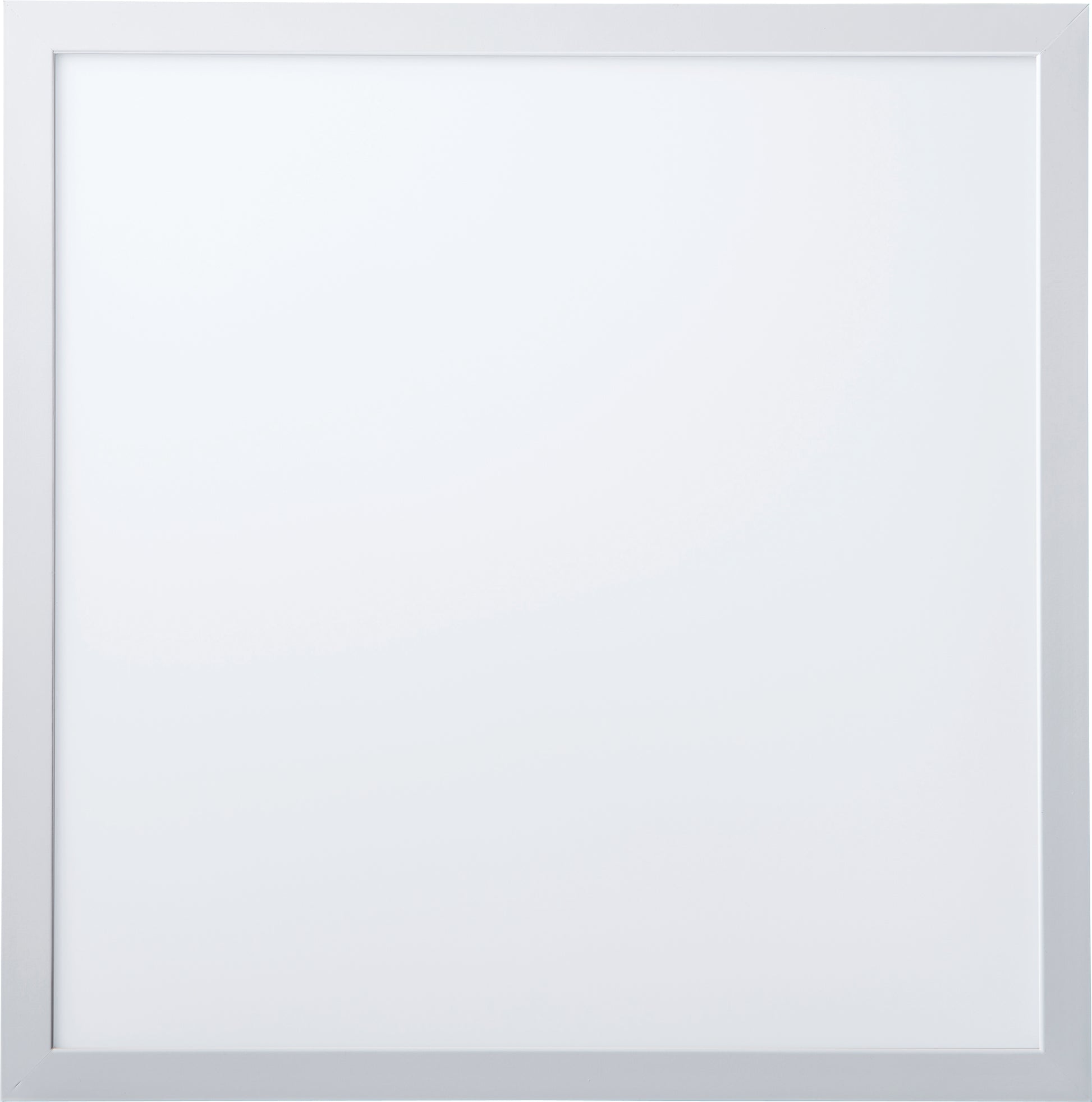

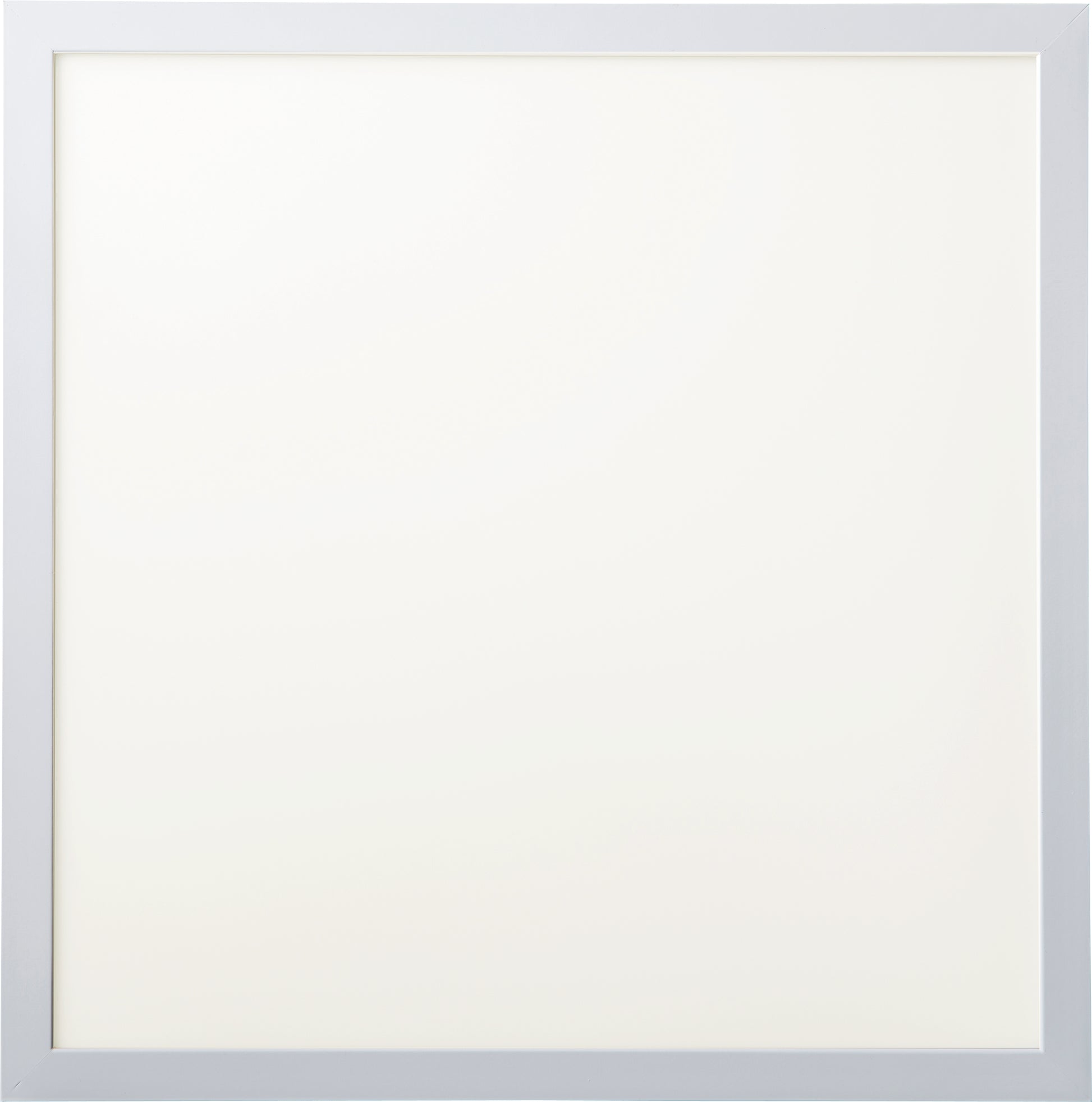

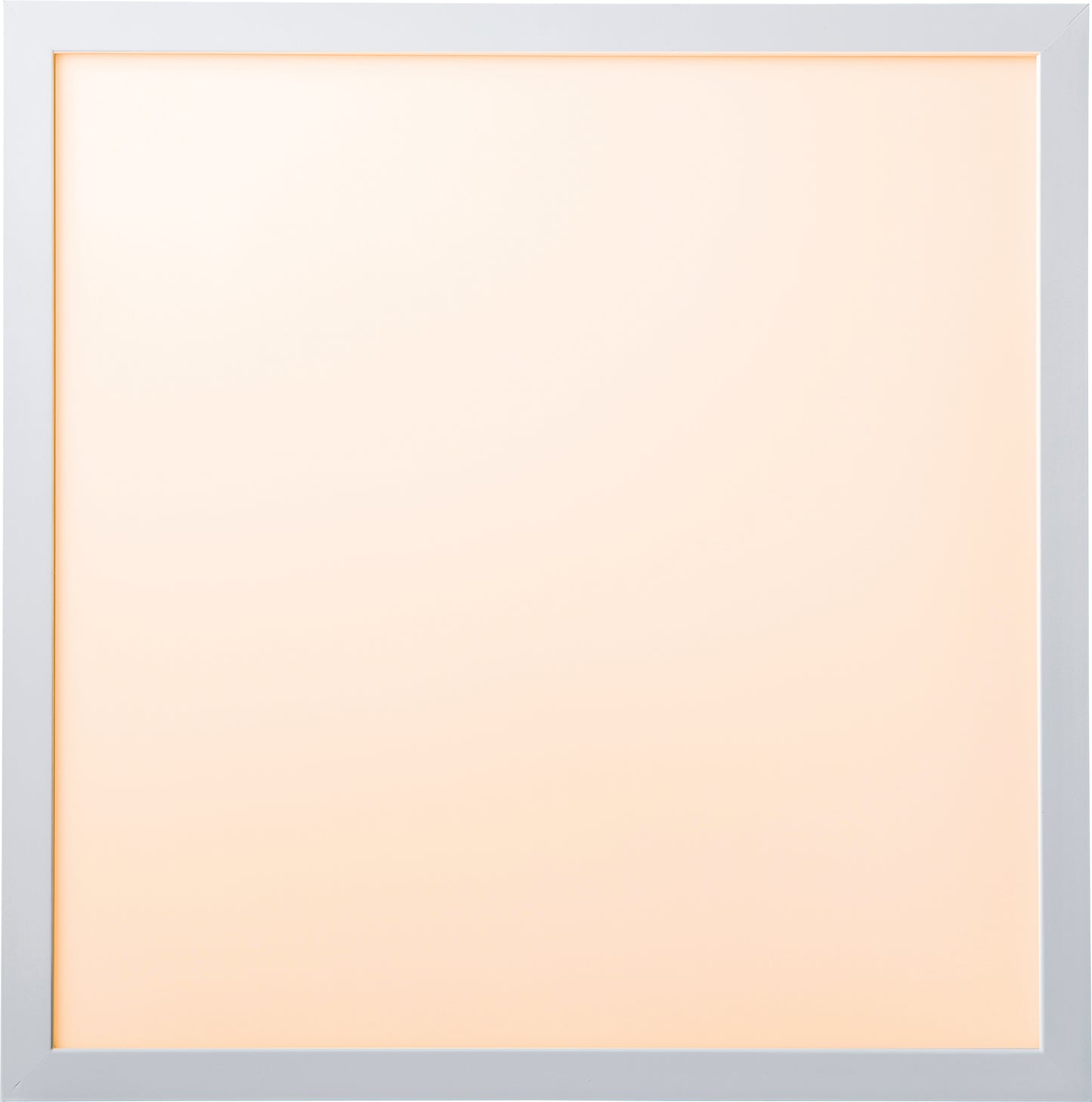

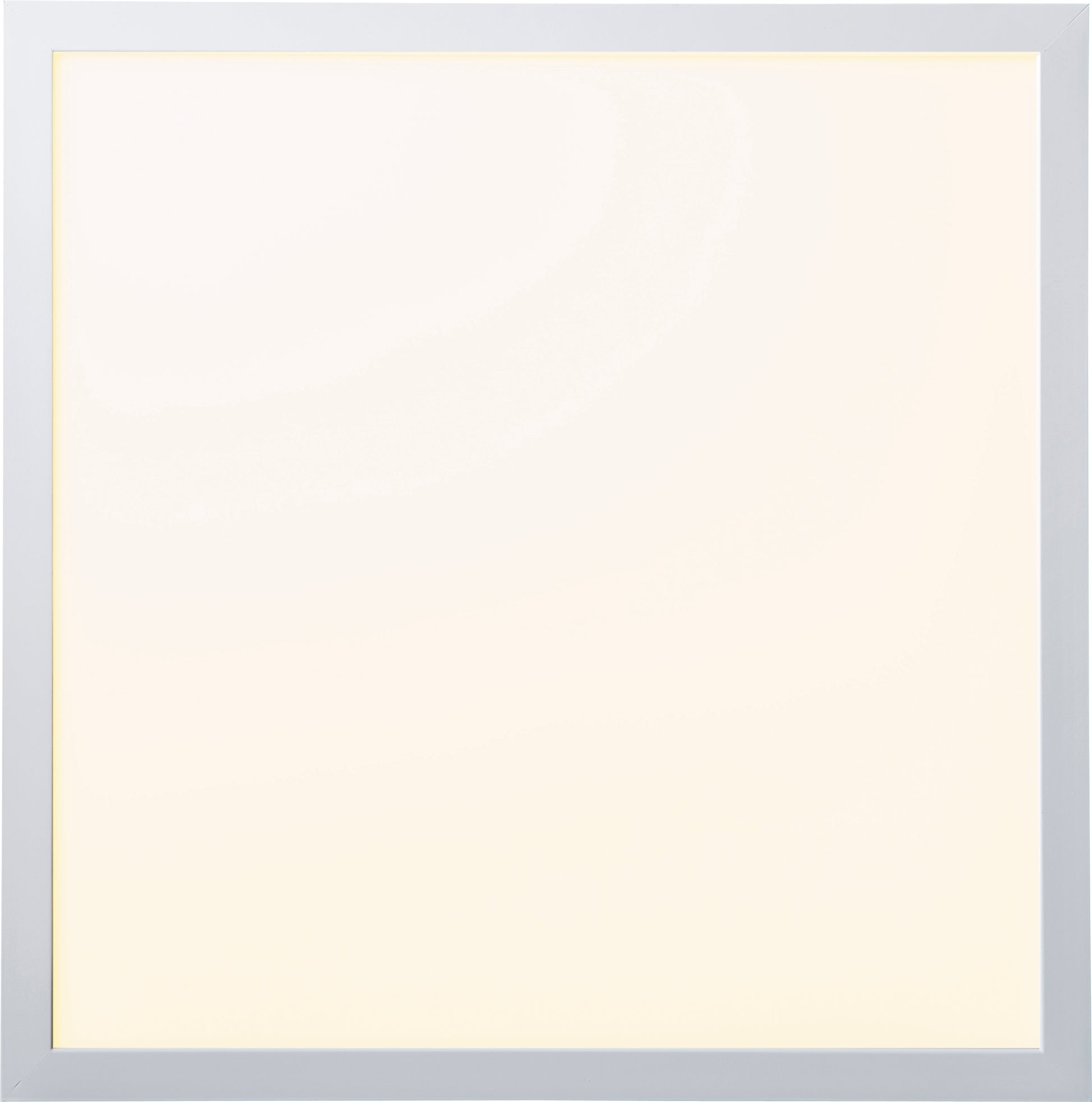

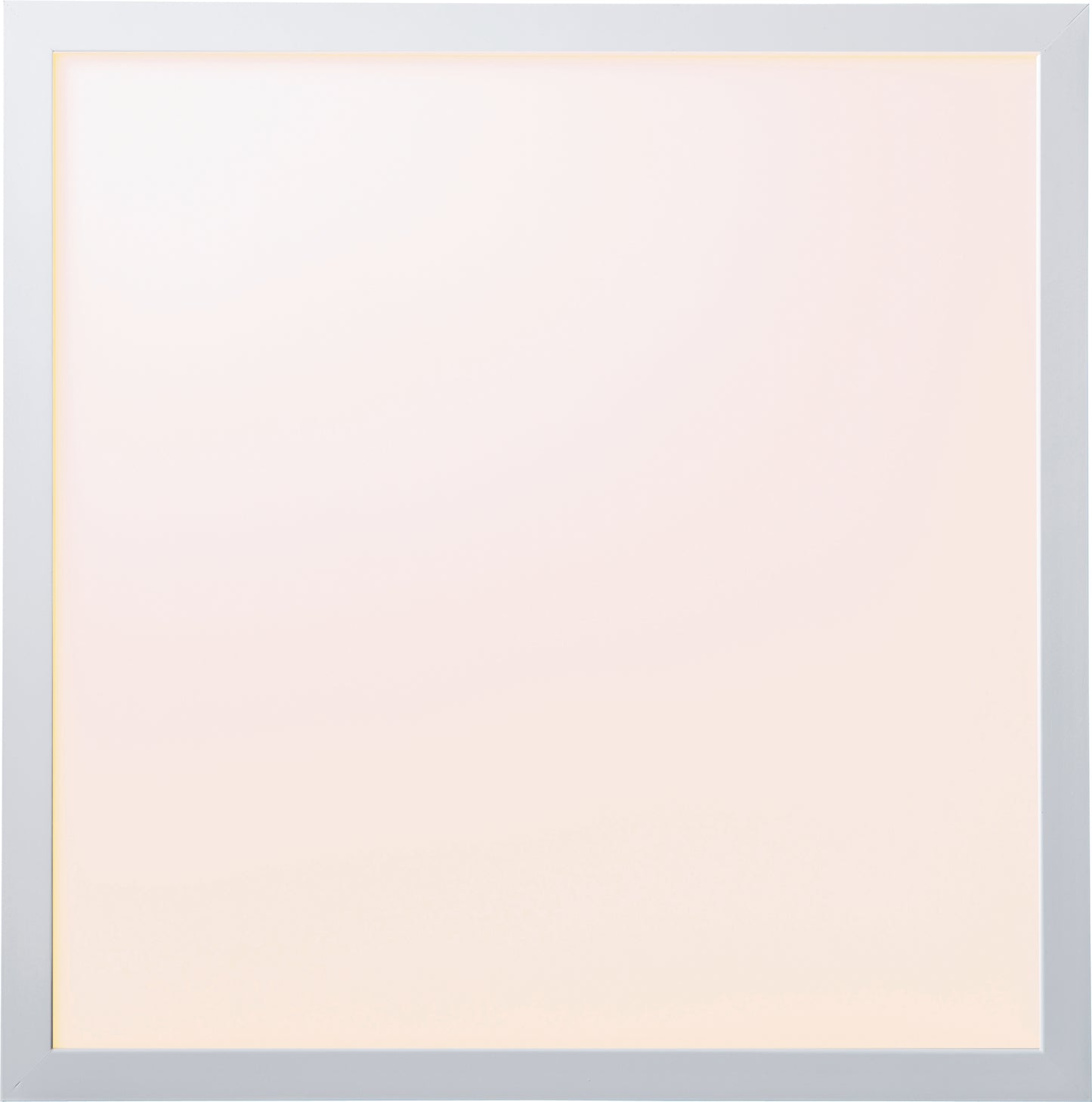

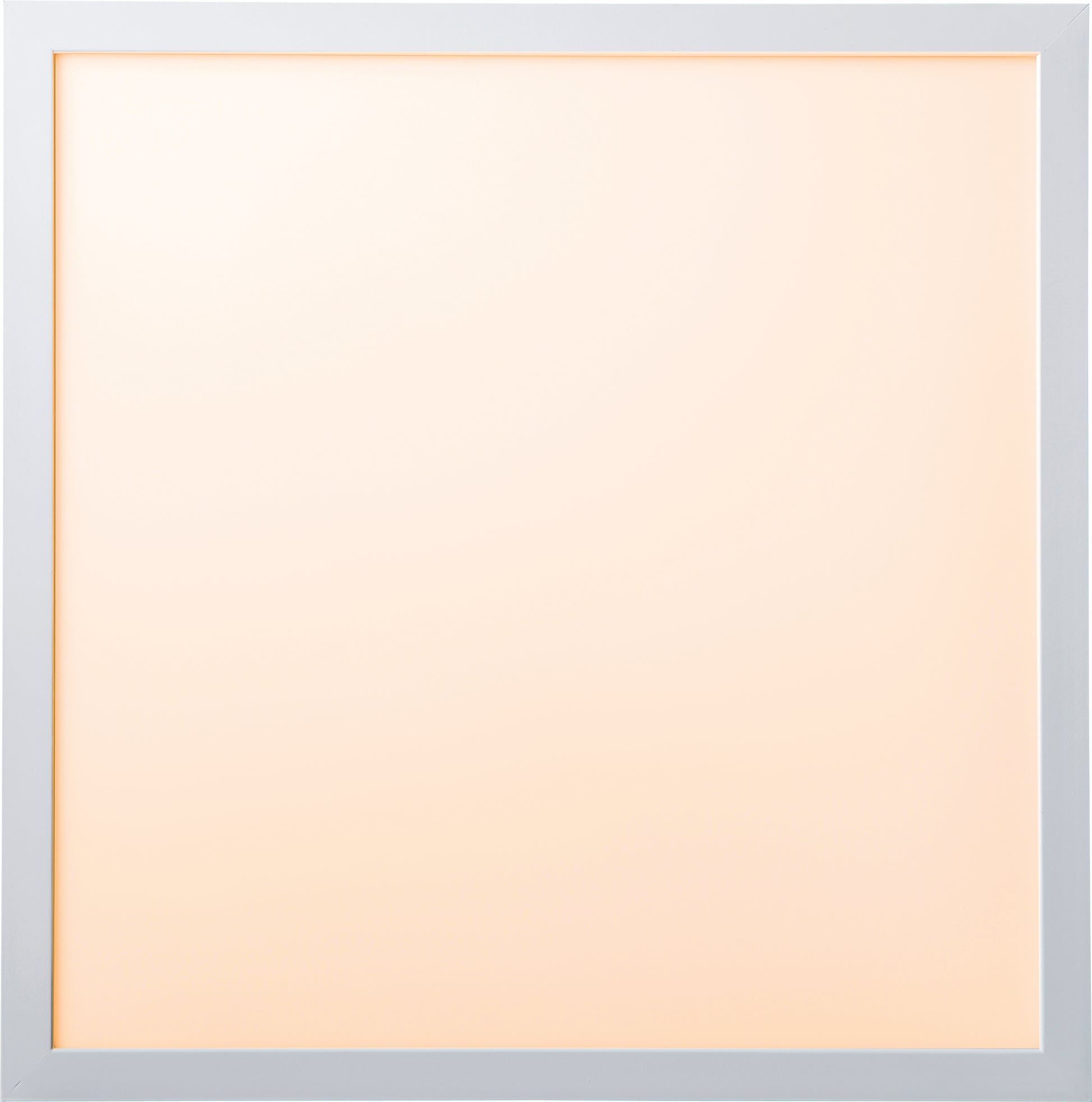

CTC Panel 600x600mm 36W 2500K-6500K Dimmable With Innovative Back Channel

Description

  • Comprehensive colour temperature changing and dimming
  • CTC changing, flicker-free, with wall mounted, remote control, or app
  • Tuneable white 2500-6500K
  • Ideal for circadian/human centric lighting

For further customisation, kindly reach out to our lighting design team.

For full product specification, see specification details below.

Looking to further customise this product? Speak to a lighting designer.

  • Free Shipping on orders over £100
  • 30-day Return Policy
View full details

Specifications
  • Light Source Information : Direct light output · LED output of 36W · Average effifacy of 99 lumens per watt · 3492 lm (2700K) · 3456 lm (3000K) · 3528 lm (3500K) · 3780 lm (4000K) · 3600 lm (5000K) · 3456 lm (6500K) · CTC / tuneable white colour changing · CTC features 2500- 6500K colour temperature · >85 colour rendering index · L70 B50 = 70,000 hours | L90 B50 = 25,000 hours · Single Bin Epistar LEDs with a ≤4 step Macadam ellipse tolerance
  • Design : Slim edge-lit design with white frame · IP44 Rated · Flicker free to reduce eyestrain · Innovative backchannel containing captive nuts which allow for many mounting options with RICOMAN accessories · Ability to synchronise up to 99 panels
  • Mounting Options : Lay in grid ceiling · Suspended – 4 Point suspension (RE01), Y suspension (RE06) · Burgess/metal pan ceiling – Burgess Clips (RE09) · Solid ceiling – Offset Brackets, Linear Clips, Surface Frame · Plasterboard ceiling – Z-Clips, Offset Brackets, Linear Clips , Surface Frame , 4 Point suspension · Burgess/metal pan/armstrong ceiling – Burgess clips
  • Optics : TPa rated diffuser
  • Dimming : Dimmable via controls (radio frequency)
  • Controls : Wall control · Handheld remote control
  • Miscellaneous : 5 year warranty
  • A range of accessories to cover almost any installation scenario
  • To specify state : LED 600mm x 600mm dimmable panel with tuneable white LEDs to adjust the colour temperature between 2500K and 6500K. Features an innovative back channel containing captive nuts which allow for many mounting options with Your Lights accessories including SAS Ceiling, Burgess ceiling, T grid ceiling, plasterboard ceiling and solid ceiling types. Features an opal diffuser for general, circulation and feature areas. – as Your Lights' CTC Panel

Size

Downloads
📄 DOWNLOAD DATASHEET

Delivery and Returns
Delivery: 1 - 2 weeks depending on customisation required. Return: We have a 30-day return policy. Please see our return policy for more information.
