E-Pro Recessed
E-Pro Recessed

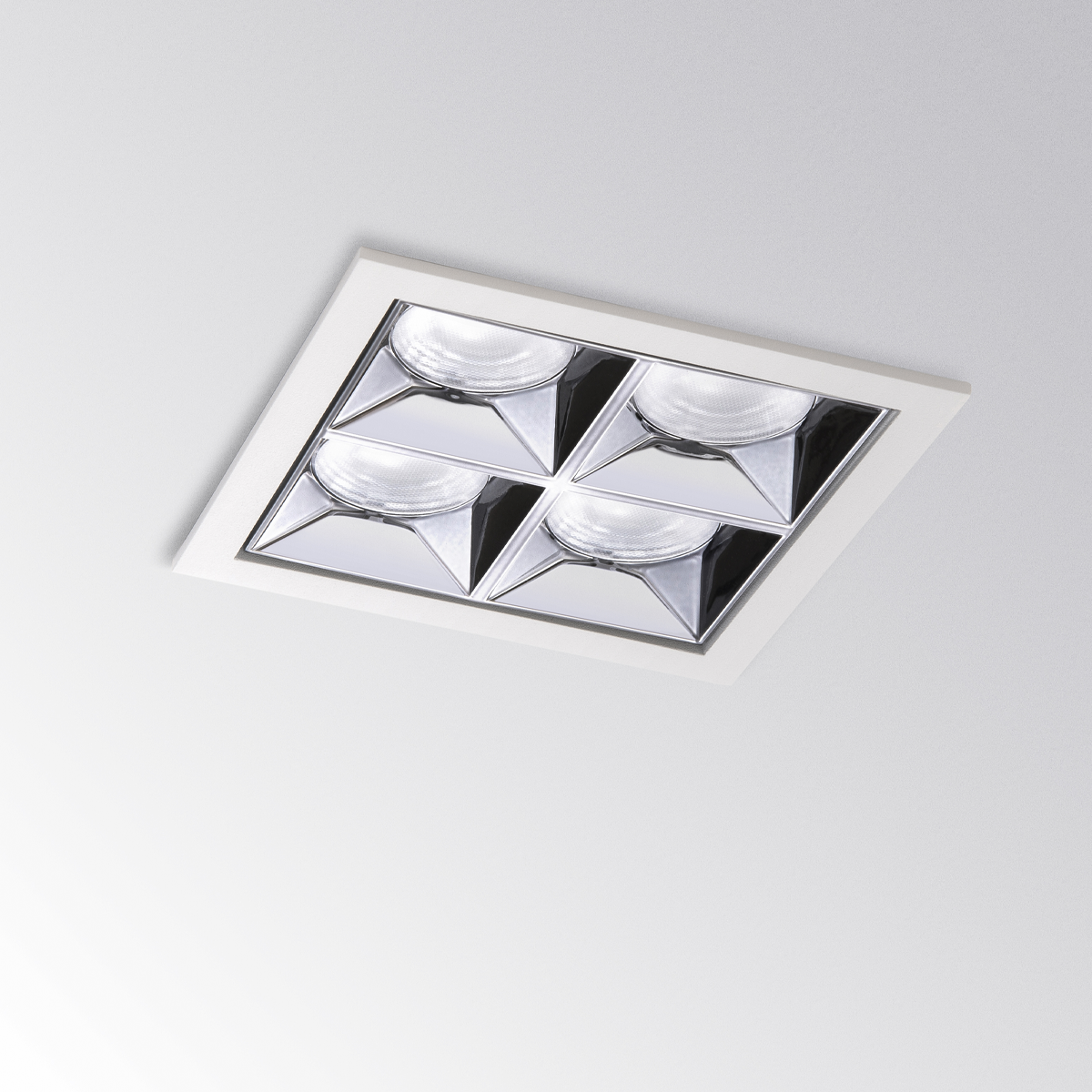

Recessed Square Downlight
Description

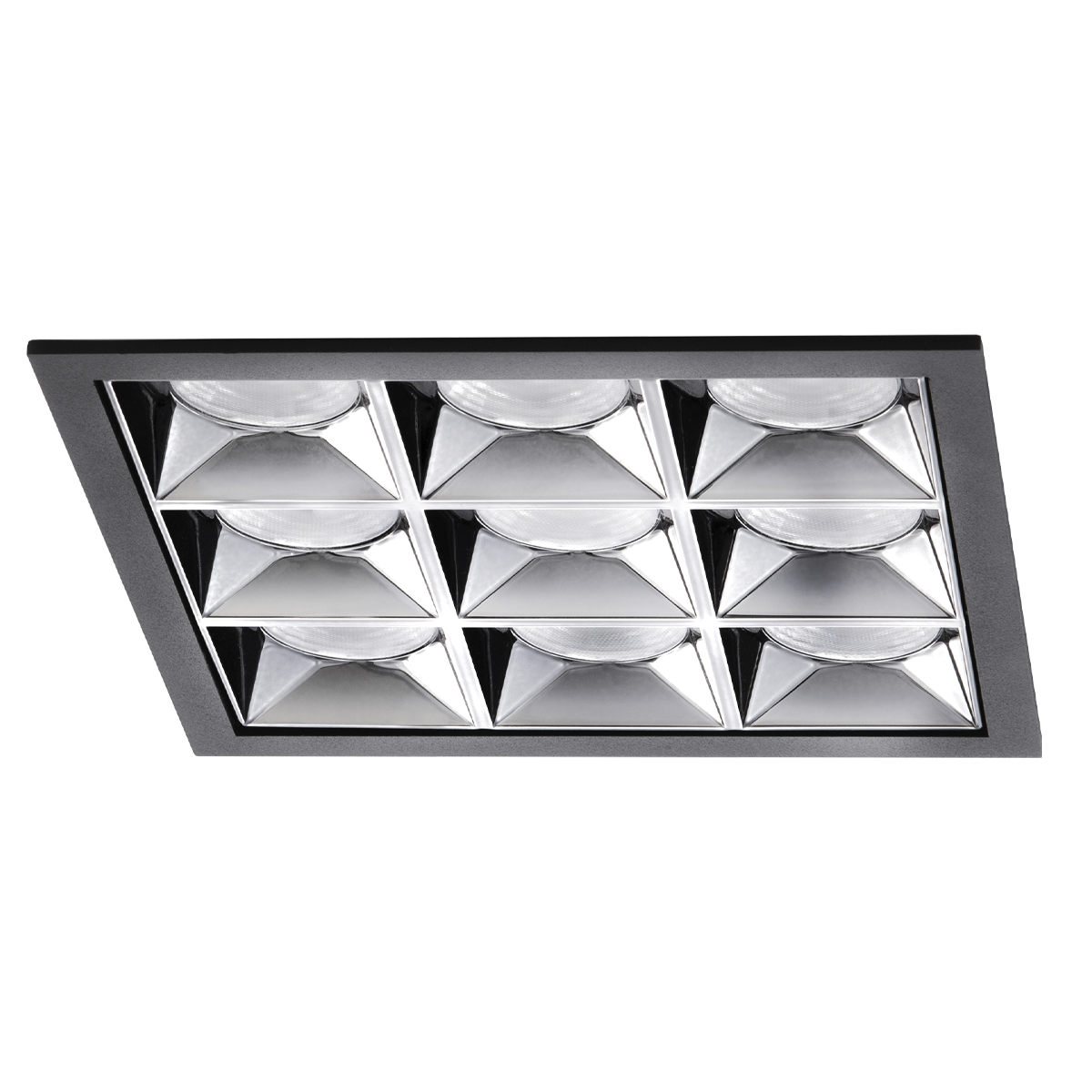

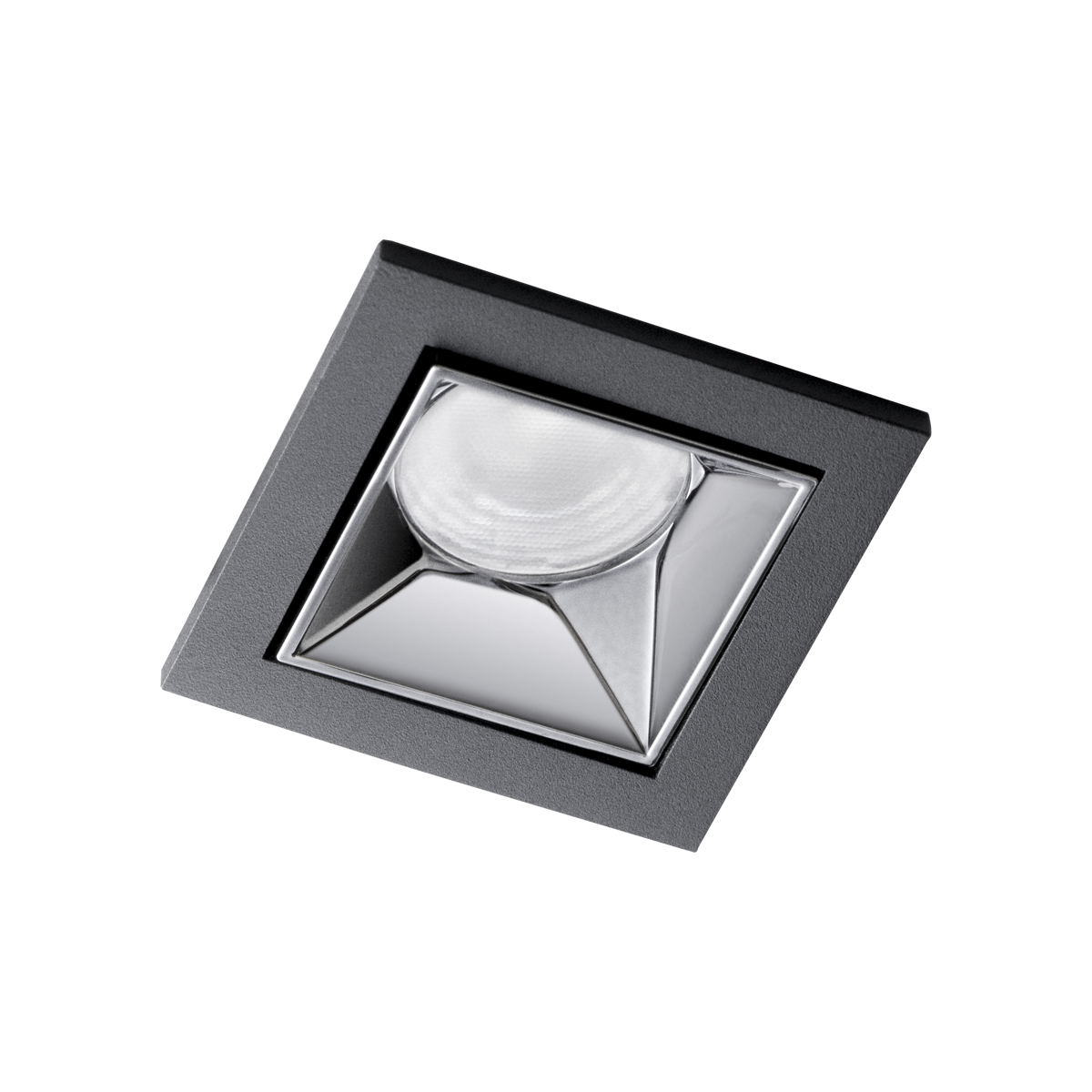

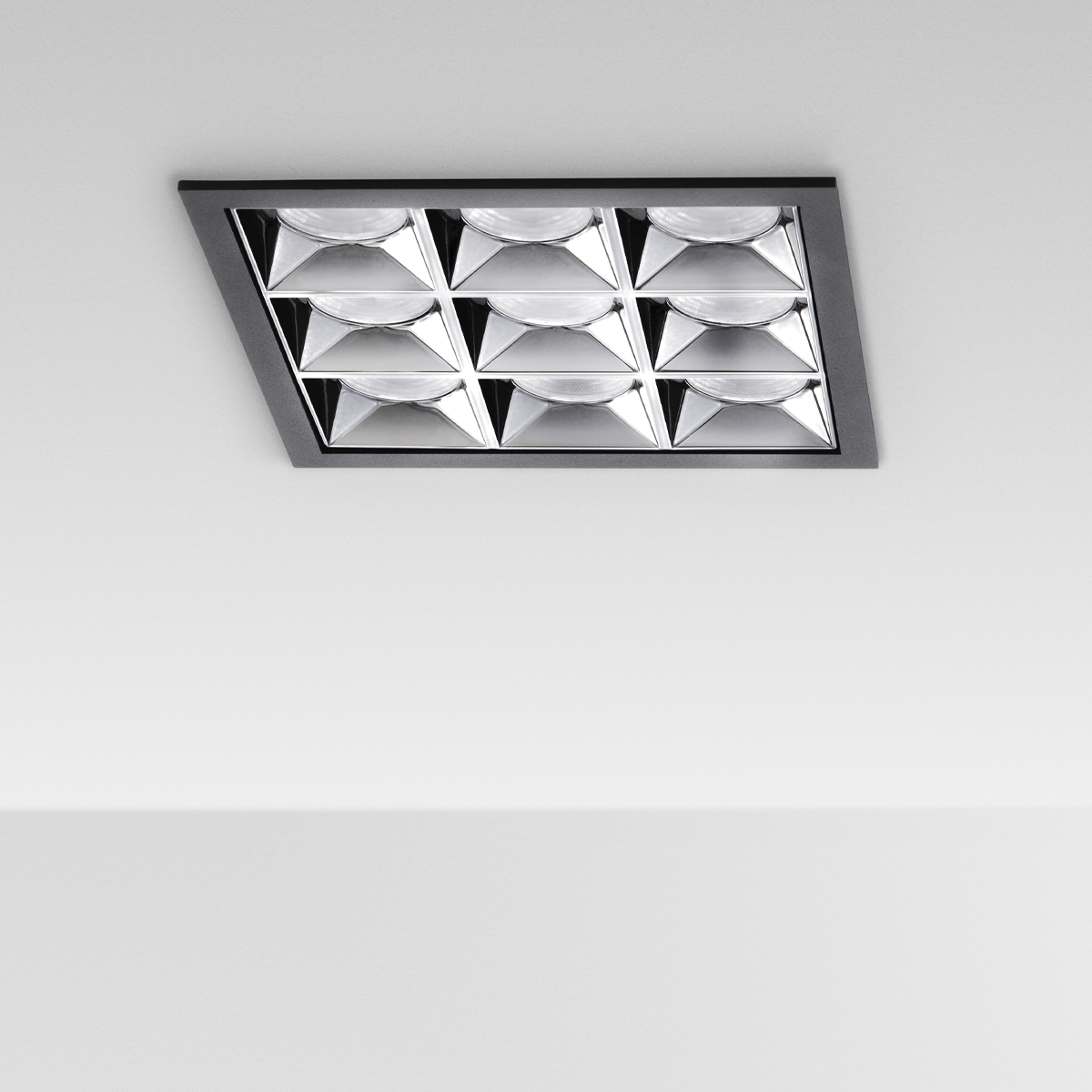

The versatile square lighting system is a great choice for a range of applications due to its flexible design. The system offers single, 2×2, and 3×3 cell sizes, available in both standard and high output options, with power ranging from 8W to 36W. These squares are capable of delivering between 527 and 8302 lumens with an impressive efficacy of 105 Lm/W. To ensure optimum glare control, the squares feature superior round aperture optics, along with elegant gun metal reflectors. The lighting system has an aluminium body that offers excellent thermal control, making it an efficient and long-lasting option. Additionally, the system offers 3000K or 4000K colour temperatures and can be installed recessed or surface mounted, with white or black colour finishes available. The lighting system also comes with linear cell designs, a light source with a ≤3 step Macadam ellipse tolerance, and DALI and other dimming options. Moreover, the system provides emergency options for added safety.
Looking to further customize this product? Speak to a Lighting Consultant
- Free Shipping on orders over £100
- Delivery in 1-2 weeks
- 30-day Return Policy
Couldn't load pickup availability
Collapsible content
Specifications
- Light Source Information : Direct light output · 6W to 40W delivering 635 lm to 4289 lm at 4000K · Efficacy of ~105lm/W · >90 colour rendering index · Colour temperature 3000K or 4000K · L70 B50 = 100,000 hours | L90 B50 = 42,000 hours · ≤3 step Macadam ellipse tolerance
- Design : Aluminium body · IP40 rated (front) · Recessed mounting · Remote driver
- Cutout : 125mm x50mm (3-cell), 200mmx50mm(5-cell), 390mm x 50mm (10-cell)
- Optics : Polycarbonate TP(a) rated round aperture diffuser · Gyn metal reflector · Beam angle: 50 degrees
- Electrical : Protection Class III
- Dimming : Non dimmable as standard · DALI and other dimming options available
- Miscellaneous : 5 year warranty
- To specify state : A range of recessed LED downlights in black or white finish and linear multiple cellular options. Round aperture optics for excellent glare control with a <3 step Macadam ellipse tolerance – as Your Lights' E-Pro recessed range.
