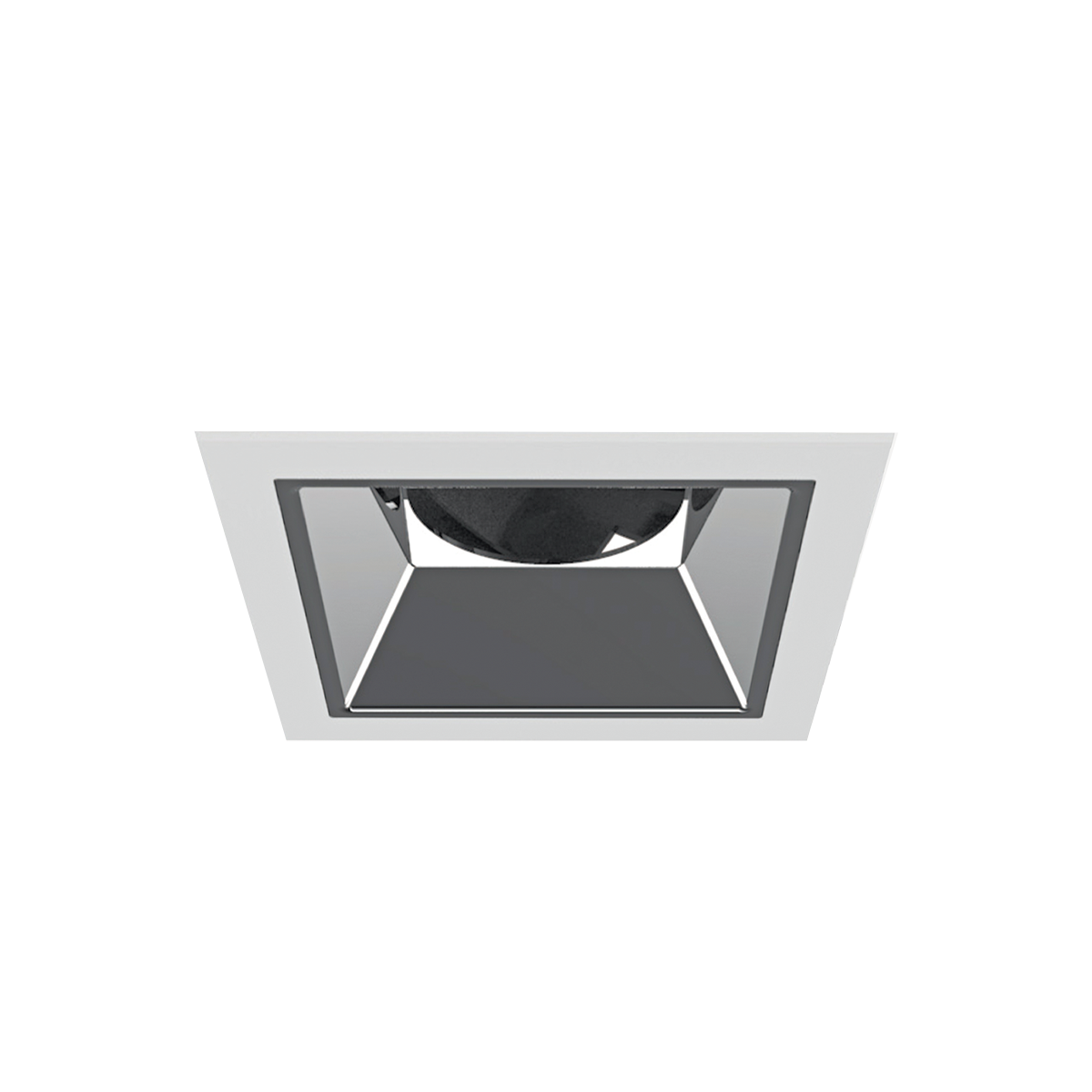

• Square recessed ceiling light on a white background
1 1

Endor Square Architectural Downlight

Endor Square Architectural Downlight

£65.00 GBP
£65.00 GBP
Sale Sold out
Taxes included.

Square Customisable Recessed Downlight

Description

  • 12W | 24W | 32W | 42W – Output versions
  • Titanium | Polished Chrome | Matte Silver – Reflector Finishes
  • Also available in: Round | Round rimless
  • Beam Angle 55° as standard. Other beam angles are available. Please discuss any customisations with our lighting consultants.

For full product specification, see specification details below.

Select Wattage
Colour Temperature
Select Reflector Finish

Looking to further customise this product? Speak to a lighting designer.

  • Free Shipping on orders over £100
  • 30-day Return Policy
View full details

Specifications
  • Light Source Information : Direct light output · Deeply recessed light source for enhanced glare control · 12W | 24W | 32W | 42W delivering up to 4198lm · Efficacy of up to 106lm/W · Drivers supplied · 85 colour rendering index · Colour Temperature options of 3000K and 4000K · L70 B50 = 100,000 hours | L90 B50 = 42,000 hours · CREE LEDs with a ≤3 step Macadam ellipse tolerance
  • Design : Rimless · IP20 rated (IP65 available in 12W version) · Ceiling recess mounted
  • Cutout : 12W = 75 x 75mm · 24W = 100 x 100mm · 32W = 125 x 125mm · 42W = 150 x 150mm
  • Optics : PMMA diffuser as standard · Reflector shapes: downlight or wallwasher · Reflector finishes: titanium, polished chrome, matte silver · Beam angles: 15, 38 or 55 degrees · Honeycomb louvre diffuser available -TP(a) rated
  • Dimming : Non dimmable as standard · Mains, DALI, 0-10V, DSI dimming available
  • Miscellaneous : 3hr emergency available · DALI Addressable emergency available · Z10 remote control manual or advanced self-test emergency available (only on >12W) · Casambi and antimicrobial coating available
  • L70 B50 = 100,000 hours; | L90 B50 = 42,000 hours
  • Single bin CREE COB with a ≤3 step Macadam ellipse tolerance
  • To specify state : A range of square recessed individually adjustable LED downlight luminaires with 15/38/55 degree beam angles in polished chrome/titanium/matte silver finish. Superb optical performance from high performance CREE COB LED modules and Tridonic drivers delivering 12W/24W/32W/42W with an efficacy of 100 lumens per watt. – As Your Lights' Endor range.
  • Warranty: 5 years | Emergency Warranty: 3 years

Size

Downloads
📄 DOWNLOAD DATASHEET

Delivery and Returns
Delivery: 1 - 2 weeks depending on customisation required. Return: We have a 30-day return policy. Please see our return policy for more information.

Product FAQs

What is an architectural downlight?

An architectural downlight is a recessed fitting designed primarily around the visual quality of light, low glare, and a clean integration into the ceiling, rather than being a general-purpose utility fitting. Features like deeply recessed light sources, premium reflector finishes, and customisable beam angles set them apart from off-the-shelf commercial downlights.

How customisable is the Endor Square?

The Endor Square is available in four wattages (12W, 24W, 32W and 42W), three reflector finishes (titanium, polished chrome and matte silver), three beam angle options (15°, 38° and 55°), and two reflector shapes (downlight or wallwasher). The 30° tiltable head allows directional aiming, and Mains, DALI, 0-10V or DSI dimming can be specified for full control integration.

Where is the Endor Square best specified?

Your Lights' Endor Square is well suited to hotels, restaurants, retail, showrooms, galleries, and high-end commercial fit-outs where the lighting needs to deliver both visual impact and accurate, controlled illumination. The rimless square aperture gives it a sharp architectural look that integrates cleanly into modern plasterboard and feature ceilings.

Speak To a Dedicated Lighting Consultant

Your dedicated lighting consultant supports every project from start to finish, providing expert guidance, answering technical questions, and connecting you directly with our lighting designers. As a one-stop lighting solution, we deliver complete lighting concepts, premium products, and tailored design expertise. Whether it’s a complex project or a simple query, no detail is too small and no project too large - ensuring your lighting vision is fully realized with style, precision, and impact.
