Endor Round Architectural Downlight
Endor Round Architectural Downlight
Key Benefits

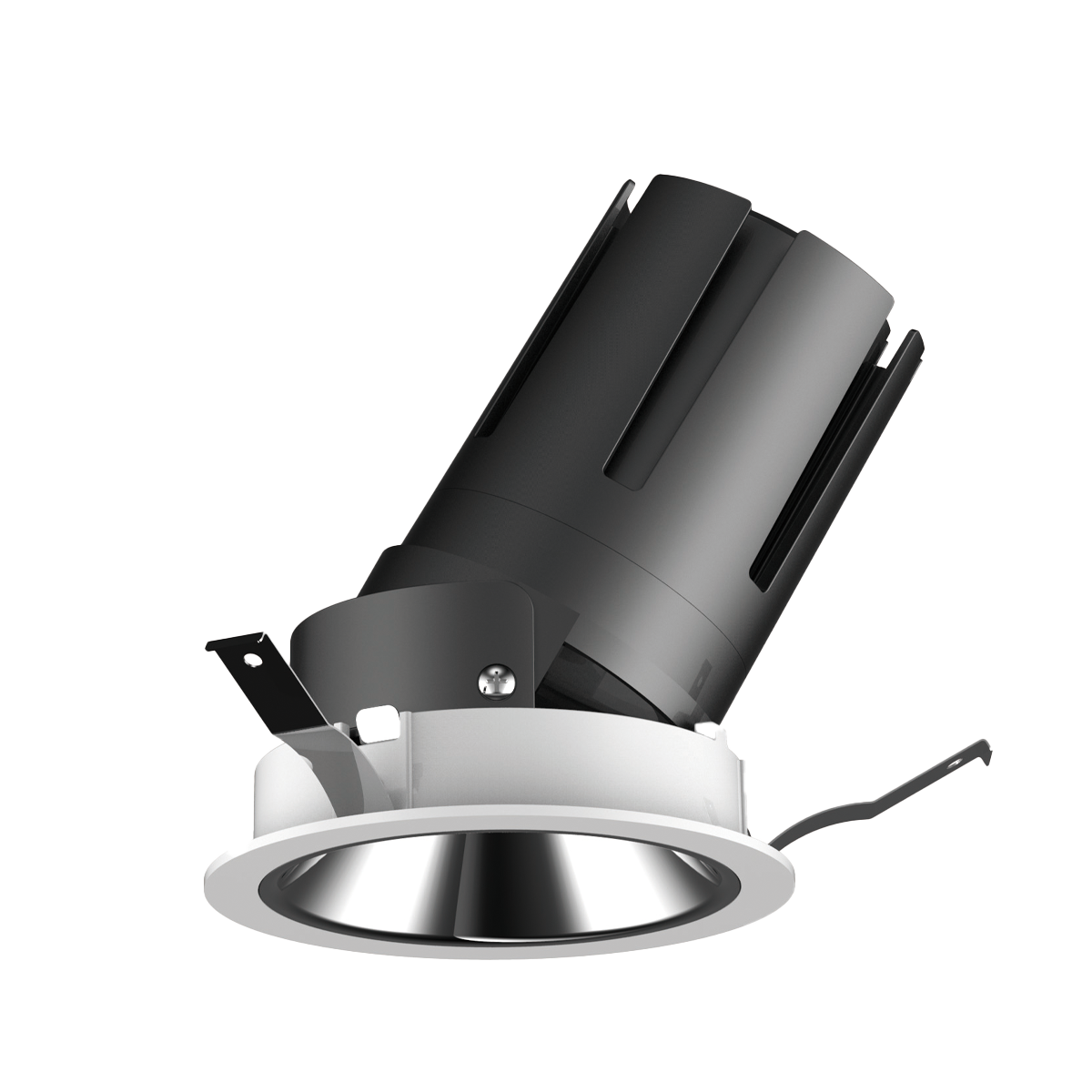

- Deeply Recessed Round Design - Minimises glare while offering four output options from 12W to 42W and tiltable heads for accent lighting.
- CRI Above 85 with CREE LEDs - Accurate colour rendering with the reliability of premium CREE chips, ideal for hospitality, retail and premium residential.
- Three Reflector Finishes and Two Colour Temperatures - Choose Titanium, Polished Chrome or Matte Silver in 3000K or 4000K to match any ceiling scheme.
For full product specification, see specification details below.
Couldn't load pickup availability
Looking to further customise this product? Speak to a lighting designer.
- Free Shipping on orders over £100
- 30-day Return PolicyÂ

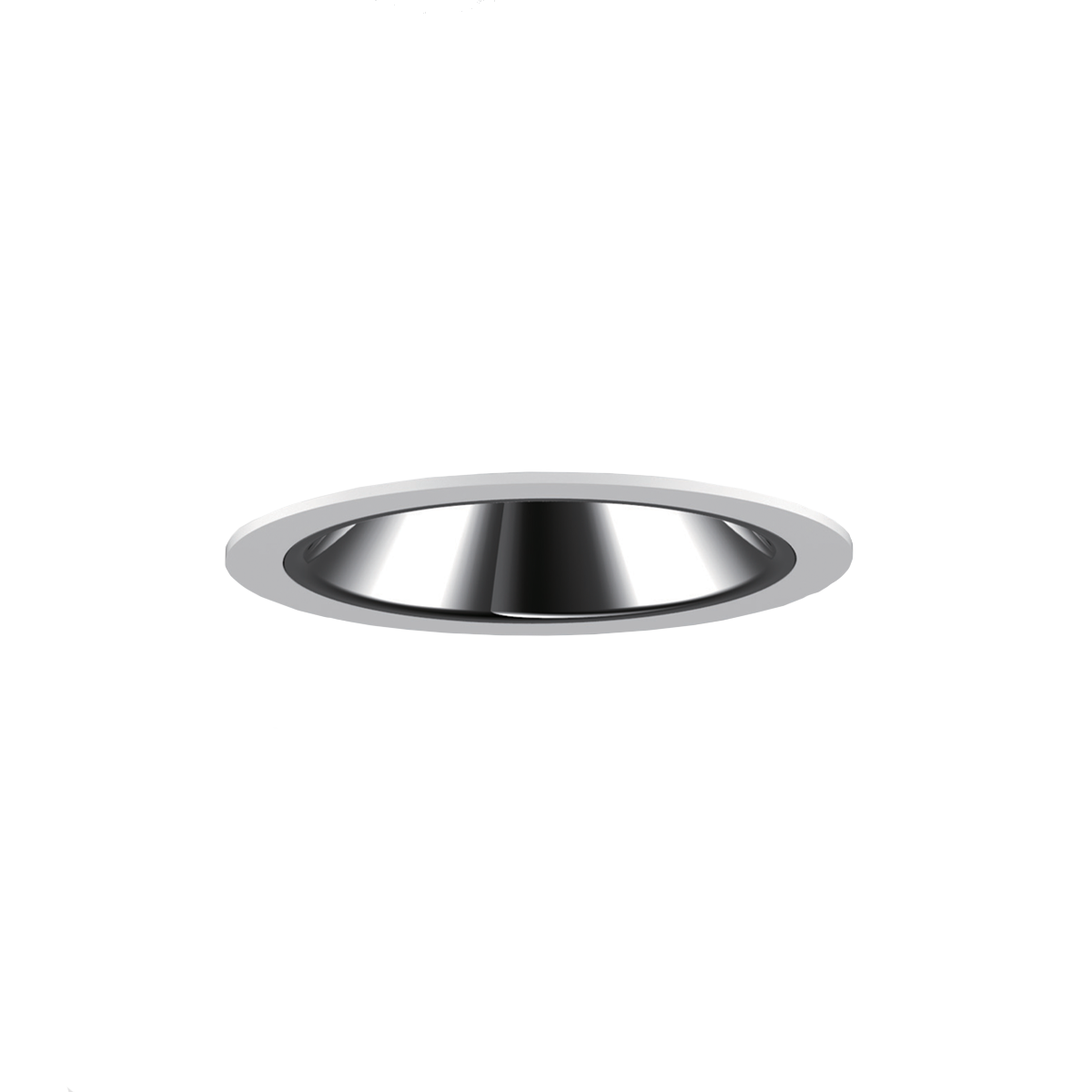

Round, Recessed Customisable Downlight.
Description
- 55° standard bean angle | Other beam angle options available upon request: 15° | 38°
- 12W | 24W | 32W | 42W – Output versions
- Downlight | Wallwasher – Reflector shapes
- 3000K | 4000K – Colour Temperature
- Also available in: Round rimless | Square
Collapsible content
Specifications
- Light Source Information : Direct light output · Deeply recessed light source for enhanced glare control · 12W | 24W | 32W | 42W delivering up to 4198lm · Efficacy of up to 106lm/W · Drivers supplied · 85 colour rendering index · Colour Temperature options of 3000K and 4000K · L70 B50 = 100,000 hours | L90 B50 = 42,000 hours · CREE LEDs with a ≤3 step Macadam ellipse tolerance
- Design : White bezel · IP20 rated – IP65 available in the 12W version · Ceiling recess mounted
- Cutout : 12W = ø75mm · 24W = ø100mm · 32W = ø125mm · 42W = ø150mm
- Optics : PMMA diffuser as standard · Reflector shapes: downlight or wallwasher · Reflector finishes: titanium, polished chrome, matte silver · Beam angles: 15, 38 or 55 degrees · Honeycomb louvre diffuser available -TP(a) rated
- Dimming : Non dimmable as standard · Mains, DALI, 0-10V, DSI dimming available
- Miscellaneous : 3hr emergency available · DALI Addressable emergency available · Z10 remote control manual or advanced self-test emergency available (only on >12W) · Casambi and antimicrobial coating available
- To specify state : A range of round recessed individually adjustable LED downlight or wallwasher luminaires with 15/38/55 degree beam angles in polished chrome/titanium/matte silver finish. Superb optical performance from high performance CREE COB LED modules and Tridonic drivers delivering 12W/24W/32W/42W with an efficacy of 100 lumens per watt. – As Your Lights' Endor range.
- Warranty: 5 years | Emergency Warranty: 3 years
Size
Downloads
Delivery and Returns
Product FAQs
What's the difference between the Endor Square and the Endor Round with Rim?
Both share the same internal optics, wattage options and reflector finishes, but the Round with Rim version sits in a circular cut-out and includes a visible white bezel around the aperture. This makes it easier to install cleanly into plasterboard ceilings without specialist trims, while the square version is rimless for a more flush, integrated look.
What sizes and beam options does the Endor Round with Rim offer?
The Endor Round with Rim is available in 12W, 24W, 32W and 42W versions with cut-out diameters of 75mm, 100mm, 125mm and 150mm respectively, delivering up to 4,198 lumens at the top of the range. Beam angles of 15°, 38° and 55° are available, with reflector finishes in titanium, polished chrome, and matte silver.
What protection and emergency options are available?
Your Lights' Endor Round with Rim is IP20 rated as standard, with an IP65 version available in the 12W size for use in bathrooms, en-suites, and other damp environments. 3-hour emergency, DALI addressable emergency, and Z10 remote control self-test emergency options can be specified on wattages above 12W, allowing the same product family to cover general, accent, and life-safety applications in a single scheme.
