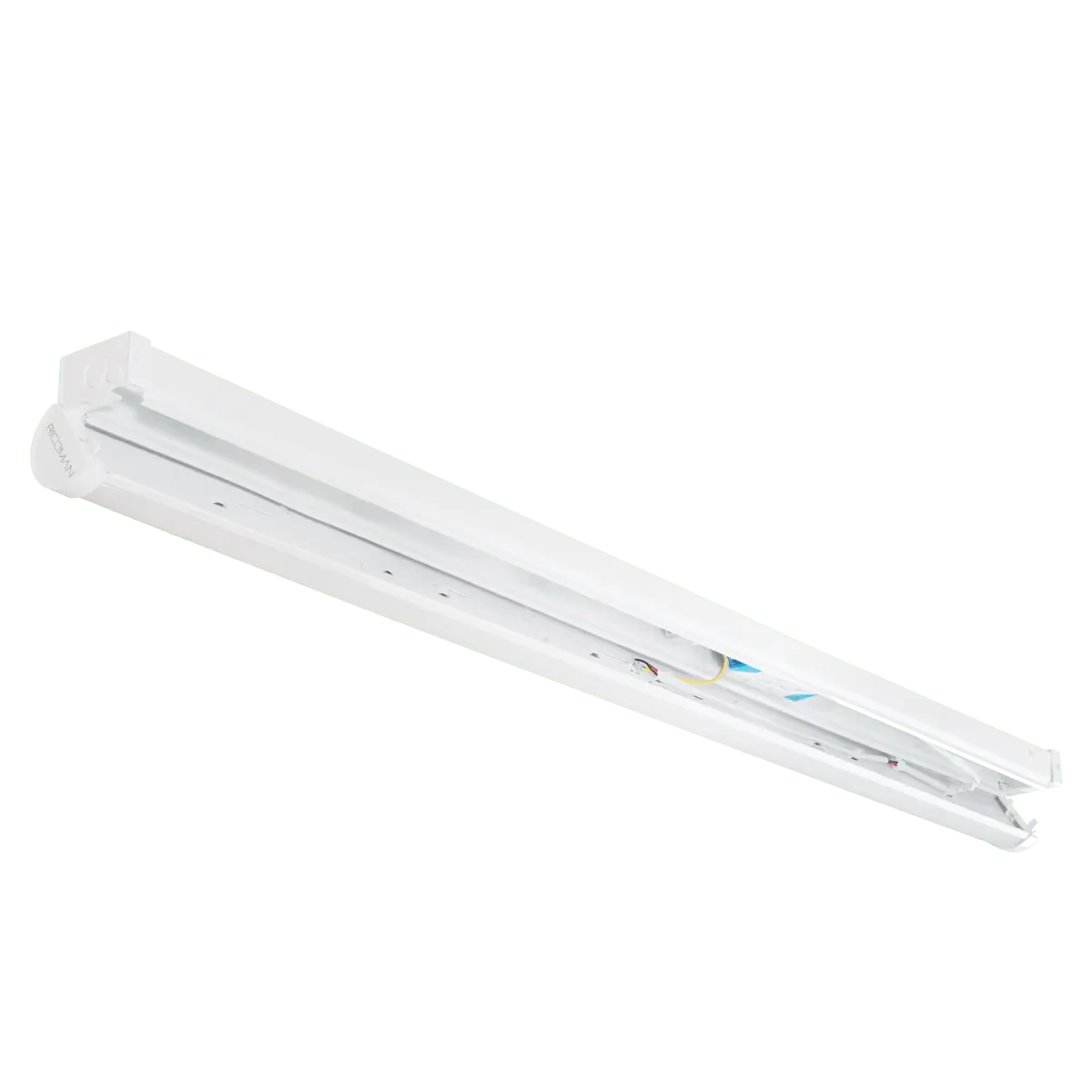

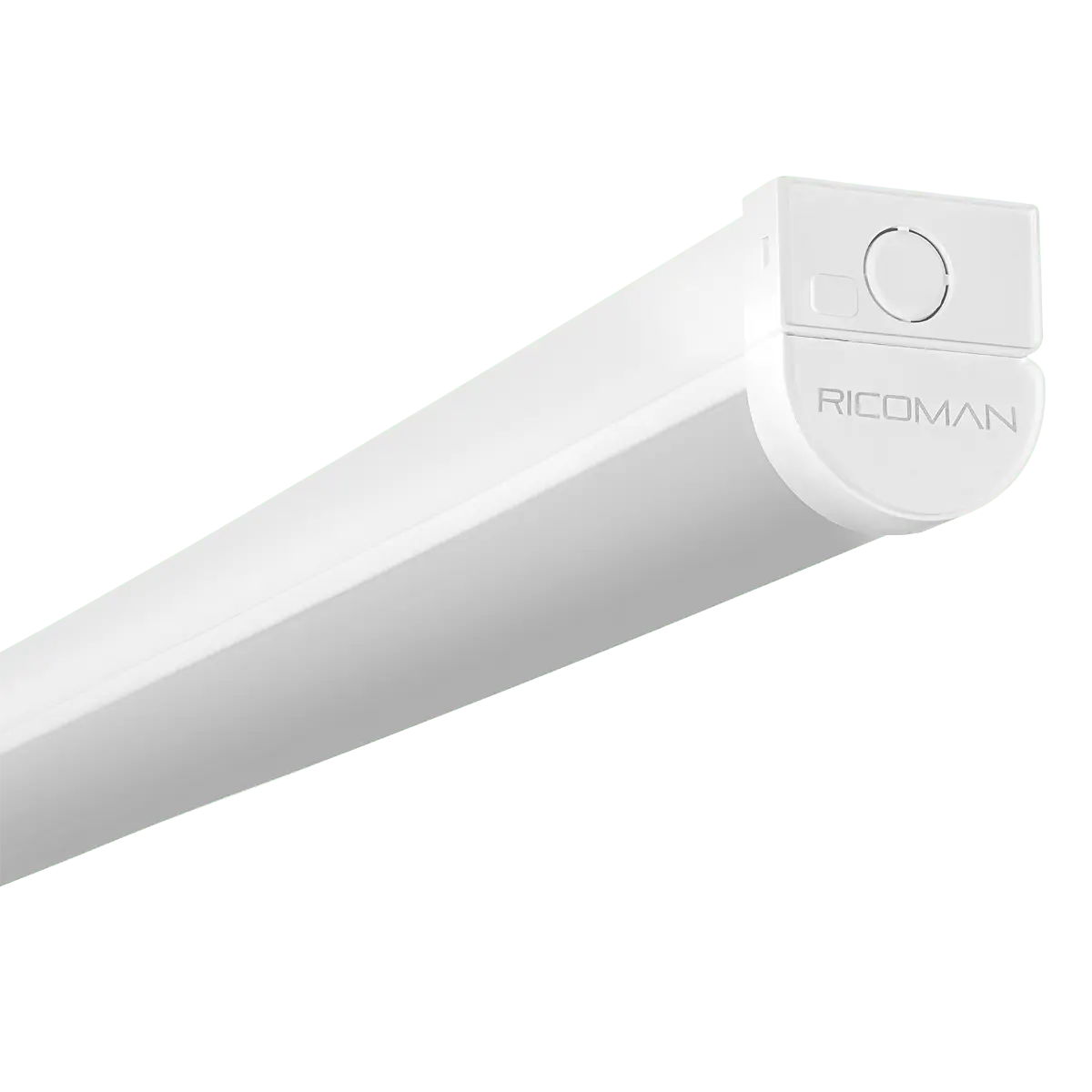

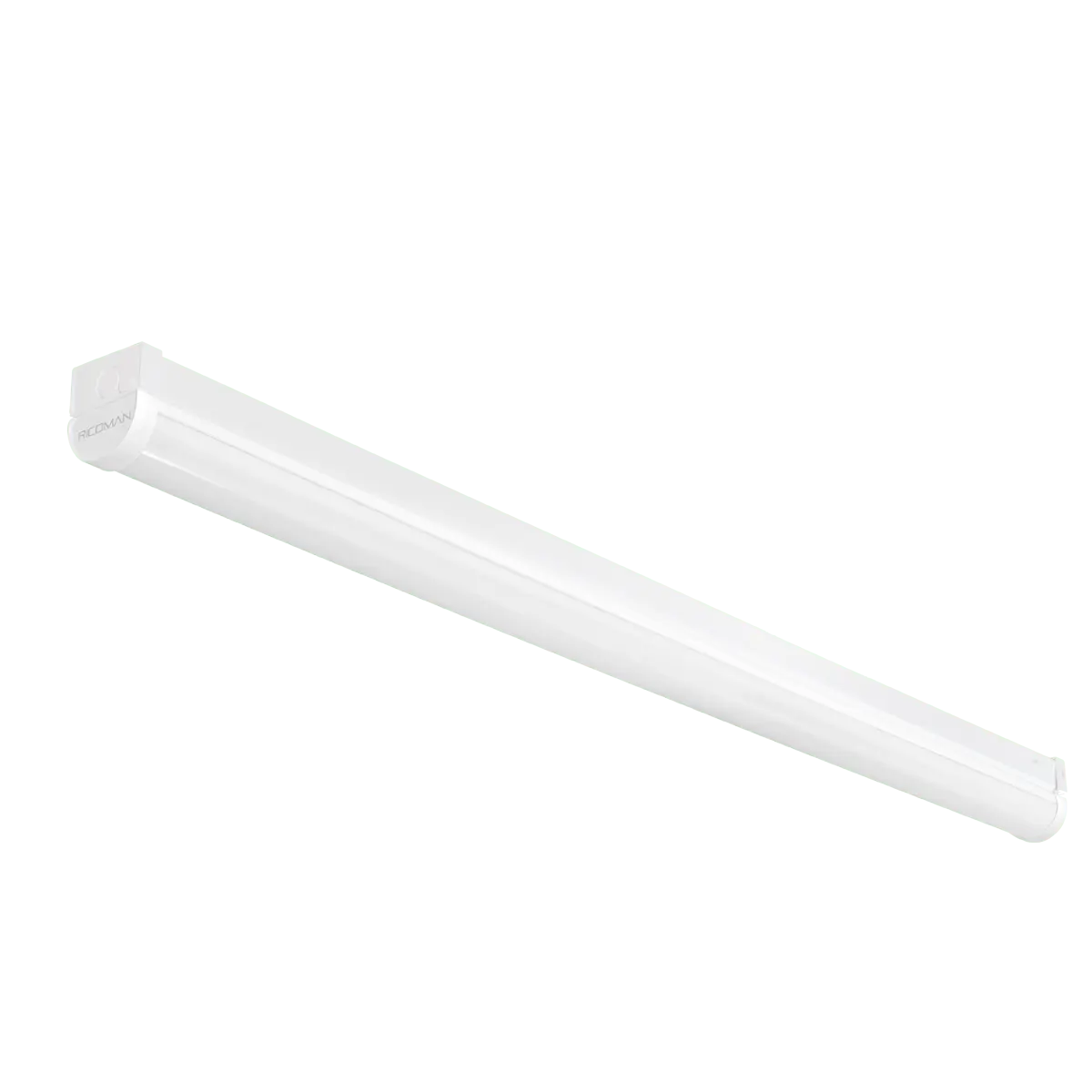

Orion Batten Light
Orion Batten Light
Regular price
£35.99 GBP
Regular price
Sale price
£35.99 GBP
Unit price
/
per
Taxes included.
Description
- Exceptional efficacy 130 lumens per watt
- Surface mounted or suspended
- Available in 1200mm | 1500mm | 1800mm
- Ability to connect to BESA boxes
- Standard or high output versions
- Dimming options available
- Integral Emergency options available: Standard | DALI | Remote control testing
- Optional integrated sensor options
For full product specification, see specification details below.
Quantity
Couldn't load pickup availability
Looking to further customise this product? Speak to a lighting designer.
- Free Shipping on orders over £100
- 30-day Return Policy

Collapsible content
Specifications
- Light Source Information : Direct light output · LED outputs available from 3250lm to 9100lm · Standard or higher wattage · Efficiency of 130lm/W · Internal Drivers supplied · >85 colour rendering index · Colour Temperature 5000K · L70 B50 = 70,000 hours | L90 B50 = 25,000 hours · Epistar LEDs with a ≤4 step Macadam ellipse tolerance
- Design : IP20 Rated · Ceiling Suspended or surface-mounted · Can be connected to a BESA box · Available in 3 linear sizes 1200mm, 1500mm and 1800mm
- Optics : Opal diffuser · 120 degree beam angle
- Installation : Push-in terminals for quick and simple installation
- Controls : PIR options · CP Sensor options · Customised solution
- Dimming : Non-dimmable as standard · DALI / 0-10V / DSI dimming available
- Integral Emergency : 3hr Emergency available · DALI addressable emergency · Z10 remote control manual or advanced self-test emergency available
- Miscellaneous : 5 year warranty
- To specify state : LED batten luminaire for surface, suspended or trunking mounting. Steel body and opal polycarbonate diffuser delivering between 3250 and 9100 lumens. Integral emergency and lighting controls options. Simple first fix mounting plate and a choice of cable entry points for flexibility and ease of installation – as Your Light's Orion Batten range
Size
Available in 1200mm | 1500mm | 1800mm
