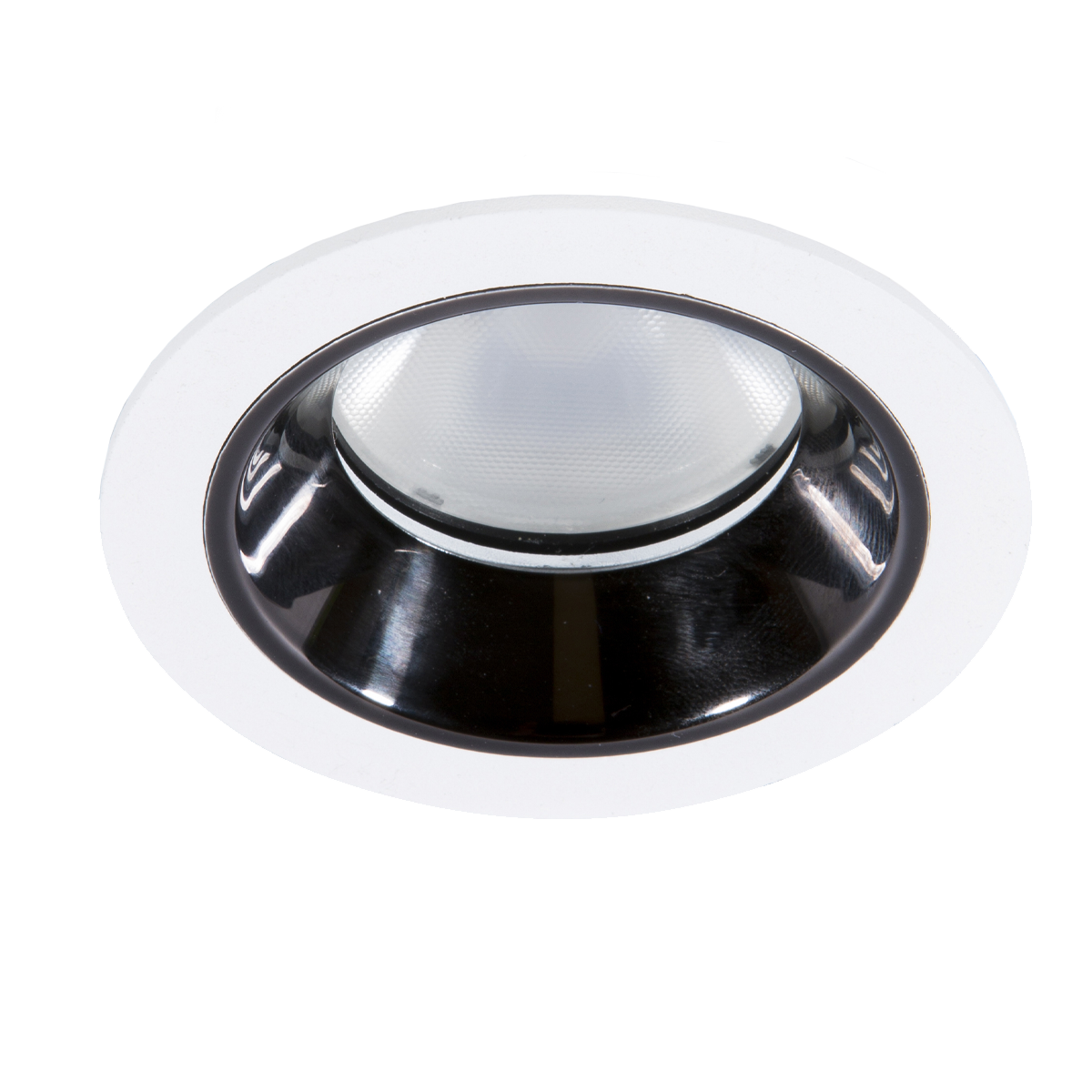

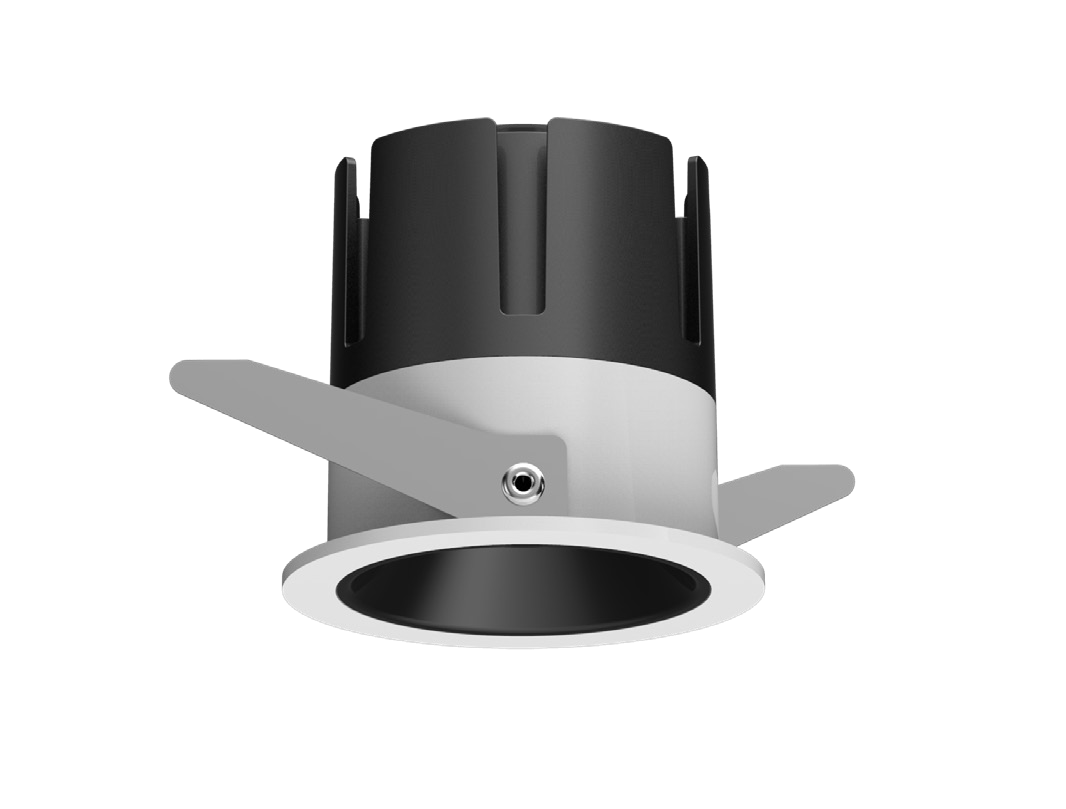

Pinnacle Spot

Pinnacle Spot

£47.99 GBP
£47.99 GBP
Sale Sold out
Taxes included.

Fixed Spotlight For High End Applications

Description

  • Narrow white bezel & Titanium reflector
  • Speciality beams
  • Dimming & emergency customisation options available

For full product specification, see specification details below.

Select Beam Angle

Looking to further customise this product? Speak to a lighting designer.

  • Free Shipping on orders over £100
  • 30-day Return Policy
View full details

Specifications
  • Light Source Information : Direct light output · 6W delivering 592lm · Efficacy of 80lm/W · Drivers supplied · >90 colour rendering index · 3000K colour temperature · L70 B50 = 100,000 hours | L90 B50 = 42,000 hours · Single bin CREE COB with a ≤3 step Macadam ellipse tolerance
  • Design : Aluminium body · IP20 rated · Recessed mounting
  • Dimensions : ø68 x 64mm
  • Cutout : ø60mm
  • Optics : PMMA opal diffuser as standard · Bezel finish: white · Reflector finish: titanium · Beam angle: 15 degrees with optional 38 or 55-degree optics · Honeycomb louvre diffuser available -TP(a) rated
  • Dimming : Non-dimmable as standard · Mains, DALI, 0-10V, DSI dimming available
  • Miscellaneous : 3hr Emergency available · 5 year warranty
  • Opal diffuser for effective glare control
  • CRI; 90Ra
  • To specify state : 6W discreet architectural LED downlight with cast aluminium body and heatsink. Narrow white bezel with a metallic black reflector. CREE COB with a <3 step Macadam ellipse tolerance – as Your Lights' Pinnacle range.
  • Single bin CREE COB with a ≤3 step Macadam ellipse tolerance
  • Discreet size (60mm cut out)
  • Honeycomb louvre diffuser available
  • L70 B50 = 100,000 hours | L90 B50 = 42,000 hours

Size

Downloads
📄 DOWNLOAD DATASHEET

Delivery and Returns
Delivery: 1 - 2 weeks depending on customisation required. Return: We have a 30-day return policy. Please see our return policy for more information.
