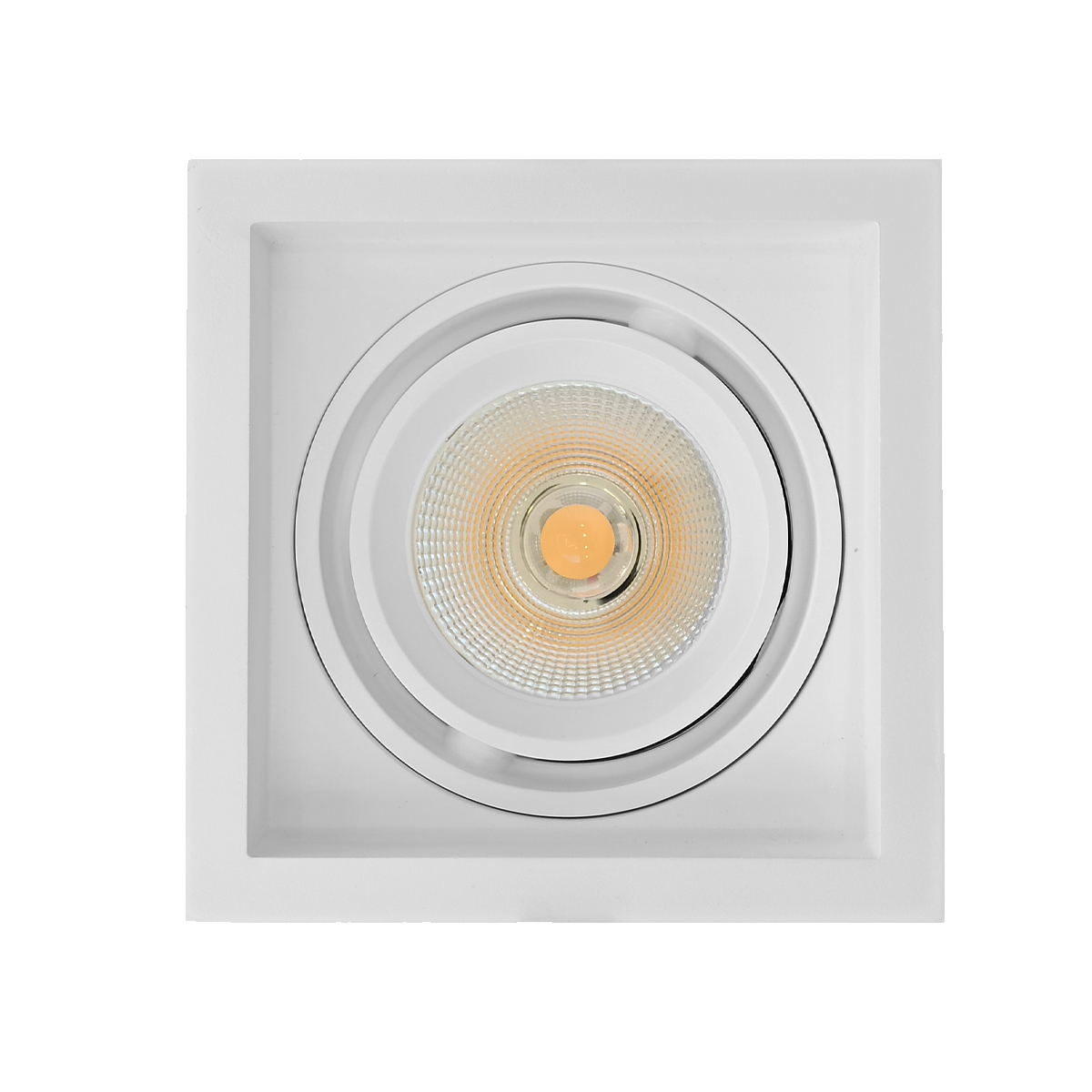

• Square recessed ceiling light with white frame on a white background

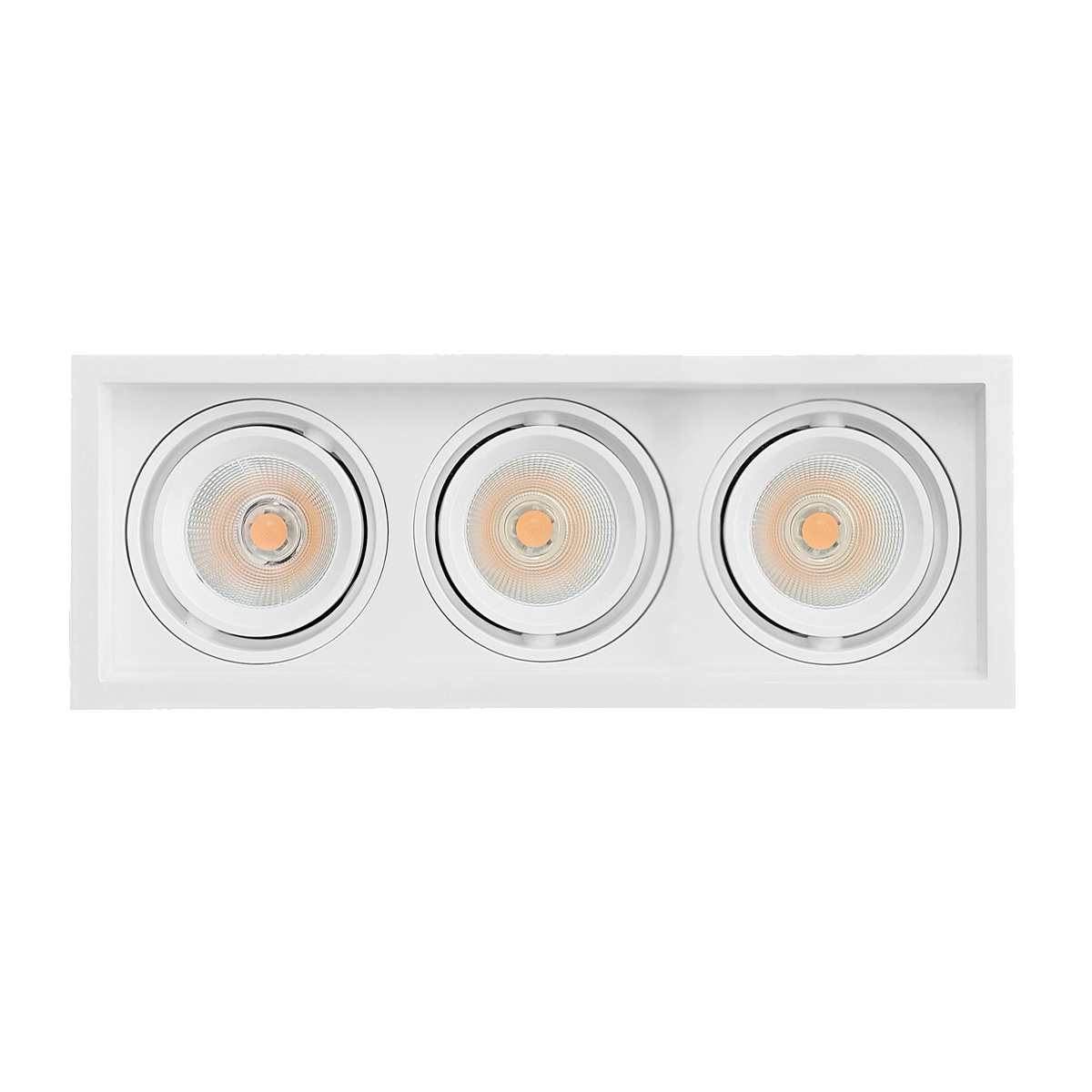

  • Three-light fixture with white frame and circular lights on a white background

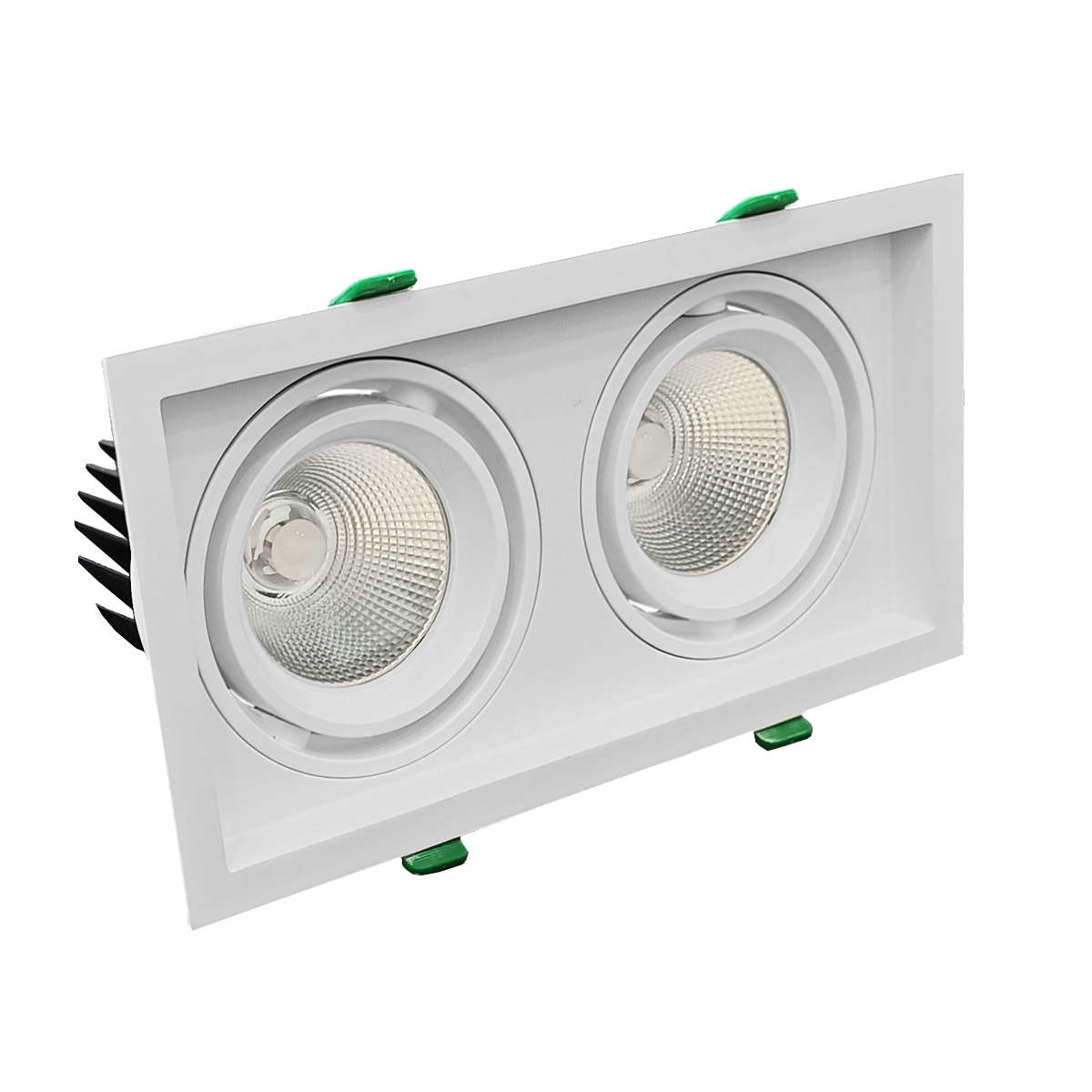

  • Double spotlight fixture on a white background
1 3

Protium Max High Output Gimbal Downlight

Protium Max High Output Gimbal Downlight

£90.99 GBP
£90.99 GBP
Sale Sold out
Taxes included.

Large Gimbal Downlight

Description

  • Low output 25W | 50W | 75W or High output 40W | 80W | 120W
  • Available in single, double or triple configurations
  • Rotates 355° tilts 0-30°

For full product specification, see specification details below.

Select Wattage
Select Colour Temperature
Select Model

Looking to further customise this product? Speak to a lighting designer.

  • Free Shipping on orders over £100
  • 30-day Return Policy
View full details

Specifications
  • Light Source Information : Direct light output · From 25W delivering 2520lm up to 120W delivering 12083lm · Efficacy of 101 lm/W · Drivers supplied · >91 colour rendering index · Colour Temperature options of 3000K and 4000K · L70 B50 = 100,000 hours | L90 B50 = 42,000 hours · Single Bin Bridgelux COB with a ≤3 step Macadam ellipse tolerance
  • Design : White frame and lamps · IP20 Rated · Ceiling recess mounted · Single, double or triple configurations · Rotates 355° tilts 0-30°
  • Cutout : Single – 160 x 160mm · Double – 315 x 160mm · Triple – 460 x 160mm
  • Optics : Acrylic diffuser as standard
  • Dimming : Non dimmable as standard · Mains, DALI, 0-10V, DSI dimming available
  • Controls : CP Sensors · Custom solutions
  • Miscellaneous : 3hr emergency available · DALI Addressable emergency available · Z10 remote control manual or advanced self-test emergency available · 5 year warranty
  • L70 B50 = 100,000 hours; L90 B50 = 42,000 hours
  • Single Bin Bridgelux COB with a ≤3 step Macadam ellipse tolerance
  • Excellent colour rendering index, CRI;90
  • Dimming types available
  • Emergency options available: Standard | DALI | Remote control testing
  • Available in smaller dimensions; Protium range
  • To specify state : Recessed extra-large LED gimbal downlight with adjustable light distribution options. Aluminium body with integral LED light engine and remote driver for flexibility and rapid installation – as Your Lights' Protium Max range.

Size

Downloads
📄 DOWNLOAD DATASHEET

Delivery and Returns
Delivery: 1 - 2 weeks depending on customisation required. Return: We have a 30-day return policy. Please see our return policy for more information.
