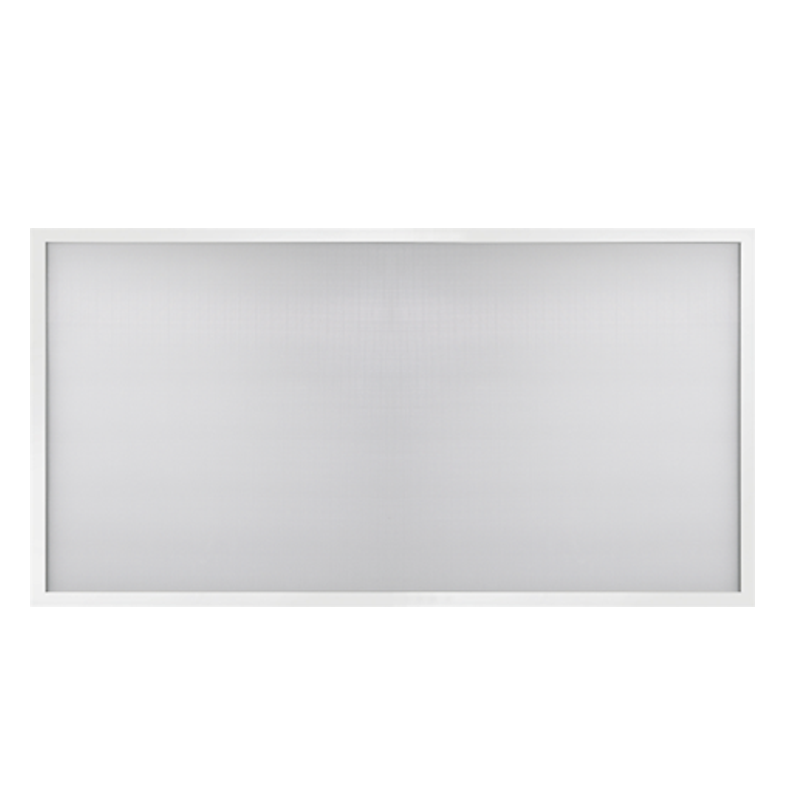

Core UGR Backlit TP(a) Panel Light 1200x600
Core UGR Backlit TP(a) Panel Light 1200x600
1200x600 LED Panel with Advanced Glare Control
Description
For full product specification, see specification details below.
Couldn't load pickup availability
Looking to further customise this product? Speak to a lighting designer.
- Free Shipping on orders over £100
- 30-day Return Policy
Collapsible content
Specifications
- Light Source Information : Direct light output · LED output of 64W delivering 6717 lm · Efficacy of 105lm/W · External drivers supplied · >83 colour rendering index · Colour Temperatures of 4000K · MTS LEDs with a ≤6 step Macadam ellipse tolerance

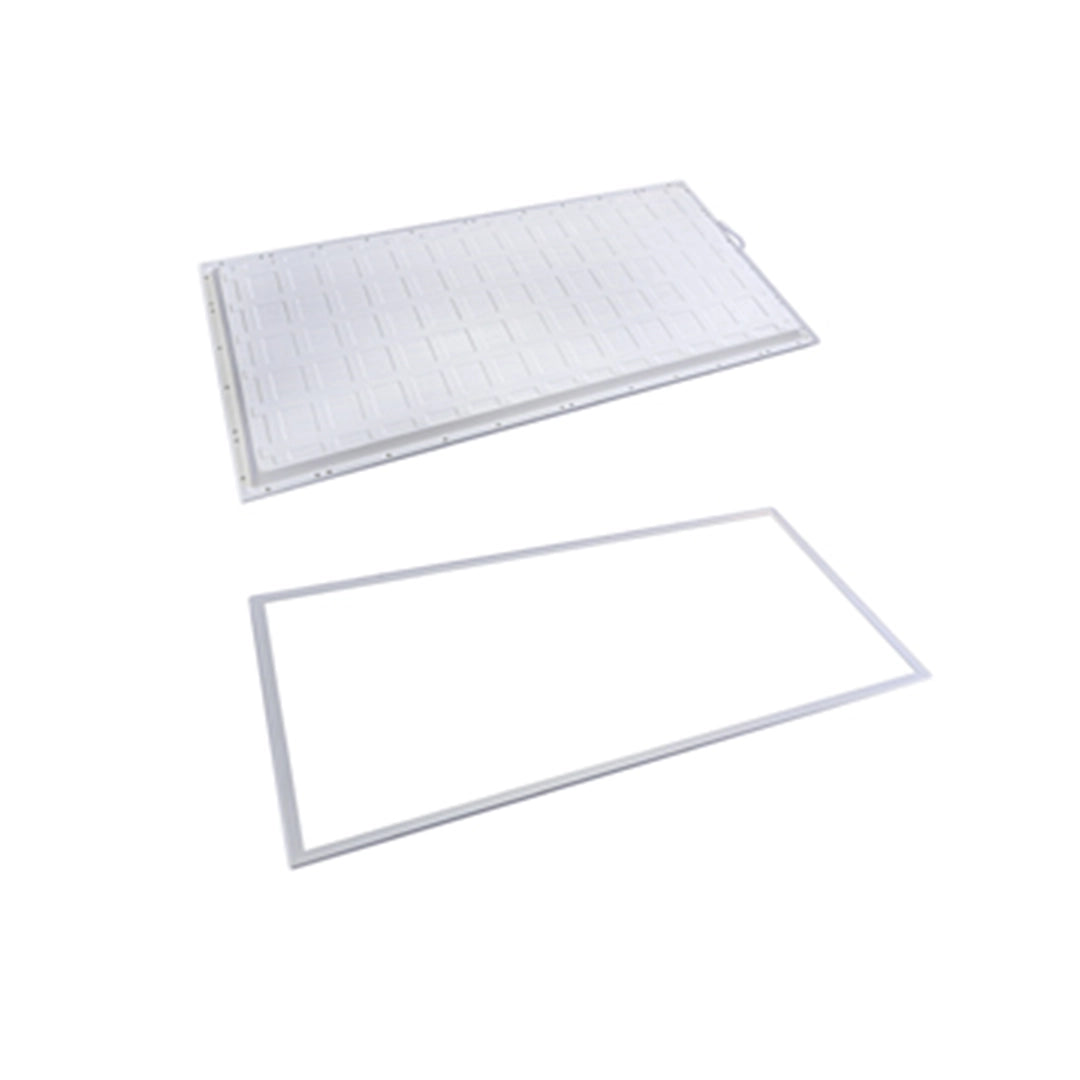

- Design : Backlit for increased uniformity · White frame · IP40 Rated · Flicker free to reduce eyestrain
- Mounting Options : Lay in grid ceiling · Suspended · Surface mounting frame · Burgess/metal pan/armstrong ceiling – Burgess clips
- Optics : Opal TP(a) rated diffuser · Designed for excellent glare control
- Dimming : Non-dimmable as standard · Mains / DALI / 0-10V / DSI dimming available
- Controls : CP Sensor · Customised solution
- Solutions for T-grid, solid, plasterboard and burgess/metal pan ceilings
- Miscellaneous : 3hr Emergency available · DALI addressable panel emergency pack · Z10 remote control manual or advanced self-test emergency available
- To specify state : Recessed LED 1200mm x 600mm backlit panel luminaire with slim line aluminium body and an opal TP(a) rated diffuser for low glare rating – as Your Lights' Core UGR Panel.
- Warranty: 5 years | Emergency Warranty: 3 years
Size
Downloads
Delivery and Returns
Product FAQs
Why choose a 1200x600 panel over a 600x600 panel?
1200x600mm panel lights deliver a higher single-fitting lumen output, so fewer panels are needed to cover the same area. This typically reduces installation time, the number of cut-outs needed in the ceiling, and the overall fitting count for a given lux level. The format also fits 1200x600 ceiling grids directly and serves as a clean LED replacement for legacy twin-tube fluorescent battens.
Where is the Core UGR 1200x600 best specified?
The Core UGR 1200x600 is well suited to open plan offices, classrooms, healthcare wards, retail spaces with screen-based tasks, and commercial fit-outs where glare control matters and the ceiling design favours the larger panel format. The backlit construction delivers uniform illumination, while the UGR-rated optic and TP(a) diffuser cover both visual comfort and fire performance.
What makes the Core UGR family different from a standard panel range?
Your Lights' Core UGR range combines three project-grade features in one product family: backlit construction for efficacy and uniformity, a TP(a) rated diffuser for fire performance, and a UGR-rated optic for glare control. By covering 600x600, 1200x300 and 1200x600 sizes, the family allows a single specification to be carried across mixed ceiling layouts within the same project.
