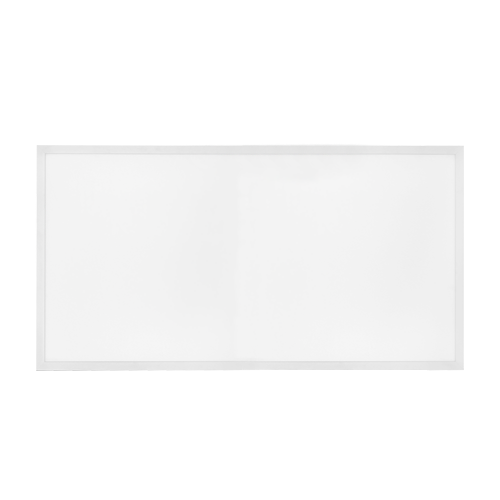

Aquavance IP66 Rated Panel 1200x600
Aquavance IP66 Rated Panel 1200x600
Engineered for demanding environments, this IP66-rated 1200x600 LED panel combines robust protection with an innovative back channel for exceptional light uniformity and longevity.
- Aluminium body finished white
- IP66 protection & flicker free for minimum eyestrain
- Other sizes also available: 600 x 600 | 1200 x 300
For full product specification, see
specification details below.
Couldn't load pickup availability
Looking to further customise this product? Speak to a lighting designer.
- Free Shipping on orders over £100
- 30-day Return Policy
Collapsible content
Specifications
- Light Source Information : Direct light output · LED output of 72W delivering up to 7200lm · Efficacy of 100lm/W · External drivers supplied · >85 colour rendering index · Colour Temperature of 5000K (4000K available as a special order) · L70 B50 = 100,000 hours | L90 B50 = 42,000 hours · Single Bin Epistar LEDs with a ≤3 step Macadam ellipse tolerance
- Design : Slim edge-lit design with white frame · IP66 Rated · Flicker free to reduce eyestrain · Innovative backchannel containing captive nuts which allow for many mounting options with RICOMAN accessories · Other sizes also available: 600 x 600 | 1200 x 300
- Mounting Options : Lay in grid ceiling · Suspended – 4 Point suspension (RE01), Y suspension (RE06) · Burgess/metal pan ceiling – Burgess Clips (RE10) · Solid ceiling – Offset Brackets (RE07), Linear Clips (RE08), Surface Frame (RE126) · Plasterboard ceiling – Z-Clips (RE02), Offset Brackets (RE07), Linear Clips (RE08), Surface Frame (RE33), 4 Point suspension (RE01)
- Optics : Opal TPa diffuser
- Dimming : Non-dimmable as standard · Mains / DALI/ 0-10V / DSI dimming available
- Controls : CP Sensor · Customised solution
- Miscellaneous : 3hr emergency available · DALI Addressable emergency available · Z10 remote control manual or advanced self-test emergency available · Antimicrobial coating available
- A range of accessories to cover almost any installation scenario
- To specify state: LED 1200mm x 600mm IP66 panel luminaire with an innovative back channel containing captive nuts which allow for many mounting options with Your Lights accessories including SAS Ceiling, Burgess ceiling, T grid ceiling, plasterboard ceiling and solid ceiling types. Features an opal diffuser for general, circulation and feature areas. – as Your Lights' Aquavance Panel Range
- Warranty: 5 years | Emergency Warranty: 3 years
Size
Downloads
Delivery and Returns
Product FAQs
Where is a 1200x600 LED panel light typically specified?
1200x600mm panel lights are designed for installation in 1200x600 ceiling grids and as direct replacements for legacy twin-tube fluorescent battens in commercial and industrial interiors. The larger format delivers a higher single-fitting lumen output, allowing fewer panels to cover the same area compared to a 600x600 grid layout. Common applications include open plan offices, warehouses, large retail floors, schools, healthcare facilities and circulation spaces.
What makes the Aquavance IP66 different from a standard 1200x600 panel
Standard 1200x600 office panels are typically IP20 rated, which offers no protection against moisture, dust or contaminants. The Aquavance IP66 is fully protected against dust ingress and against powerful jets of water from any direction, making it the right specification for environments where a standard panel would not be appropriate. Ricoman positions the range for medical applications and high humidity areas, including hospitals, dental practices, laboratories, commercial kitchens, food production zones, and clean rooms.
What emergency and finishing options are available for the 1200x600 Aquavance IP66?
Your Lights' Aquavance IP66 1200x600 is available with a 3-hour emergency option, DALI addressable emergency, and Z10 remote control manual or advanced self-test emergency, allowing the same panel to be specified for general use or for life-safety applications under BS 5266-1. An antimicrobial coating is also available, which is particularly relevant for clinical and food preparation environments. The panel uses a TP(a) rated diffuser, a slim edge-lit design with white frame, and comes with a 5 year warranty.
