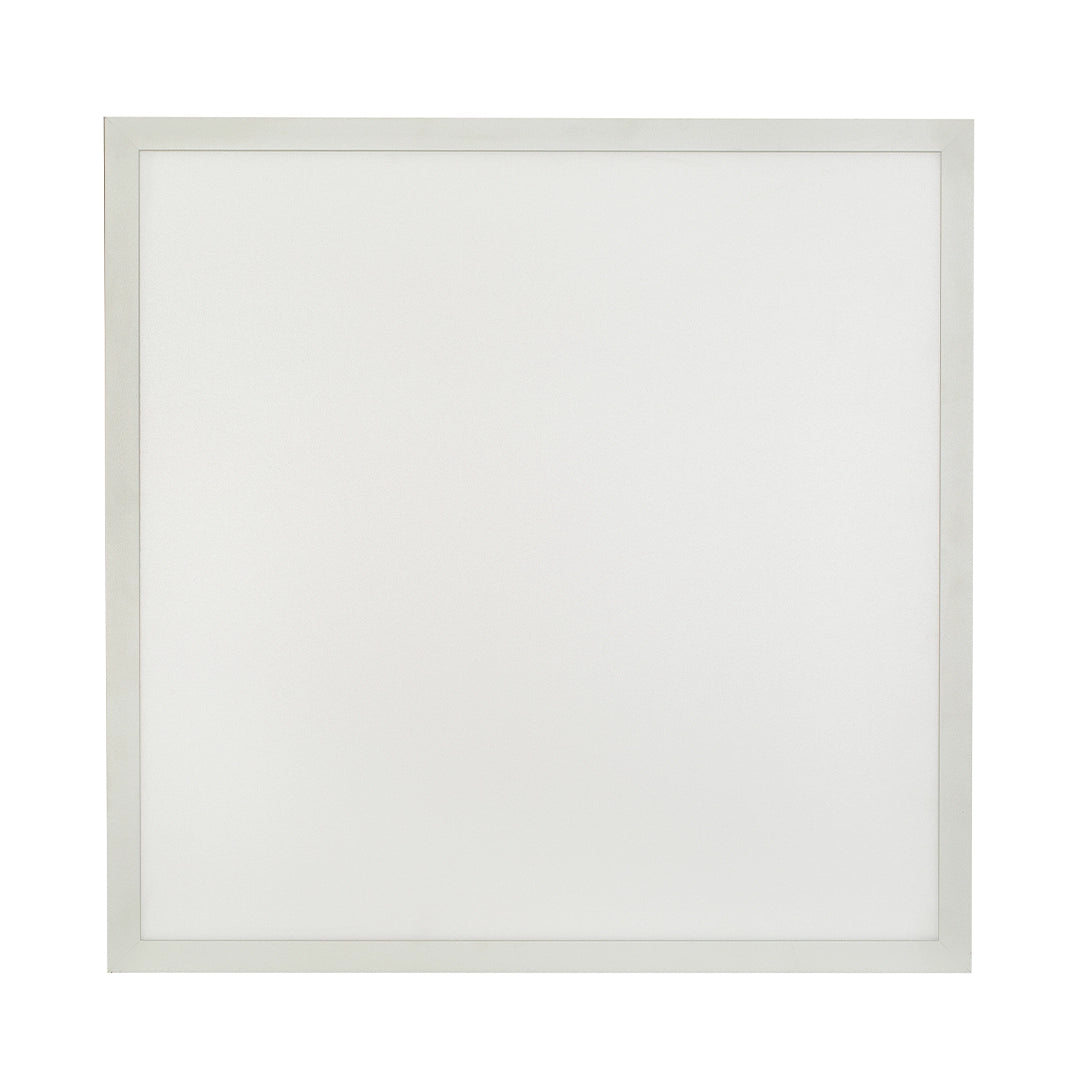

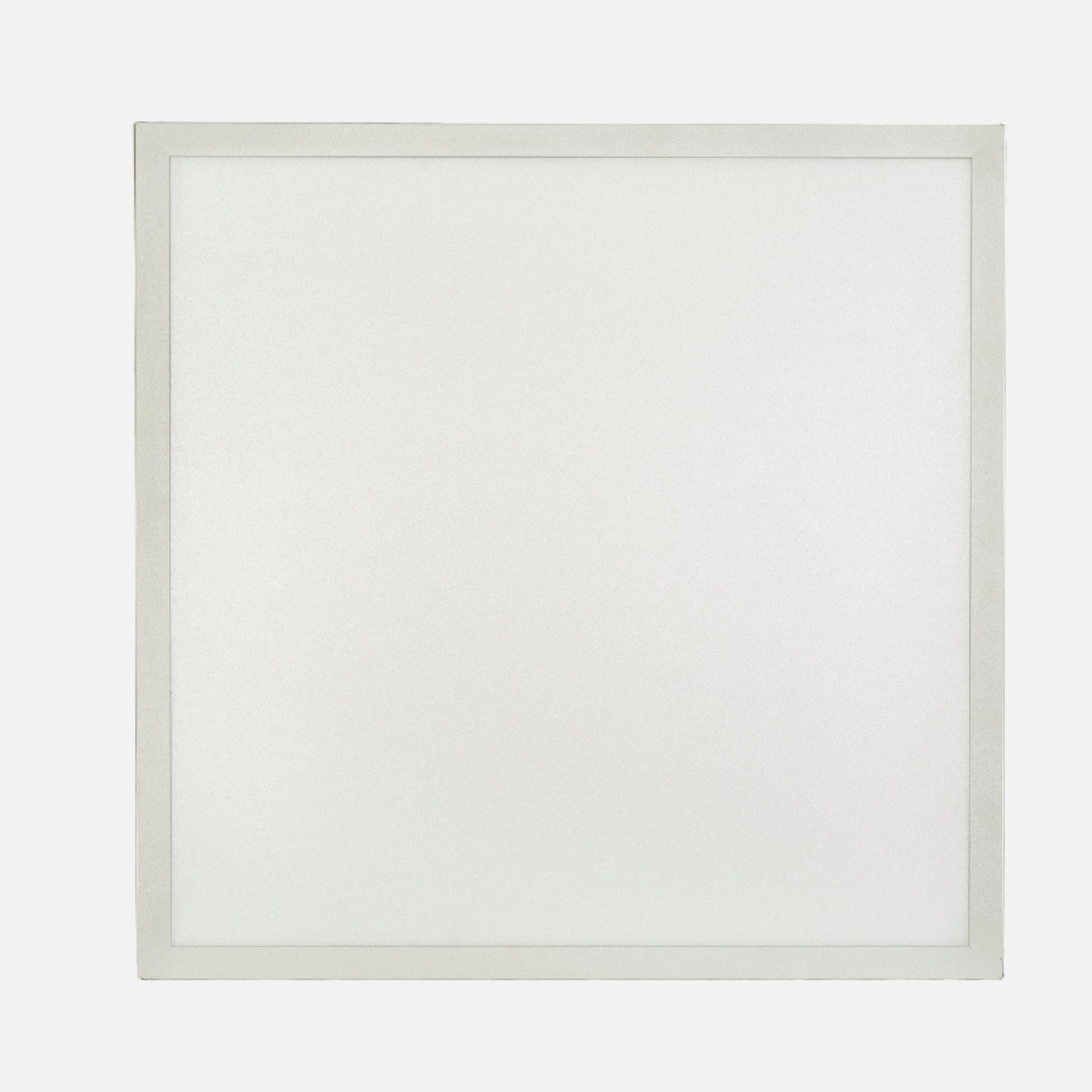

Aquavance IP66 Rated Panel 600x600

£156.99 GBP

Sale Sold out

Taxes included.

600x600 Panel

Description

IP66 rated for maximum protection against dust and humidity
Customise this Product: Dimming & Emergency options available
Other sizes also available: 1200 x 300 | 1200 x 600

For full product specification, see specification details below.

Select Wattage 36W 48W

Select Colour Temperature 4000K 5000K

Looking to further customise this product? Speak to a lighting designer.

Free Shipping on orders over £100
30-day Return Policy

View full details

Specifications

Light Source Information : Direct light output · LED output of 36W or 48W delivering up to 5042lm · Efficacy of 100lm/W · External drivers supplied · >85 colour rendering index · Colour Temperature of 4000K · L70 B50 = 100,000 hours | L90 B50 = 42,000 hours · Single Bin Epistar LEDs with a ≤3 step Macadam ellipse tolerance
Design : Slim edge-lit design with white frame · IP66 Rated · Flicker free to reduce eyestrain · Innovative backchannel containing captive nuts which allow for many mounting options with RICOMAN accessories · Other sizes also available: 1200 x 300 | 1200 x 600
Mounting Options : Lay in grid ceiling · Suspended – 4 Point suspension (RE01), Y suspension (RE06) · Burgess/metal pan ceiling – Burgess Clips (RE10) · Solid ceiling – Offset Brackets (RE07), Linear Clips (RE08), Surface Frame (RE60) · Plasterboard ceiling – Z-Clips (RE02), Offset Brackets (RE07), Linear Clips (RE08), Surface Frame (RE60, RE123, RE126), 4 Point suspension (RE01)
Optics : Opal TPa diffuser
Dimming : Non-dimmable as standard · Mains / DALI/ 0-10V / dimming available
Controls : CP Sensor · Customised solution
Miscellaneous : 3hr emergency available · DALI Addressable emergency available · Z10 remote control manual or advanced self-test emergency available · Antimicrobial coating available · 5 year warranty
To specify state : LED 600mm x 600mm IP66 panel luminaire with an innovative back channel containing captive nuts which allow for many mounting options with Your Lights accessories including SAS Ceiling, Burgess ceiling, T grid ceiling, plasterboard ceiling and solid ceiling types. Features an opal diffuser for general, circulation and feature areas. – as Your Lights' Aquavance Panel Range

Size

Downloads

📄 DOWNLOAD DATASHEET

Delivery and Returns

Delivery: 1 - 2 weeks depending on customisation required. Return: We have a 30-day return policy. Please see our return policy for more information.
