MAIN PRODUCT LIQUID - ORIGINAL

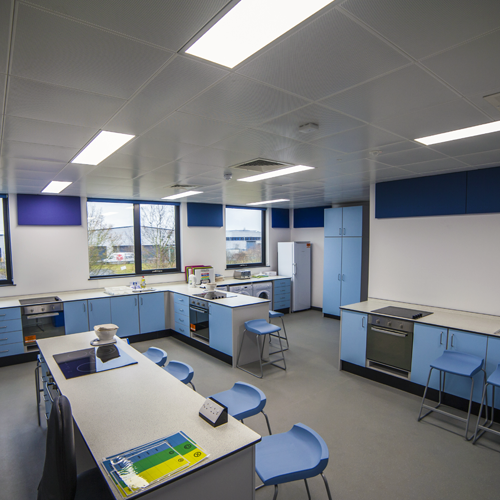

  • Modern kitchen classroom with LED Panels
1 2

Your Lights

Aquavance IP66

Aquavance IP66

£0.00 GBP
£0.00 GBP
Sale Sold out
Taxes included.

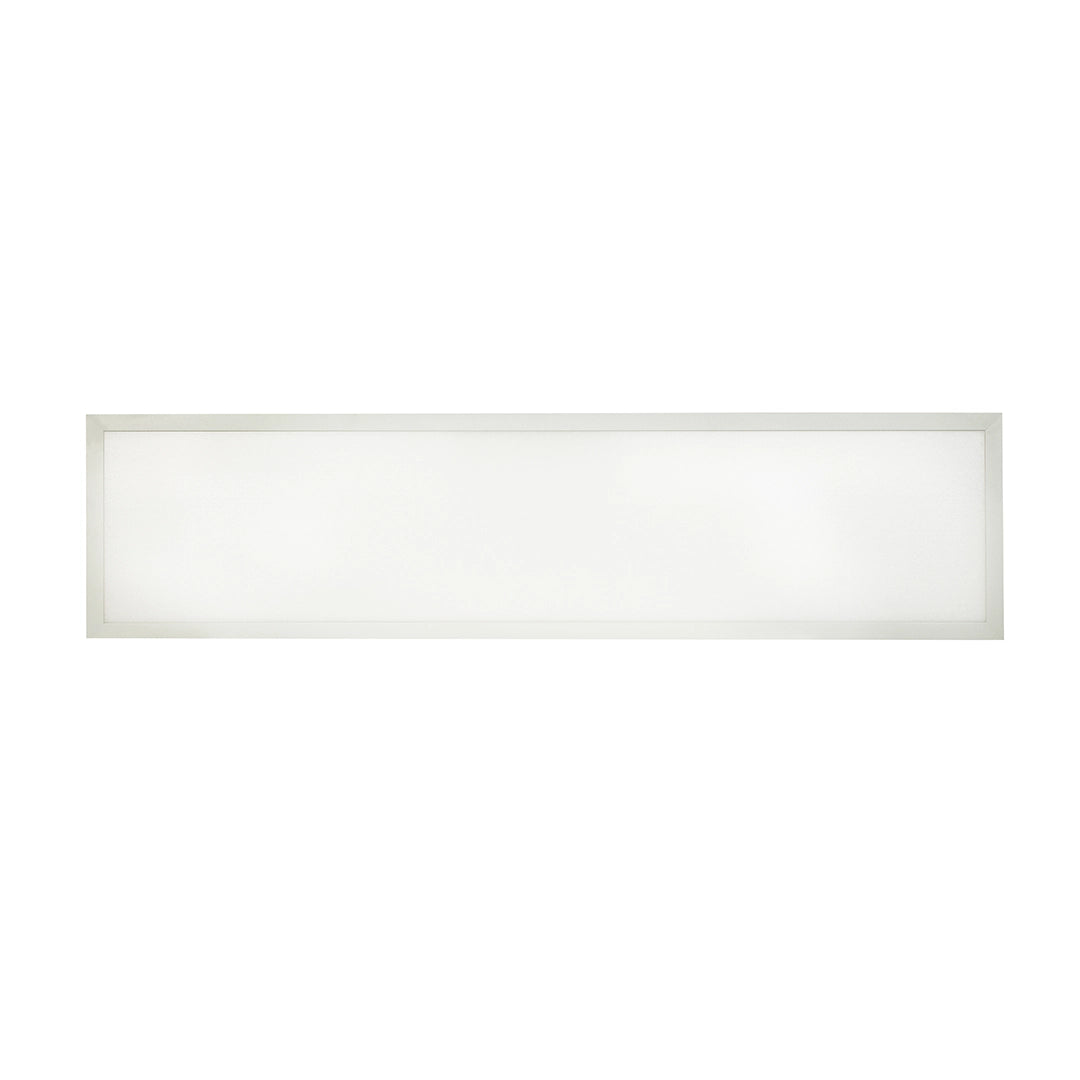

IP66 Rated 1200x300 LED Panel With Innovative Back Channel

Description

  • A range of accessories to cover almost any installation scenario
  • IP66 rated for maximum protection against dust and humidity
  • 36W or 48W with an efficacy of 100 Lm/W
  • Dimming options available
  • Aluminium body finished white
  • Slim body profile
  • Flicker free for minimum eyestrain
  • Emergency options available: Standard | DALI | Remote control testing
  • Other sizes also available: 600 x 600 | 1200 x 600
Select Colour Temperature
Select Wattage
  • Free Shipping on orders over £100
  • Delivery in 1-2 weeks
  • 30-day Return Policy

Customise this product

View full details

Specifications
  • Light Source Information : Direct light output · LED output of 36W or 48W delivering up to 5042lm · Efficacy of 100lm/W · External drivers supplied · >85 colour rendering index · Colour Temperatures of 5000K (4000K as a special order) · L70 B50 = 100,000 hours | L90 B50 = 42,000 hours · Single Bin Epistar LEDs with a ≤3 step Macadam ellipse tolerance
  • Design : Slim edge-lit design with white frame · IP66 Rated · Flicker free to reduce eyestrain · Innovative backchannel containing captive nuts which allow for many mounting options with RICOMAN accessories · Other sizes also available: 600 x 600 | 1200 x 600
  • Mounting Options : Lay in grid ceiling · Suspended – 4 Point suspension (RE01), Y suspension (RE06) · Burgess/metal pan ceiling – Burgess Clips (RE10) · Solid ceiling – Offset Brackets (RE07), Linear Clips (RE08), Surface Frame (RE123) · Plasterboard ceiling – Z-Clips (RE02), Offset Brackets (RE07), Linear Clips (RE08), Surface Frame (RE123), 4 Point suspension (RE01)
  • Optics : Opal TPa diffuser
  • Dimming : Non-dimmable as standard · Mains / DALI/ 0-10V / DSI dimming available
  • Controls : CP Sensor · Customised solution
  • Miscellaneous : 3hr emergency available · DALI Addressable emergency available · Z10 remote control manual or advanced self-test emergency available · Antimicrobial coating available · 5 year warranty
  • To specify state: LED 1200mm x 300mm IP66 panel luminaire with an innovative back channel containing captive nuts which allow for many mounting options with Your Lights' accessories including SAS Ceiling, Burgess ceiling, T grid ceiling, plasterboard ceiling and solid ceiling types. Features an opal diffuser for general, circulation and feature areas. – as Your Lights' Aquavance Panel Range

Size

Downloads

Delivery and Returns

Choose your colour temperature

Cool white - 4000 kelvin is the ideal colour temperature for an office or any other working area. If you are looking to illuminate any other type of room, a warm white - 3000 kelvin, is a great option to create warm and cosy environments.

Have a question?
